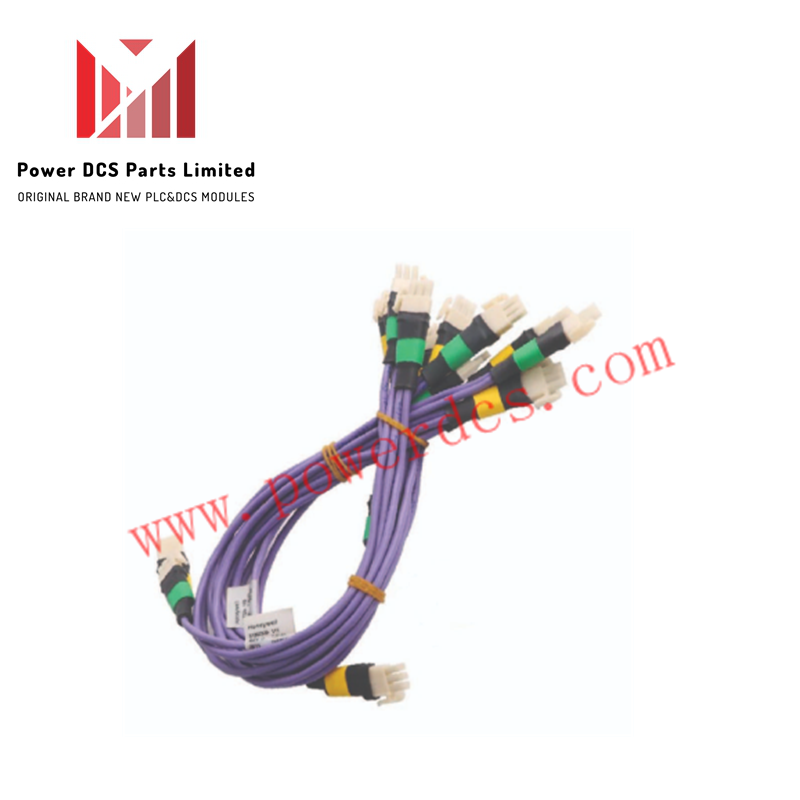

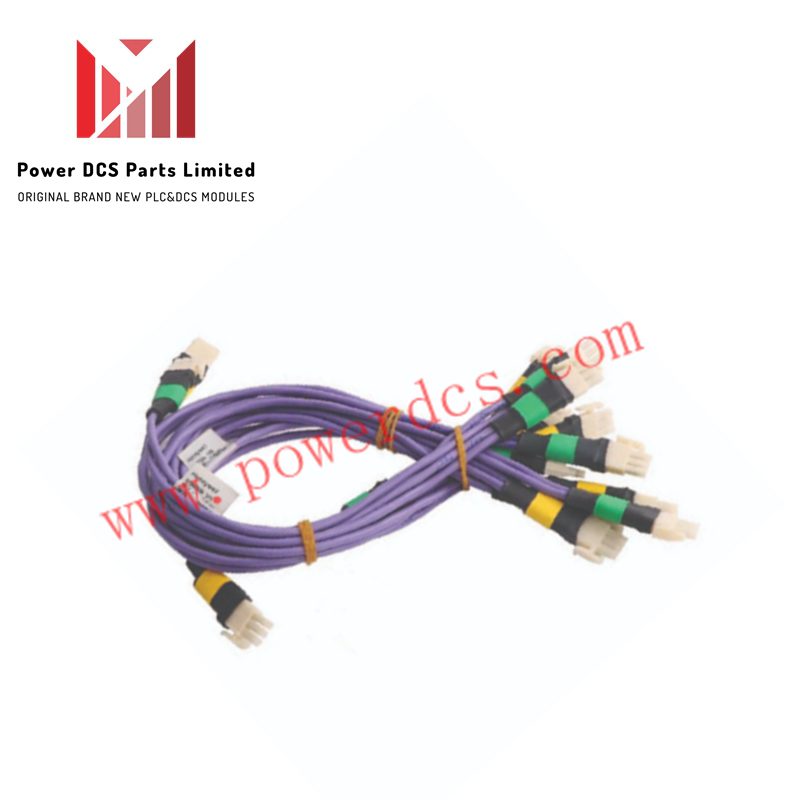

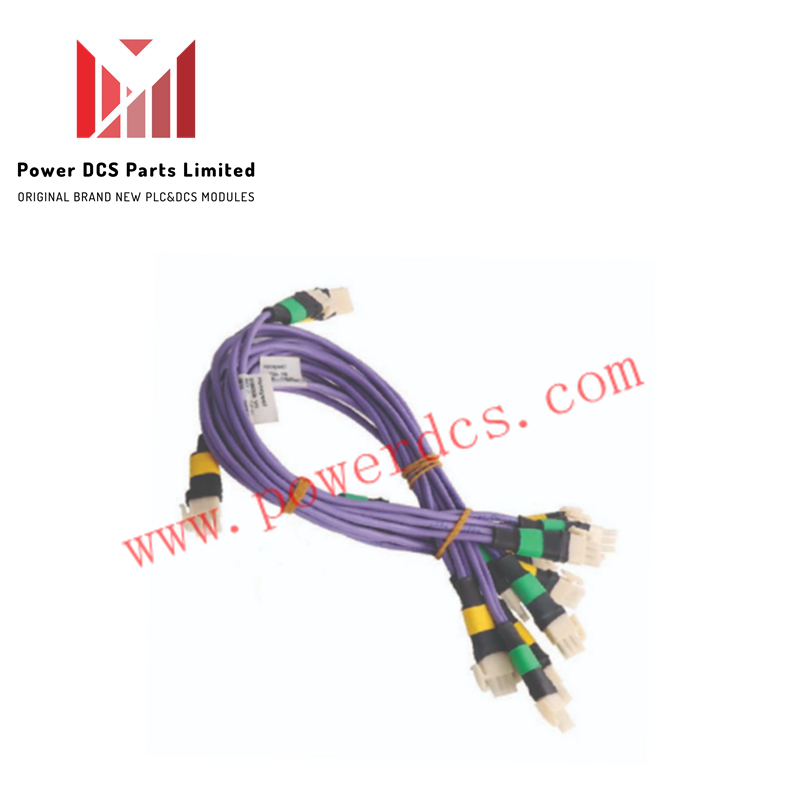

51202329-616 Honeywell I/O Link Violet Header Cable
Specifications
Manufacturer: Honeywell
Product No.: 51202329-616
Condition: 10 Items in Stock
Product Type: I/O Link Cables
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
The Honeywell 51202329-616, also cataloged as the 51202329-616 I/O Link Violet Header Cable, operates as a dedicated hardware component for signal routing and channel interconnection within distributed control system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-616 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.2 kg (estimated) |
| Dimensions | Standard industrial cabinet length |
| Operating Temp | -20 deg C to 80 deg C |
| Power Consumption | Passive cabling component |
| Voltage Rating | 24 VDC |
| Insulation Resistance | Greater than 100 MOhm/km |
| Number of Channels | 3 |
| Connector Type | M12 connectors |
DCS Process Control and Signal Communication Interfaces
The assembly integrates within Honeywell process automation architectures, maintaining rigorous channel-to-channel isolation and cold junction compensation (CJC) path integrity across distributed nodes. Standard configuration supports 4-20 mA HART loop protocol environments alongside high-speed digital communication layers. The violet PVC jacketing and integrated shielding minimize electromagnetic interference (EMI) across noisy industrial floors, ensuring deterministic bus operation and low-latency packet transmission between field devices and master controller cards.
Frequently Asked Questions
Q: Does the 51202329-616 support hot-swapping on active controller networks?
A: Cabling adjustments must be performed with upstream loop power isolated to prevent communication dropouts or transient voltage spikes on connected control nodes.
Q: What is the minimum bend radius specified for this cable assembly?
A: The physical design permits a minimum bend radius of 20 mm during installation within high-density industrial cabinets.
Field Installation Guidelines
- Verify that system power and communication loops are de-energized prior to routing and connecting the cable between controller nodes and interface modules.
- Route the cable along designated internal cabinet wireways, maintaining physical separation from high-voltage AC power lines to prevent induced noise coupling and respecting the 20 mm minimum bend radius limit.
- Secure connector plugs firmly to terminal interfaces, ensuring locking mechanisms or M12 threaded collars are fully engaged to withstand industrial vibration environments.
