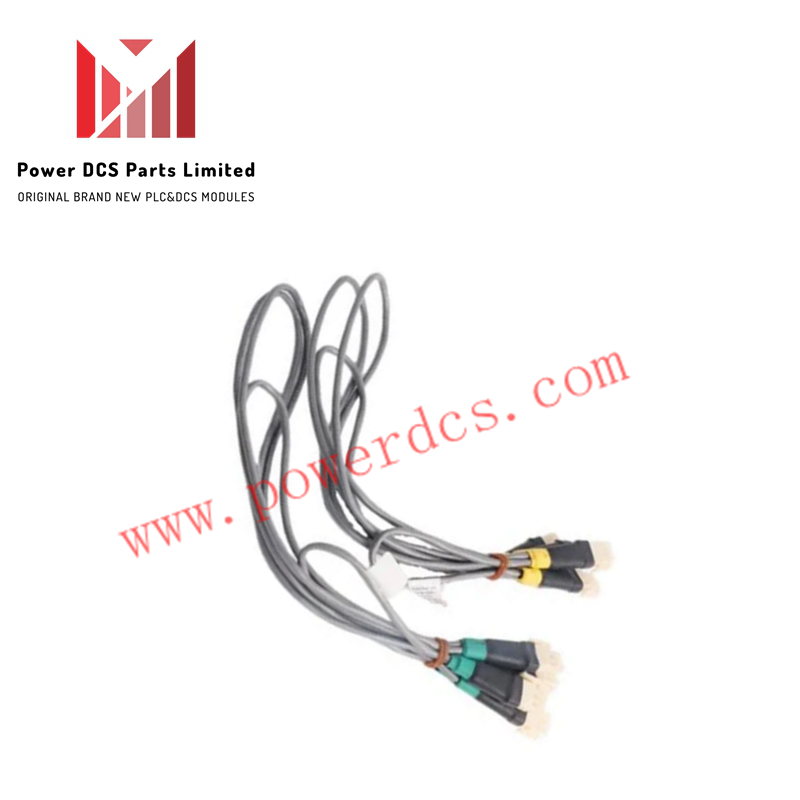

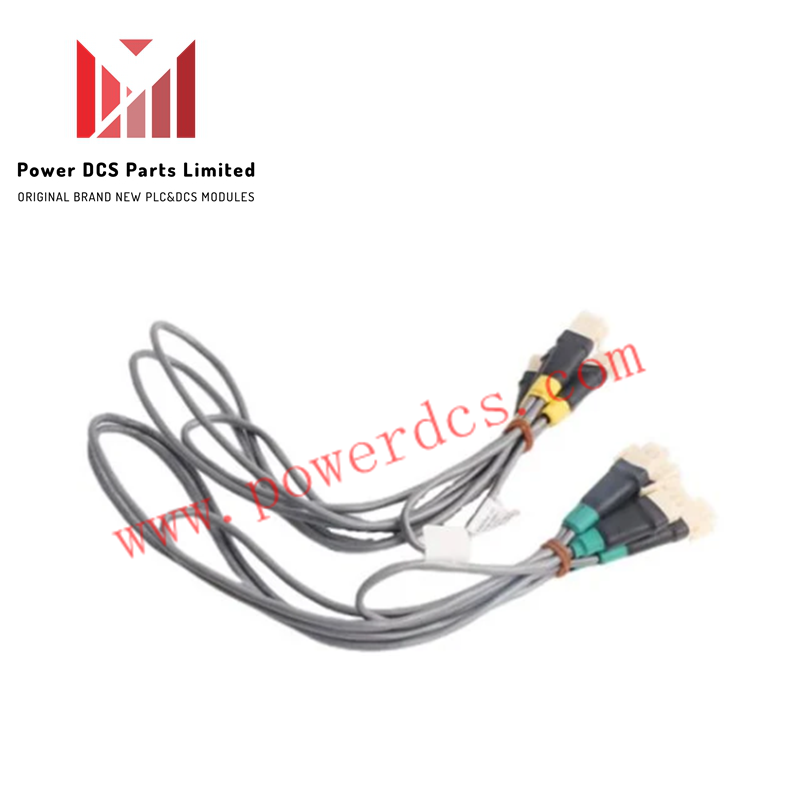

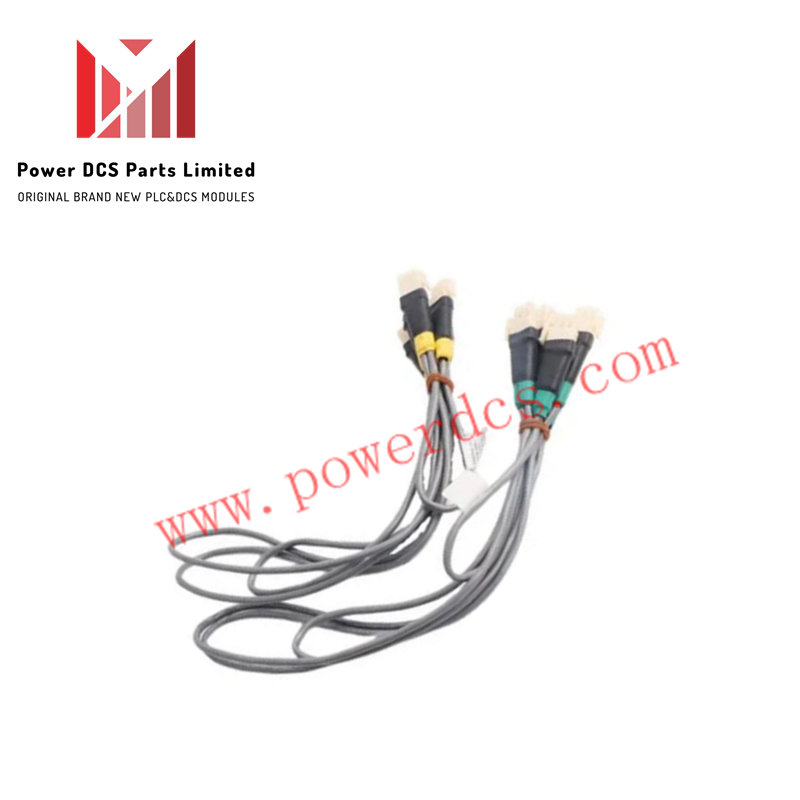

51202329-802 | Honeywell | I/O Link Cable

Configured for power distribution and link protection interconnection in process automation networks, the Honeywell 51202329-802 (51202329-802 Cable Set PM Power with Link Protect REV C) provides direct physical signal transmission and power routing across control cabinet nodes.

Hardware Specifications

Honeywell DCS Process Control and Signal Communication

The assembly integrates within Honeywell process automation architecture, maintaining strict channel-to-channel isolation and cold junction compensation (CJC) path integrity across distributed nodes. Standard configuration supports 4-20 mA HART loop protocol environments alongside power distribution layers. The physical wiring architecture ensures deterministic bus operation and low-latency power delivery between module power supplies and link protector hardware.

Frequently Asked Questions

Q: Does the 51202329-802 support hot-swapping on active controller networks?

A: Cabling adjustments must be performed with upstream loop power and power distribution buses isolated to prevent electrical arcing or transient voltage spikes on connected control nodes.

Q: Is this cable set compatible with link protection module assemblies?

A: Yes, this specific variant is engineered explicitly to connect PM power distribution systems featuring inline link protection (REV C).

Field Installation Guidelines

1. Verify that system power supplies and distribution loops are de-energized prior to routing and connecting the cable set between controller nodes and power assemblies.
2. Route the cable along designated internal cabinet wireways, maintaining physical separation from high-voltage AC power lines to prevent induced noise coupling.
3. Secure connector plugs firmly to terminal interfaces, ensuring locking mechanisms or retention screws are fully engaged to withstand industrial vibration environments.
