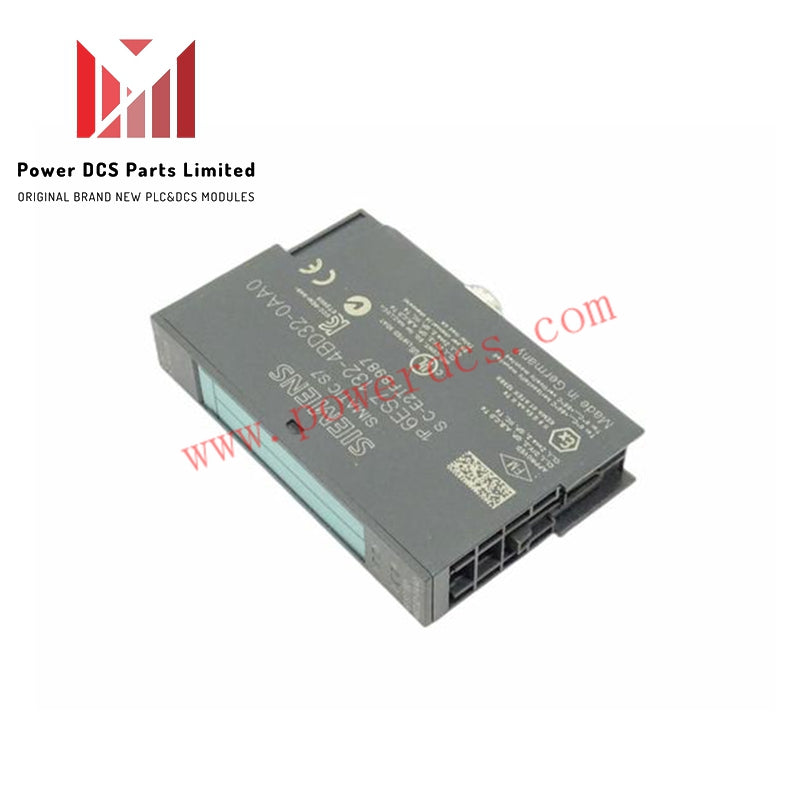

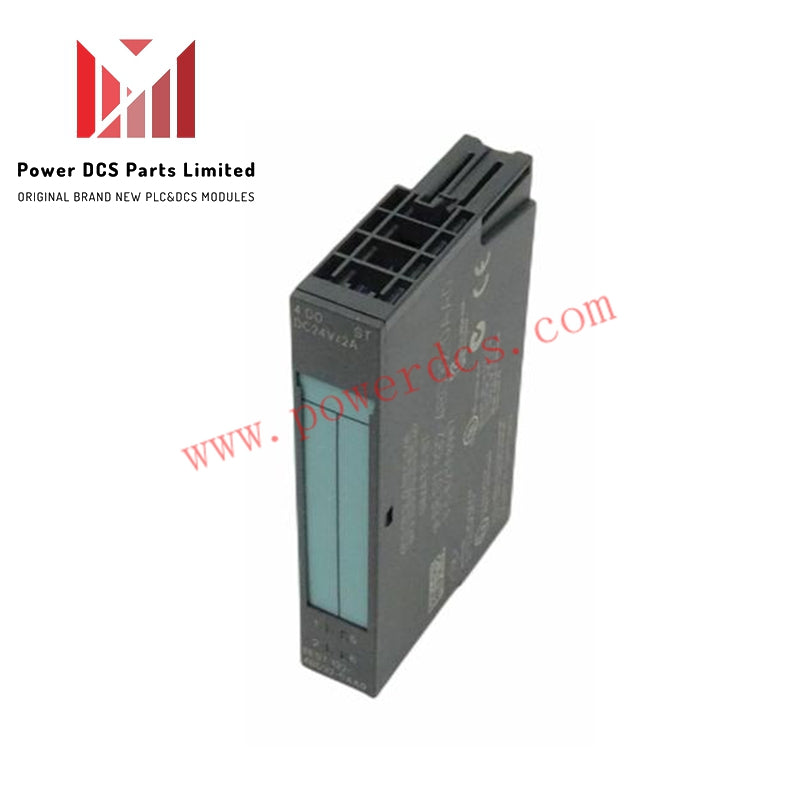

6ES7132-4BD32-0AA0 Digital Electronic Module Siemens

Description

6ES7132-4BD32-0AA0 is a Siemens digital electronic module designed for high-performance industrial automation systems, offering precise control and reliable operation.

Specifications

• Module-Specific Data

• Supports isochronous operation: Yes

• Number of outputs: 4

• Cable Length

• Unshielded: Max. 600 m

• Shielded: Max. 1000 m

• Parameter Length

• 1 byte

• Address Space

• 1 byte

• Address space (packed): 4 bits

• Voltages, Currents, Potentials

• Rated load voltage L+ (from power module): 24 V DC

• Polarity reversal: Yes

• Total current of the outputs (per module): 4 A

• Electrical Isolation

• Between the channels: No

• Between the channels and backplane bus: Yes

• Permissible Potential Difference

• Between different circuits: 75 V DC / 60 V AC

• Isolation tested: 500 V DC

• Current Consumption

• From the rated load voltage L+ (no load): Max. 10 mA per channel

• Power Loss of the Module

• Typically: 1.6 W

Dimensions

• Width: 15 mm

• Height: 81 mm

• Depth: 52 mm

Weight

• Weight: Approx. 40 g
