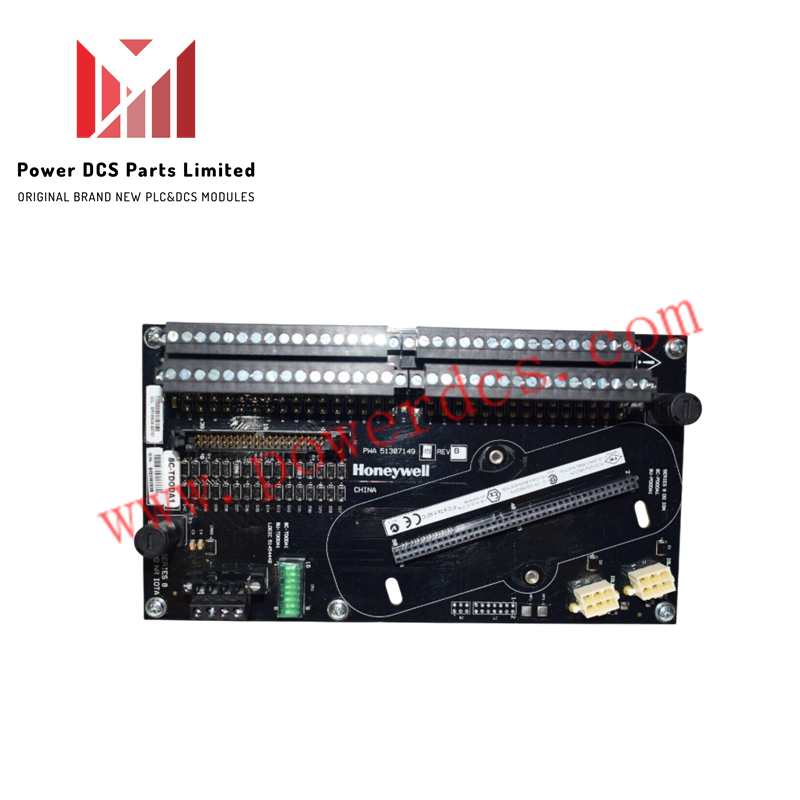

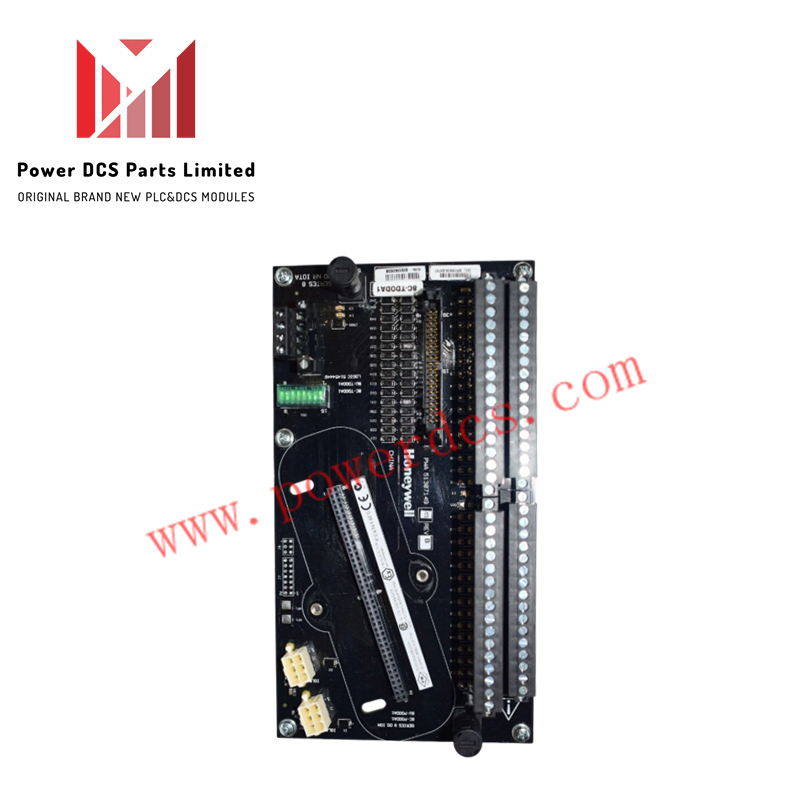

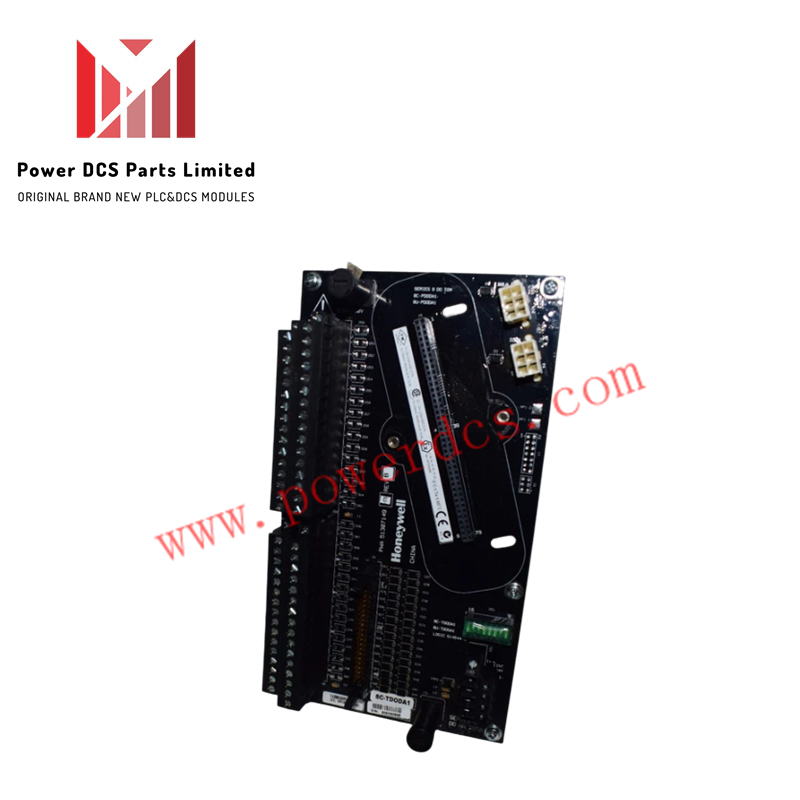

8C-TDODA1 51307149-175 Honeywell Digital Output Connection Module

The Honeywell 8C-TDODA1 51307149-175, also cataloged as the 8C-TDODA1 Digital Output Connection Module, operates as a dedicated hardware component for discrete signal switching and actuator control within Honeywell Experion PKS Series 8 C300 controller platforms.

Hardware Specifications

Channel-to-Channel Isolation and Output Signal Conditioning

The Honeywell 8C-TDODA1 51307149-175 incorporates optional 1000 VAC RMS system-to-field galvanic isolation to prevent ground loop currents from back-feeding into the internal backplane logic when utilizing an external 24 VDC power supply. The 32 sourcing output channels support configurable control modes including latched, pulsed, and pulse-width modulated (PWM) outputs. Per-channel safe-state behavior (FAILOPT) ensures that outputs either hold the last valid command or transition to a user-defined safe value upon loss of backplane communication.

Frequently Asked Questions

Q: Does the 8C-TDODA1 module support online hot-swapping under live power?

A: Yes, the module supports Removal and Insertion Under Power (RIUP) while powered on, provided that backplane power rail stability is maintained during physical insertion into the carrier.

Q: How is short-circuit protection implemented across the 32 discrete output channels?

A: Short-circuit protection is provided via internal fuses allocated at one fuse per eight channels, totaling four fuses across the entire 32-channel module footprint.

Q: What power source configuration is required to achieve galvanic isolation between system and field wiring?

A: System-to-field galvanic isolation requires an external user-supplied 24 VDC field power supply; using internal system power bypasses isolation.

Field Installation Guidelines

1. Mount the module securely onto the Series 8 carrier base, verifying full pin engagement with the backplane connector before applying field power.
2. Connect external 24 VDC field power supplies using shielded twisted-pair cables to maintain system-to-field galvanic isolation boundaries.
3. Terminate cable drain shields to a single ground point on the plant instrument earth bus to prevent circulating ground loops.
4. Ensure all NPT conduit fittings entering the field terminal enclosure maintain a minimum of 5 full threads engagement.
