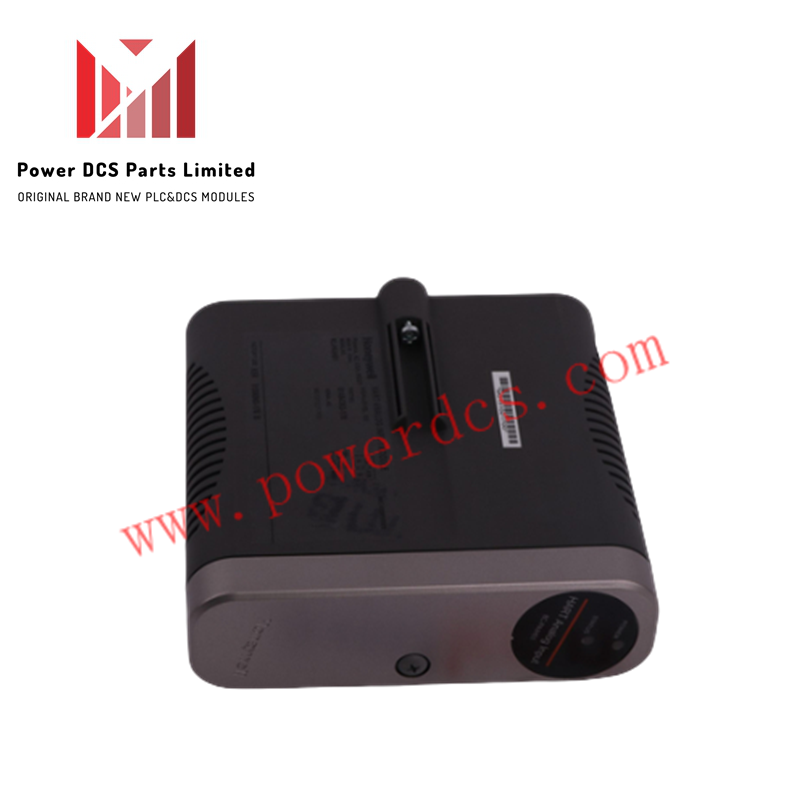

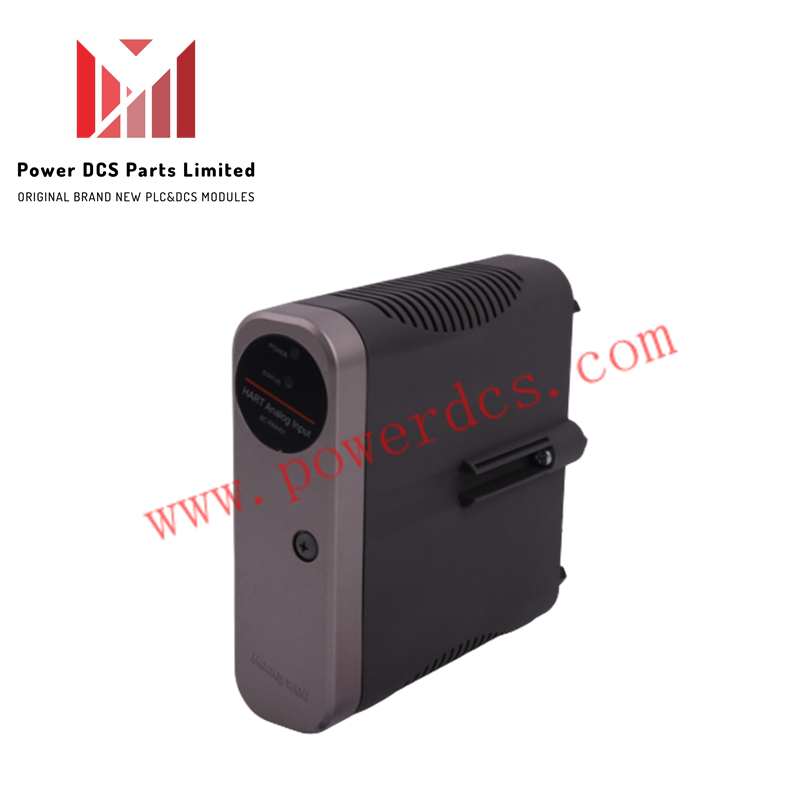

8U-PAINA1 Honeywell Analog Input Module

Configured for multi-channel analog signal acquisition in Honeywell Experion PKS C300 platforms, the Honeywell 8U-PAINA1 (8U-PAINA1 Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

4-20 mA Loop Processing and Channel Isolation

The Honeywell 8U-PAINA1 incorporates high-precision analog-to-digital processing stages operating across a standard single-ended 4-20 mA signal range without HART communication overhead. Integrated per-channel galvanic isolation rated at 500 VAC RMS shields central backplane logic from ground potential offsets and common-mode voltage spikes. Onboard signal conditioning circuitry with a 250 ohm input impedance stabilizes input data acquisition, providing precise high-level signal filtering across a rapid update rate of less than 100 ms per channel.

Frequently Asked Questions

Q: Does the 8U-PAINA1 analog input module support digital HART protocol pass-through?

A: No, the 8U-PAINA1 is designed specifically for standard non-HART single-ended 4-20 mA analog input signals.

Q: How is the 8U-PAINA1 module physically mounted into the Experion I/O architecture?

A: The module features a snap-in form factor designed for direct installation onto compatible Input Output Termination Assembly (IOTA) carriers.

Q: What level of electrical isolation is provided between field channels and ground?

A: The module provides per-channel galvanic isolation rated to withstand 500 VAC RMS channel-to-ground electrical potential.

Field Installation Guidelines

1. Confirm that the Experion IOTA mounting rail is connected to main cabinet Earth ground using a low-impedance conductor (minimum 4 mm2 / 10 AWG).
2. De-energize 24 VDC loop power supplies before inserting or snapping the 8U-PAINA1 module onto its designated IOTA baseplate position.
3. Route 4-20 mA analog input wiring using shielded twisted-pair cables, maintaining a minimum 300 mm separation from high-voltage AC conductors and drive leads.
4. Terminate overall signal cable shields at a single point on the enclosure Earth ground bar to eliminate circulating ground loop currents.
5. Verify proper seating of the module locking mechanisms to maintain vibration-resistant connectivity to the IOTA backplane interface.
