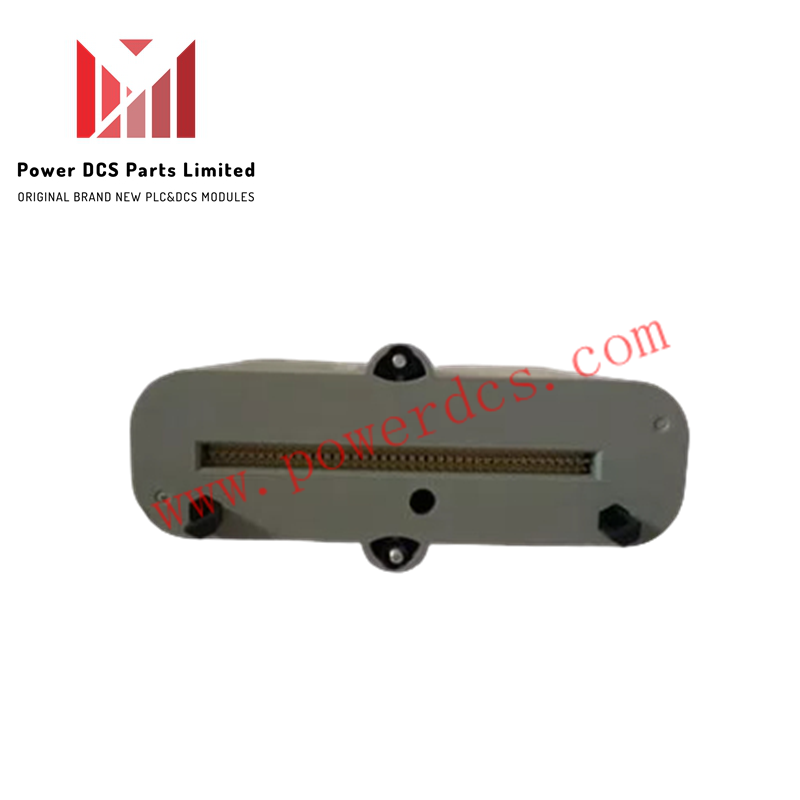

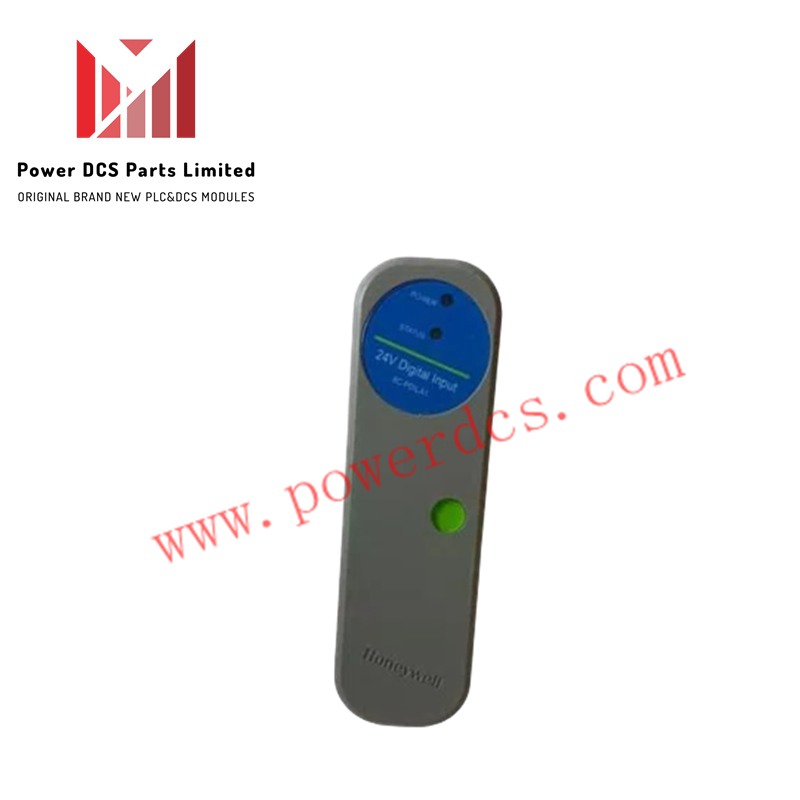

8U-PDISA1 Honeywell Digital Input Sequence of Events Module

Configured for high-speed discrete signal monitoring and timestamping in Honeywell Experion PKS platforms, the Honeywell 8U-PDISA1 (8U-PDISA1 Digital Input Sequence of Events Module) provides direct physical/electrical execution.

Hardware Specifications

4-20 mA HART Loop Protocol Pass-Through and Channel Isolation

The Honeywell 8U-PDISA1 incorporates galvanically isolated optical coupling stages providing 1000 VAC RMS or +/-1000 VDC isolation between field-side input channels and internal processing logic. The high-density signal conditioning block filters 24 VDC discrete transitions across 32 channels, suppressing common-mode potential offsets, high-frequency surge transients, and ground loop disturbances. Integrated timing circuitry enables Sequence of Events (SOE) timestamping with 1 ms resolution across both 20 ms standard and 5 ms fast scan configurations without introducing thermal drift.

Frequently Asked Questions

Q: Does the 8U-PDISA1 module support live hot-swapping under power?

A: Yes, the unit features hot-swappable architecture, allowing insertion and removal without interrupting system backplane operations or de-energizing cabinet power.

Q: What is the primary function of the SOE capabilities on this digital input card?

A: The Sequence of Events (SOE) feature logs field signal transitions with 1 ms timestamp resolution for root-cause analysis during equipment trips and process disturbances.

Q: What input voltage thresholds are supported across the 32 discrete channels?

A: The module accepts a nominal voltage of 24 VDC with an operational input voltage range of 18 to 30 VDC.

Field Installation Guidelines

1. Confirm proper cabinet grounding practices by bonding the I/O rack chassis directly to the primary enclosure Earth bar using a low-impedance conductor.
2. Inspect backplane connectors for pin damage or foreign debris before seating the 8U-PDISA1 module into its designated rack slot.
3. Route 24 VDC discrete input field wiring through dedicated grounded metallic conduits separated by at least 300 mm from AC power distribution lines.
4. Observe static-safe handling protocols including grounded ESD wrist straps during installation and maintenance procedures.
5. Ensure cabinet ventilation systems maintain ambient operational temperatures within the defined range of 0 to 60 deg C.
