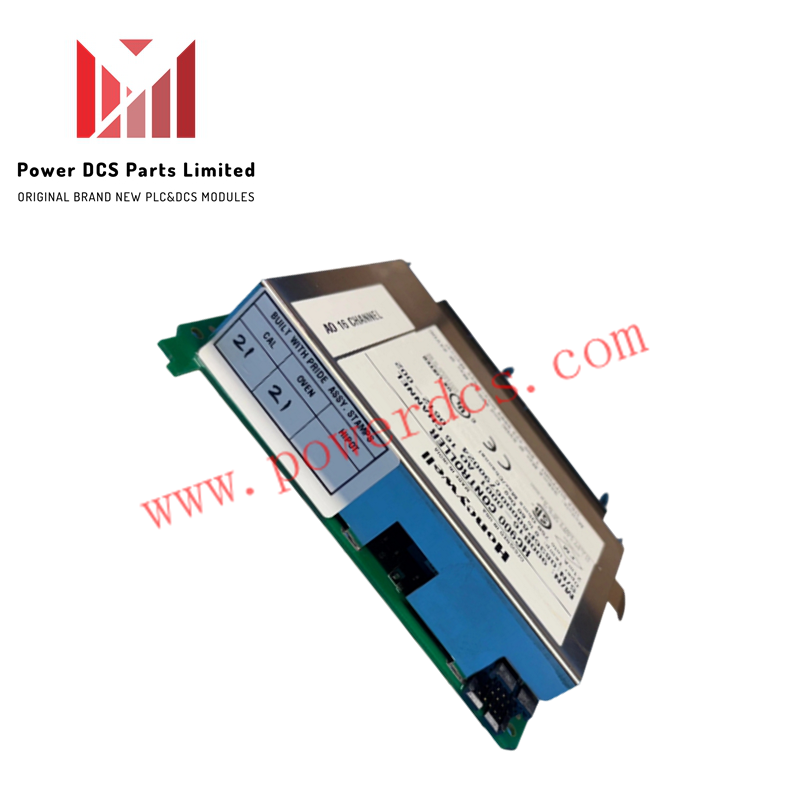

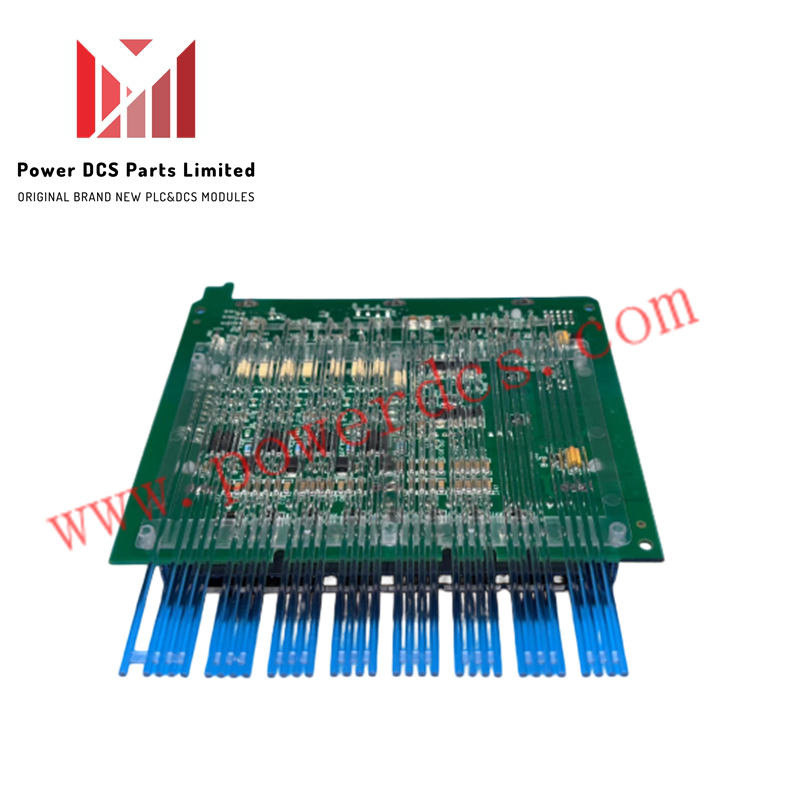

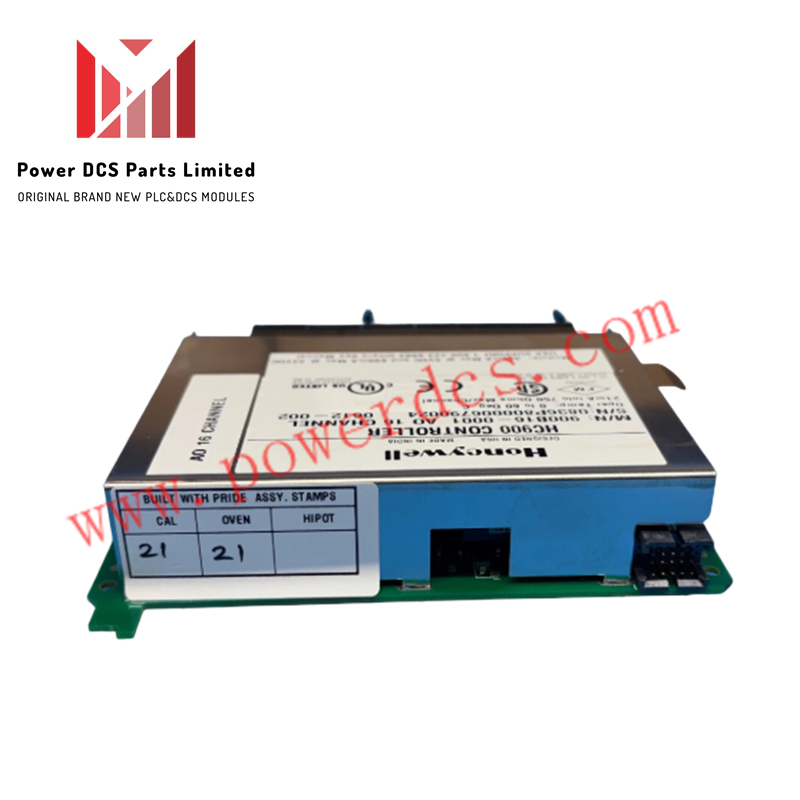

900B16-0001 Honeywell 16-Channel Analog Output Module
Specifications
Manufacturer: Honeywell
Product No.: 900B16-0001
Condition: 10 Items in Stock
Product Type: Analog Output Modules
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
Product details
Description
The Honeywell 900B16-0001, also cataloged as the 900B16 Analog Output Module, operates as a dedicated hardware component for direct current loop driving and analog actuator signal generation within ControlEdge HC900 system racks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900B16-0001 |
| Brand | Honeywell |
| Origin | USA |
| Number of Channels | 16 analog outputs |
| Output Range | 0 to 21.0 mA (configurable per channel) |
| Resolution | 13+ bits (1 part in 13,332) |
| Accuracy | +/-0.1% full scale at 25 deg C |
| Load Resistance | Up to 750 ohms |
| Isolation | 500 VDC group-to-group (4 groups of 4 channels), 500 VDC field-to-logic isolation |
| Internal Power Consumption | 5 VDC @ 350 mA, 24 VDC @ 700 mA |
| External Power Supply | 18 to 36 VDC @ 700 mA |
| Operating Temp | 0 to 60 deg C |
| Storage Temp | -40 to 70 deg C |
| Relative Humidity | 10% to 90% non-condensing |
| Vibration Resistance | 5-15.77 Hz (2.03 mm amplitude), 15.77-250 Hz (1.0 g acceleration) |
| Weight | 400 g |
| Dimensions | 137 mm x 35.6 mm x 66 mm |
Process Control & Channel Isolation Characteristics
The output circuitry provides channel-to-channel isolation configured across four distinct channel banks to prevent common-mode ground loop current propagation. Standard 4-20 mA HART loop protocol compatibility allows transparent transmission of control signals to field positioners and control valves. Integrated digital-to-analog conversion stages operate with hardware fail-safe holding circuitry that maintains user-defined output current levels upon detection of backplane communication faults.
Frequently Asked Questions
Q: What happens to the analog outputs if communication with the HC900 rack CPU is lost?
A: Each channel transitions to a user-configured fail-safe state, holding either its last valid output value or driving to a pre-defined safety current limit.
Q: How is galvanic isolation allocated across the terminal connections on this module?
A: The board features 500 VDC field-to-logic isolation as well as 500 VDC group-to-group isolation divided into four isolated groups of four output channels each.
Q: What is the maximum load impedance allowed for driving 4-20 mA loop devices?
A: Individual output channels drive loop impedances up to 750 ohms while maintaining full ±0.1% full-scale precision.
Field Installation Guidelines
- Power down the controller rack backplane and external loop power supplies before inserting or removing the output card.
- Align module circuit board edges with chassis guide slots and push firmly until top and bottom retention latches engage fully.
- Terminate signal wiring to the matching terminal block using twisted-pair shielded cable with individual pair drain wires terminated at cabinet earth ground.
- Verify external field power supply output stays within the 18 to 36 VDC operating window under full 700 mA channel loading.
- Ensure field cable routing maintains separation from 120/230 VAC power conduits to prevent electromagnetic signal coupling.
