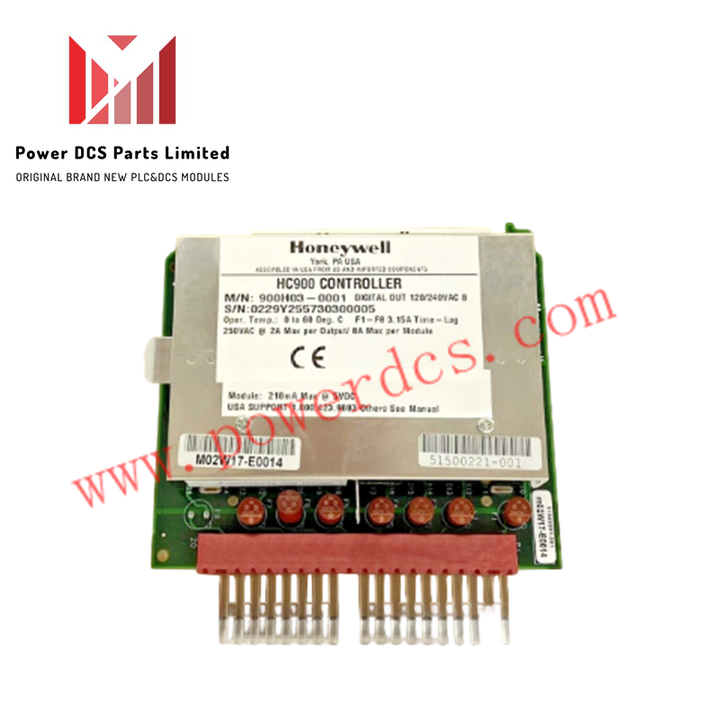

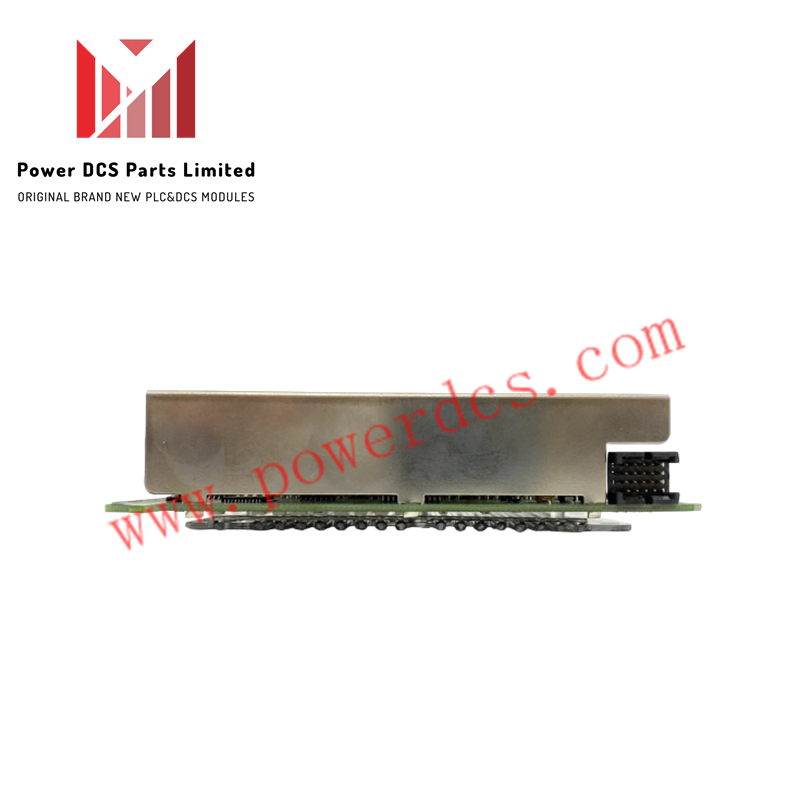

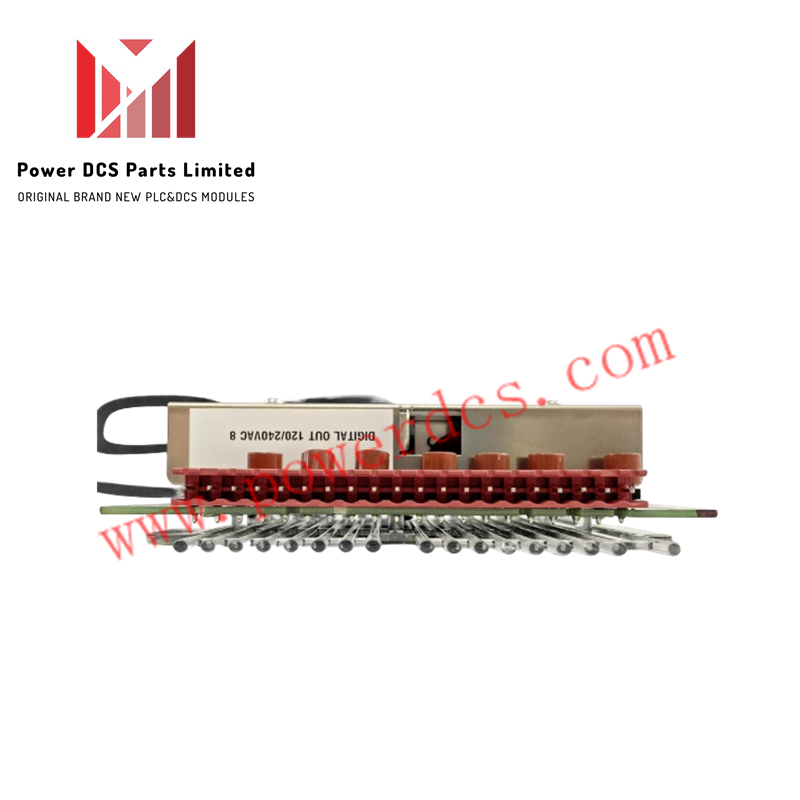

900H03-0001 | Honeywell | Digital Output Module

Configured for 8-channel high-voltage digital output control within ControlEdge HC900 hybrid controller architectures, the Honeywell 900H03-0001 (900H03-0001 Digital Output Module) provides direct physical/electrical execution of 120/240 VAC discrete load switching.

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The module incorporates robust channel isolation barriers designed to decouple high-voltage AC load circuits from internal system backplane logic. Galvanic isolation prevents common-mode voltage differentials and electrical transients from corrupting processor control states. While dedicated to discrete AC switching, the module operates within the same rack infrastructure alongside analog cards, maintaining complete signal independence from adjacent 4-20 mA HART instrumentation loops traversing system backplane communication paths.

Frequently Asked Questions

Q: Does the 900H03-0001 module support online hot-swapping within the HC900 controller rack?

A: Rack power must be completely de-energized before removing or inserting output modules to prevent backplane bus communication errors and hardware damage.

Q: What load voltage ranges are supported by the 8 digital output channels?

A: The module is engineered specifically for switching AC loads across standard 120 VAC and 240 VAC industrial power lines.

Field Installation Guidelines

1. Verify that incoming cabinet HC900 rack power and field AC load supplies are isolated and locked out prior to handling the module.
2. Align module card edges with the designated I/O slot guide rails on the HC900 controller chassis.
3. Push the module firmly inward until rear backplane connectors mate completely with the header pins.
4. Terminate field load wiring to the corresponding terminal blocks, ensuring proper separation between high-voltage AC lines and low-voltage control signals.
