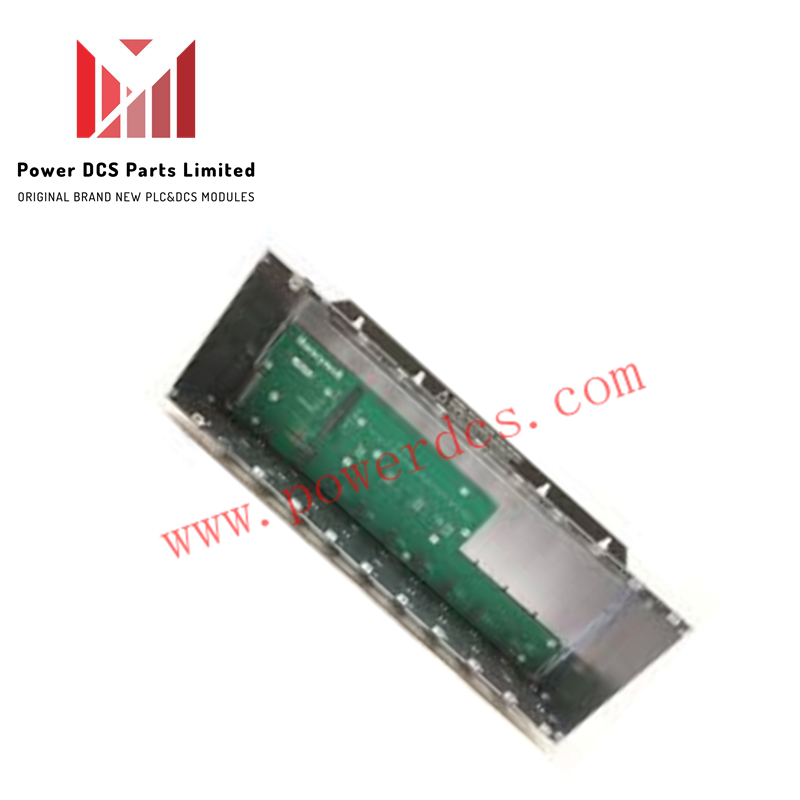

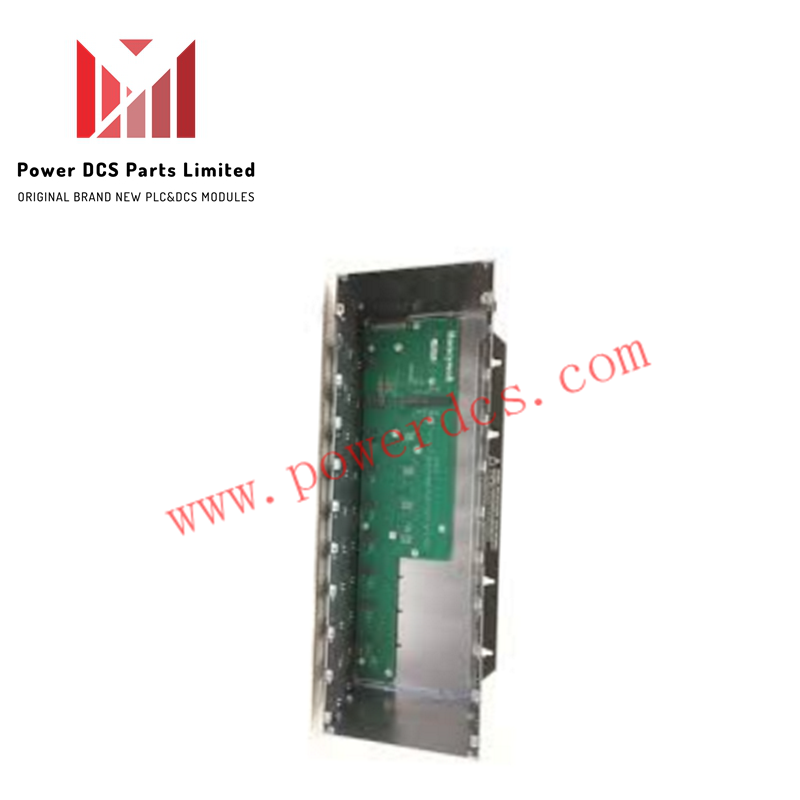

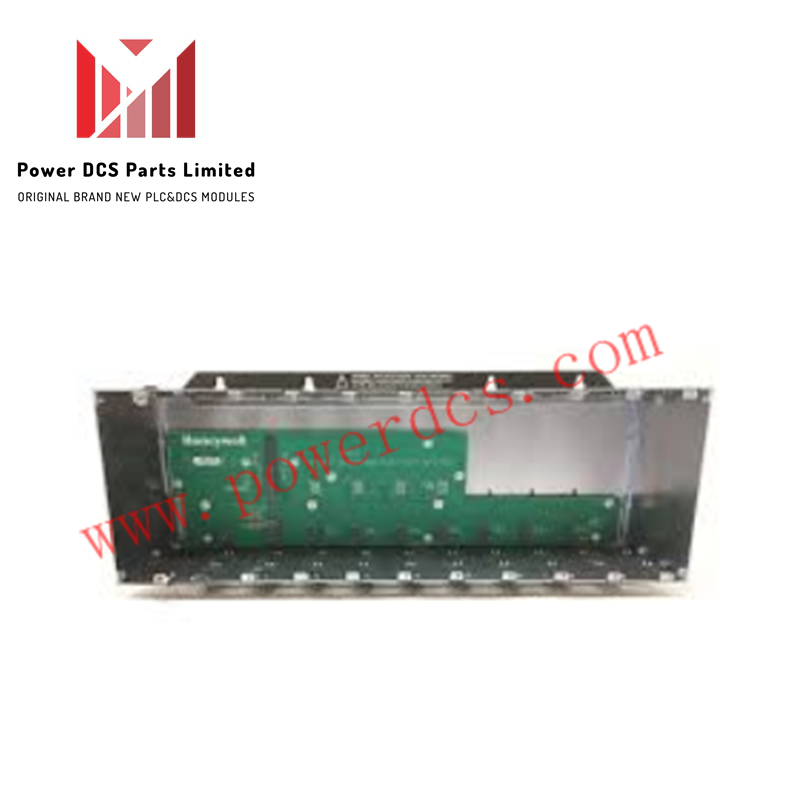

900R08R-0300 | Honeywell | 8-Slot I/O Rack

The Honeywell 900R08R-0300, also cataloged as the 900R08-0300 8-slot I/O rack, operates as a dedicated hardware component for module mounting, redundant power distribution, and backplane bus routing within ControlEdge HC900 process control architectures.

Hardware Specifications

Honeywell DCS Process Control and Loop Isolation

Integrated within Honeywell ControlEdge HC900 distributed control environments, the 900R08R-0300 backplane rack provides a deterministic communication and power bus for up to 8 modular I/O cards. While individual field instruments interface via 4-20 mA HART loop protocol or FOUNDATION Fieldbus segments to transmit process variables, the rack backplane manages high-speed data transfer and power distribution across all populated slots. Built-in channel-to-channel isolation boundaries and robust bus shielding prevent ground loops and high-frequency electromagnetic interference from corrupting critical signals across industrial cabinets.

Frequently Asked Questions

Q: Can individual I/O modules be hot-swapped while the 900R08R-0300 rack is powered and active?

A: Hot-swapping modules under live backplane power is supported on designated slots, provided specific I/O card types are rated for live insertion to prevent bus communication disruption.

Q: How does the backplane handle redundant 24 VDC power supply inputs?

A: The dual power inputs utilize diode-OR configuration circuitry to provide seamless, uninterrupted switchover if the primary 24 VDC source experiences a voltage sag or failure.

Q: What grounding requirements must be met to ensure backplane EMI immunity?

A: The rack chassis must be securely bonded to the main cabinet ground bus using a low-impedance copper braid to maintain electromagnetic compatibility and surge protection limits.

Field Installation Guidelines

• Mount the 8-slot rack securely onto a flat panel or structural DIN rail using all designated mounting holes to withstand heavy industrial vibration profiles.
• Ensure clear vertical and horizontal spacing around the chassis to allow adequate convective cooling across the 0 deg C to 60 deg C operating temperature range.
• Connect the primary and redundant 24 VDC power feeds to the dedicated terminal blocks, verifying correct polarity before energizing the system.
• Inspect all backplane connector pins for dust or foreign particulate contamination prior to inserting individual I/O modules.
