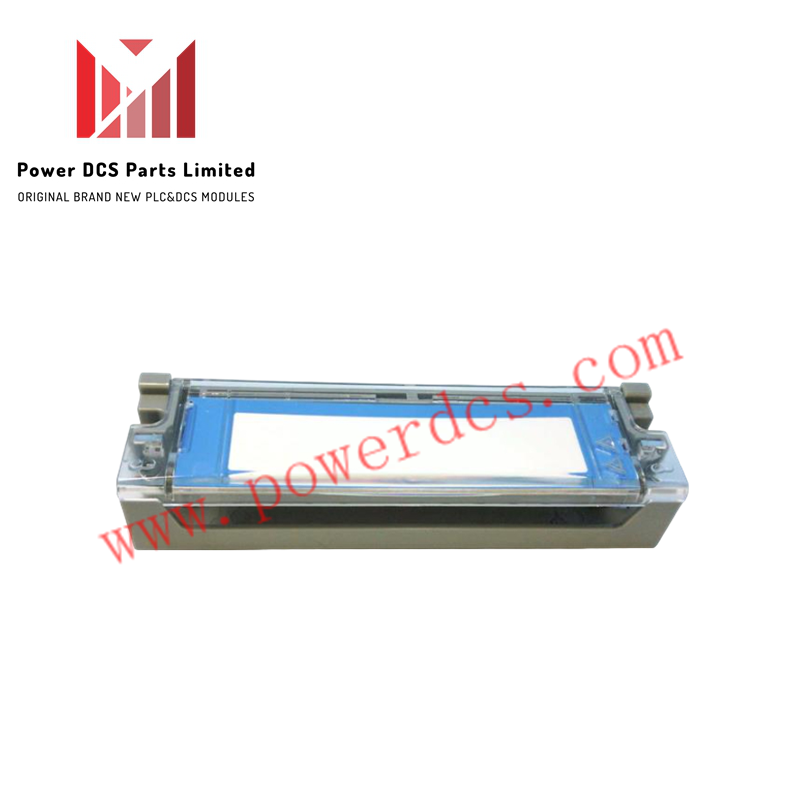

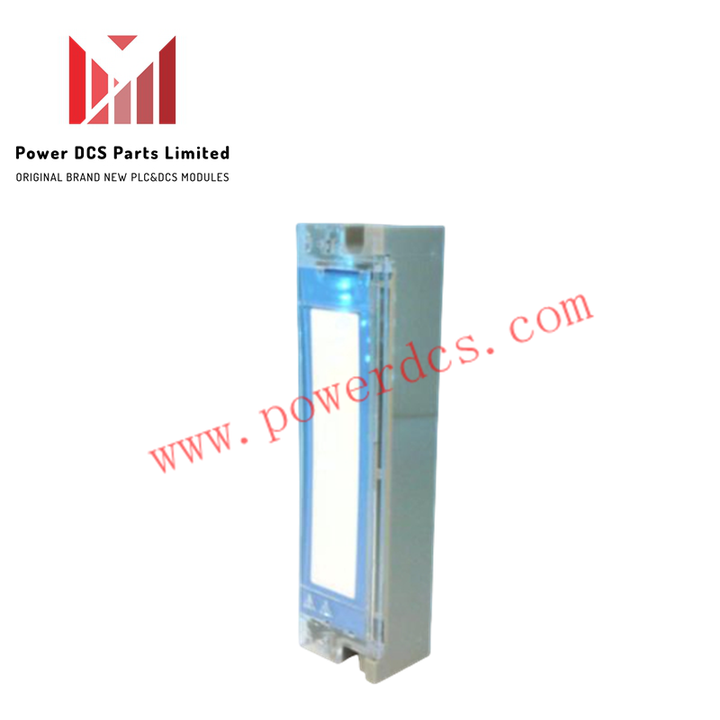

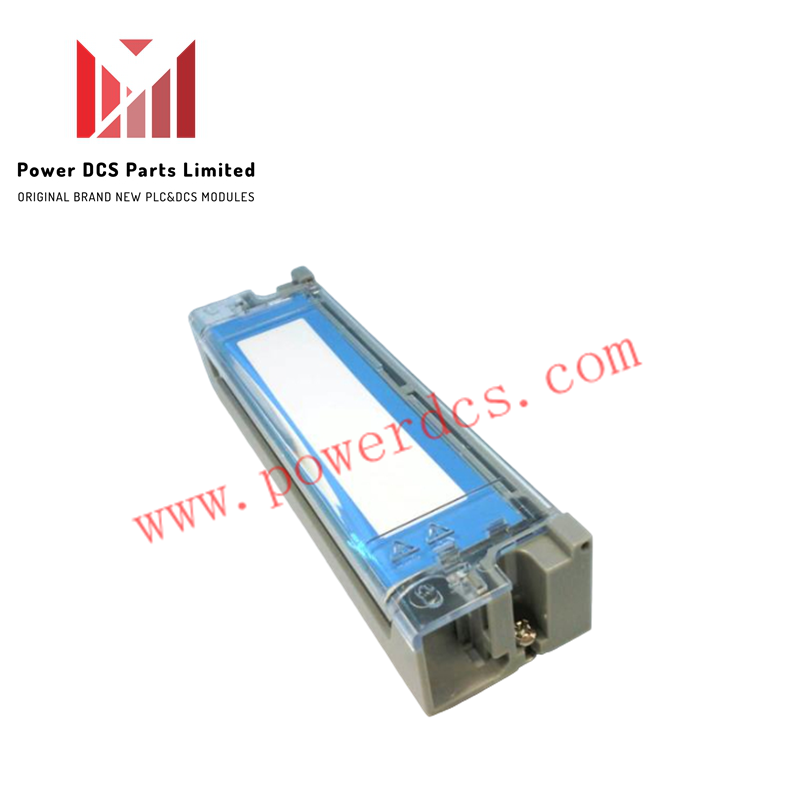

900TNF-0101 Honeywell Filler Block Terminal Cover

Configured for environmental protection and mechanical slot integrity in ControlEdge HC900 rack architectures, the Honeywell 900TNF-0101 (900TNF-0101 Filler Block Terminal Cover) provides direct physical enclosure and EMI shielding for vacant I/O slots.

Hardware Specifications

Honeywell DCS Process Control and Loop Isolation

Integrated within Honeywell ControlEdge HC900 distributed control environments, the 900TNF-0101 cover protects unpopulated backplane slots from particulate ingress, corrosive elements, and electromagnetic interference (EMI). While active signal channels rely on 4-20 mA HART protocols or FOUNDATION Fieldbus connectivity and strict channel-to-channel isolation, vacant card slots represent potential leakage points for electrostatic discharge and noise coupling. This terminal cover ensures continuous ground shielding continuity and mechanical enclosure sealing across the entire I/O backplane architecture.

Frequently Asked Questions

Q: Can the 900TNF-0101 filler block be installed while the HC900 I/O rack is live and powered?

A: Yes, since it is a passive mechanical component containing no electrical circuitry, it can be snapped into empty rack slots without powering down the system.

Q: What environmental protection rating does this cover maintain when properly installed?

A: The unit maintains an IP65 environmental rating, protecting internal backplane connector pins against dust ingress and low-pressure water jets.

Q: How does the thermoplastic material react to high ambient temperatures within industrial cabinets?

A: The UL94-V0 flame-retardant thermoplastic construction retains structural integrity across operating temperatures ranging from -40 deg C to +70 deg C.

Field Installation Guidelines

• Align the filler block terminal cover with the empty guide rails of the unpopulated ControlEdge HC900 rack slot.
• Apply firm, even pressure until the snap-in locking mechanism engages securely with the backplane chassis.
• Inspect the perimeter seating to ensure a tight seal against dust and moisture before closing the control cabinet door.
• Verify that adjacent active I/O modules are not mechanically obstructed or misaligned by the installation of the filler block.
