ABB 3BHE009681R0101 3BHB013088R0001 5SHY3545L0010 Thyristor IGCT Module

Specifications

  • Manufacturer: ABB

  • Product No.: 3BHE009681R0101 3BHL000986P3004 5SGY3545L0009

  • Condition： 10 Items in Stock

  • Product Type: Thyristor IGCT Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 10000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

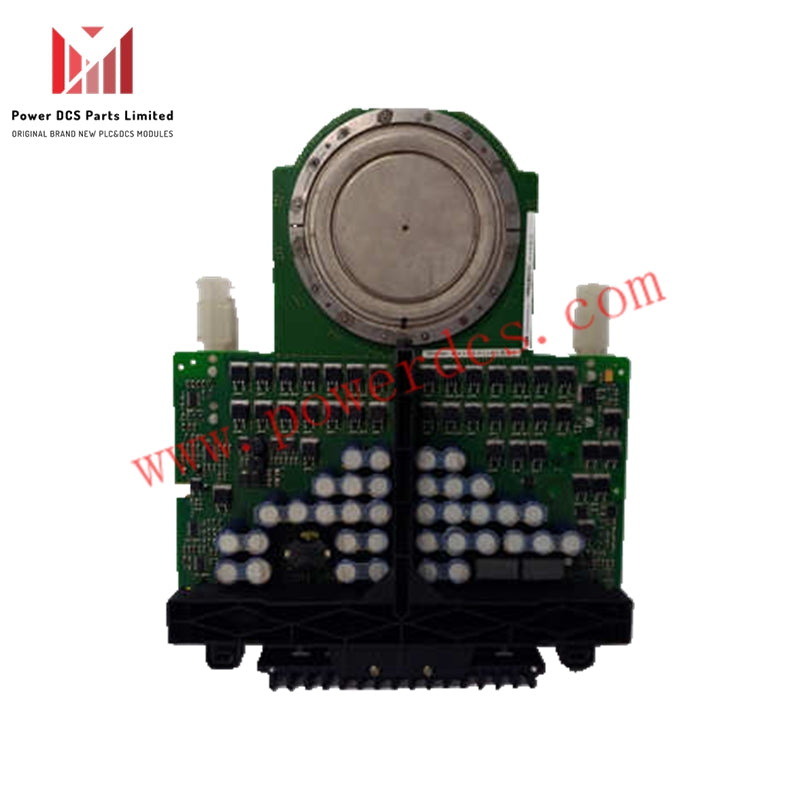

ABB 5SHY3545L0010 IGCT Module

Part Numbers:

  • 3BHE009681R0101

  • 3BHB013088R0001

  • Manufacturer Part Number: 5SHY3545L0010

General Information

  • Manufacturer: ABB

  • Condition: Brand New & In Stock

  • Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module

  • Origin: Switzerland

  • Warranty: 12 Months

  • Approvals: CE, UL, CSA

  • Payment Options: T/T, Western Union

Applications

  • High-Voltage Direct Current (HVDC) Transmission

  • Variable Frequency Drives (VFDs)

  • Static Var Compensators (SVCs)

  • Soft-Start and Protection Systems

Key Features

  • High voltage and current ratings: 4500V / 3500A

  • Integrated gate driver

  • Fast switching speeds (turn-on and turn-off)

  • High surge current capability

  • Low switching and conduction losses

Technical Specifications

Parameter Value
Nominal Voltage 4500 V
Nominal Current 3500 A
Peak Turn-On Gate Current 1000 A
Peak Turn-Off Gate Current 1000 A
Turn-On Time 1.5 µs
Turn-Off Time 1.5 µs
On-State Voltage Drop 2.5 V
Off-State Leakage Current 10 mA
Maximum Junction Temperature 125°C



Physical Specifications

  • Dimensions: 320 mm × 200 mm × 150 mm

  • Weight: 20 kg
