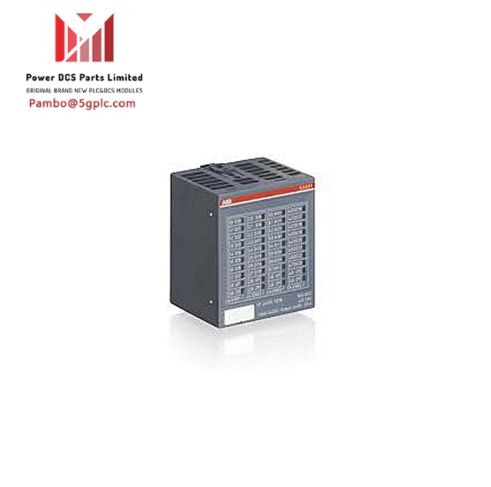

ABB AI523 1SAP250300R0001 Analog Input Module

General Information

Extended Product Type: AI523
Product ID: 1SAP250300R0001
ABB Type Designation: AI523
EAN: 4016779655941
Catalog Description: Analog input module. 16 AI: U, I, RTD, DI (AI523)
Long Description: AI523: S500 Analog input module. 16 AI: U, I, RTD, DI. 13Bit incl. sign. 1-wire.

Ordering

• CN8: 85389091
• Invoice Description: Analog input module. 16 AI: U, I, RTD, DI (AI523)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.125 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Gross Weight: 0.149 kg
• Package Level 1 Depth / Length: 84 mm
• Package Level 1 Height: 72 mm
• Package Level 1 Width: 71 mm
• Package Level 1 Units: 1 carton

Technical

• Function: 16 AI: U, I, RTD, DI
• Number of Analog Configurable I/Os: 0
• Analog Inputs: 16
• Input Signal: U, I, RTD, DI
• Resolution: Analog Input 13 bit
• Degree of Protection: Housing IP20
• Supply Voltage: 24 V DC
• Ambient Air Temperature:
  • Operation: 0 … +60 °C
  • Storage: -40 … +70 °C

Additional Information

• Product Main Type: AI523
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-22-02
• ETIM 8: EC001420 - PLC analogue I/O-module
• UNSPSC: 32151705

Environmental

• SCIP: 7cb90025-28e2-46bb-94d1-6c5d380058b3 Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
