ABB CAI20 3BDH000722R1 Analog Input Module 32 Channels

Specifications

  • Manufacturer: ABB

  • Product No.: CAI20

  • Condition： 10 Items in Stock

  • Product Type: I-O Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 760g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

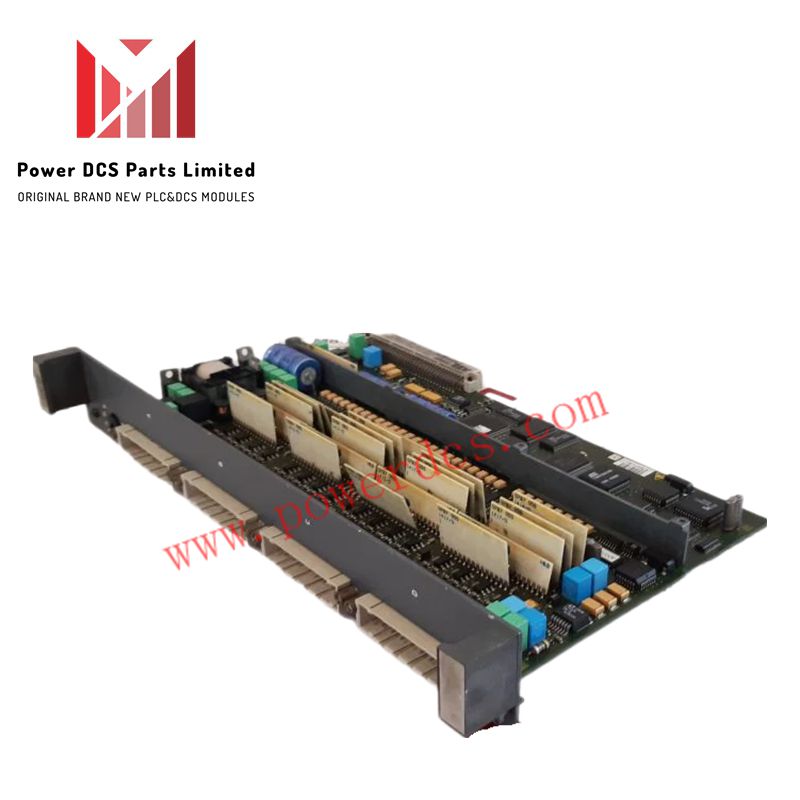

ABB CAI20 3BDH000722R1 – Analog Input Module

Product Overview

The ABB CAI20 3BDH000722R1 is a 32-channel analog input module designed for ABB Symphony Melody and Symphony Plus control systems. It supports current, voltage, and HART communication signals, making it a reliable solution for demanding process automation tasks. With module-level isolation and integrated transmitter power supply, the CAI20 ensures safe and accurate data acquisition across complex industrial environments.

Its compact size, light weight, and flexible configuration allow engineers to optimize installation while maintaining precise monitoring of process variables. The module also supports advanced diagnostics, which improves operational reliability.

⚙️ Technical Specifications

Feature Specification
Model CAI20
Part Number 3BDH000722R1
Product Type I-O Module
System Compatibility ABB Symphony Melody / Symphony Plus
Channel Type AI (Analog Input)
Number of Input Channels 32
Input Signal Types 0/4–20 mA, 0/2–10 V, Resistance 250 Ω, HART
Isolation Per module
Transmitter Power Supply Yes (integrated)
Accessories Required 4 × CI 100/101, cable clamp
Dimensions (L × H × W) 212 mm × 350 mm × 55 mm
Net Weight 0.76 kg
