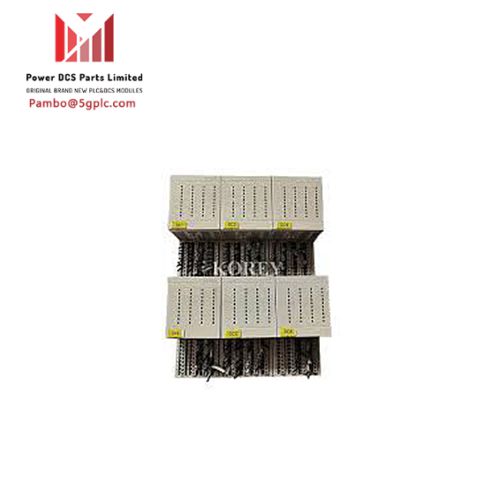

ABB DC732F 3BDH000375R0001 Digital Input Module AC 800M

Overview
The ABB DC732F A0 3BDH000375R0001 is a digital input/output (I/O) module designed for use in industrial automation systems. It offers 32 channels, 16 of which are assigned as digital inputs, while the remaining 16 channels can be configured as either input or output. This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.

Features

• High channel count: 32 channels provide flexibility for a wide range of input/output applications.
• Mixed input/output: 16 digital inputs and 16 configurable input/output channels cater to diverse signal requirements.
• PROFIBUS communication: Supports PROFIBUS remote I/O for seamless integration into PROFIBUS networks.
• Direct I/O capabilities: Enables direct I/O connection with AC 700F and AC 900F controllers.

Technical Specifications

• Number of channels: 32
• Input type: Digital (16 channels)
• Output type: Digital (16 channels)
• Communication protocol: PROFIBUS
• Direct I/O support: AC 700F, AC 900F
• Dimensions: 54 mm x 76 mm x 67.5 mm
• Weight: 0.6 kg
