ABB DIS0012 2RCA025340A0001H Large IEC Aluminium Front Cover / LHMI

Specifications

  • Manufacturer: ABB

  • Product No.: DIS0012 2RCA025340A0001H

  • Condition： 10 Items in Stock

  • Product Type: Large IEC Aluminium Front Cover / LHMI

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 780g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

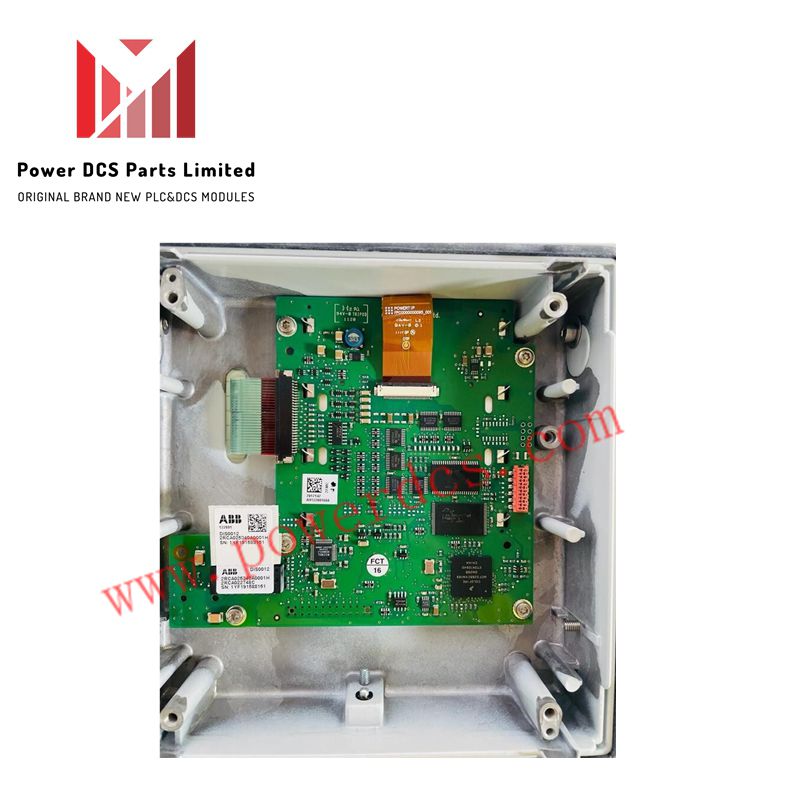

ABB DIS0012 – Local Human-Machine Interface (LHMI)

Product Overview

The ABB DIS0012 (Part No. 2RCA025340A0001H) is a large IEC-compliant aluminium front cover designed as a Local Human-Machine Interface (LHMI) for ABB’s medium-voltage protection and control systems. It provides operators with direct access to relay functions such as real-time monitoring, diagnostics, and parameter configuration. The module integrates seamlessly with REF615, REM615, REV615, RED615, and REU615 protection relays, ensuring consistent performance in demanding industrial environments.

⚙️ Technical Specifications

Category Specification
Model Number DIS0012
Part Number 2RCA025340A0001H
Product Type Large IEC Aluminium Front Cover / LHMI
Material High-grade aluminium
Dimensions (L × W × H) 135 mm × 67.5 mm × 40 mm
Weight  0.78 kg
Input Channels 12 digital inputs
Input Voltage Range 24 V to 250 V DC
Input Current Nominal 2 mA
Power Consumption Max 1.5 W
Isolation 2 kV AC between channels and system
Response Time < 5 ms
Mounting Type DIN rail compatible
Operating Temperature –25°C to +70°C
Storage Temperature –40°C to +85°C
Humidity Range 5% to 95% RH, non-condensing
Protection Rating IP20
Compliance RoHS, IEC 61000-4-2 (8 kV EMC immunity)
Shock Resistance 15 G for 11 ms
Vibration Resistance 2 G (10–150 Hz)
Country of Origin Switzerland
