ABB DIS0016 2RCA025342A0001H Local Human-Machine Interface

Specifications

  • Manufacturer: ABB

  • Product No.: DIS0016 2RCA025342A0001H

  • Condition： 10 Items in Stock

  • Product Type: Local Human-Machine Interface

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 5000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

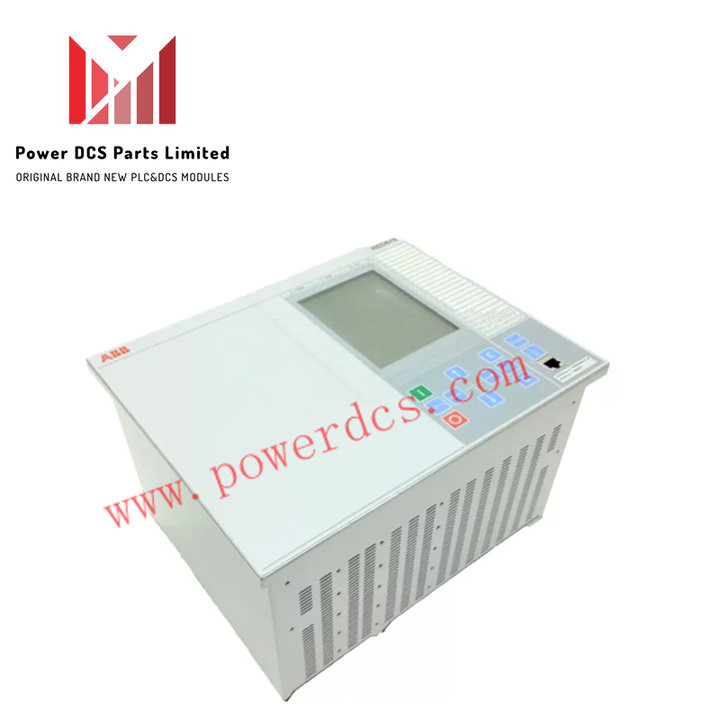

ABB DIS0016 – Local Human-Machine Interface (LHMI)

Overview

The ABB DIS0016 (Part No. 2RCA025342A0001H) is a local human-machine interface (LHMI) designed for integration with ABB REF615 protection relays. It offers operators a clear graphical display and navigation keys, enabling intuitive monitoring, local configuration, and event diagnostics. With its rugged build and reliable electronics, it ensures dependable performance in substation automation and industrial control environments.

⚙️ Technical Specifications

Feature Specification
Model DIS0016
Part Number 2RCA025342A0001H
Product Type Local Human-Machine Interface (LHMI)
Application Front-panel interface for REF615 relays
Display Type Graphical LCD with navigation buttons
Status Display Current, voltage, power, frequency, alarms, trip data
Local Configuration Menu-driven relay settings and control logic
Alarm Indication LED or on-screen alerts
Self-Diagnostics Continuous hardware and software monitoring
Power Consumption Max 1.5 W
Isolation 2 kV AC between input and system
Protection Rating IP40 (front panel)
Operating Temperature –10°C to +50°C (std), –25°C to +70°C (extended)
Storage Temperature –20°C to +60°C (std), –40°C to +85°C (extended)
Humidity Range 5%–95% RH, non-condensing
Dimensions (W × H × D) 17.8 cm × 5.1 cm × 30.5 cm
Weight 5.0 kg
Mounting Type Panel-mounted
Country of Origin Switzerland / Sweden / Malaysia
