ABB DO620 3BHT30009R1 Digital Output Module original and bottom price

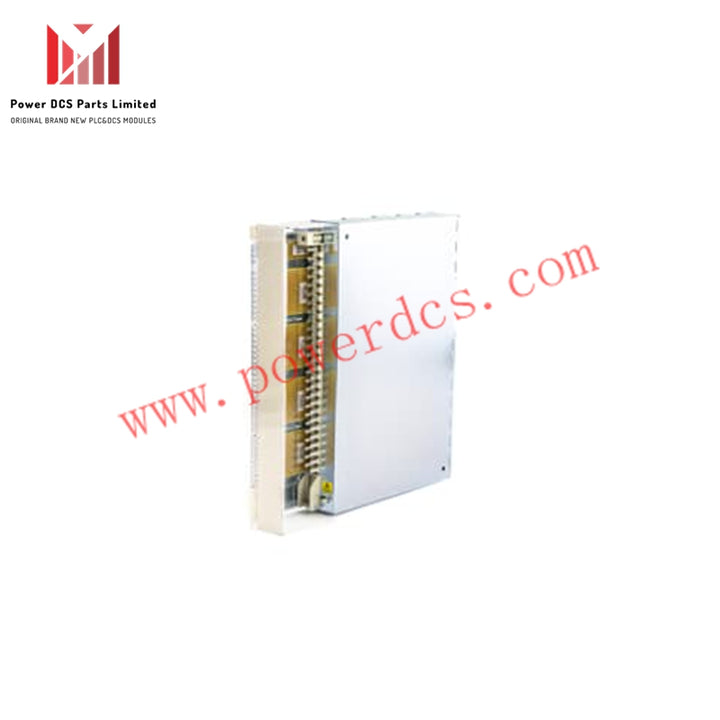

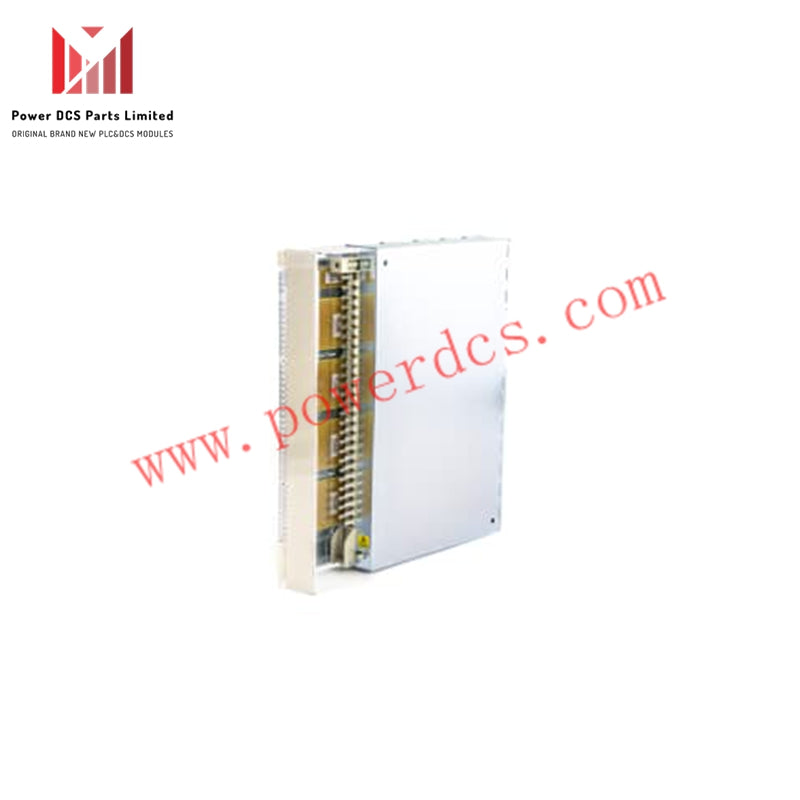

ABB DO620 – Digital Output Module, 32 Channels, 60 VDC

Order Number: 3BHT300009R1
ABB Type Designation: DO620
Product Type: I/O Module

Description

The DO620 is a 32-channel digital output module designed for industrial control systems. It features isolated outputs grouped into four groups and supports up to 60 V DC. The module uses short-circuit proof transistors with a maximum current of 0.5 A per channel, providing reliable switching performance.

Technical Information

• Module Type: S600 I/O Digital Output Module

• Number of Output Channels: 32

• Output Voltage: < 60 V DC

• Output Current: Max. 0.5 A per channel

• Isolation: Opto-isolated in four groups

• Short-Circuit Proof: Yes

• RoHS Exemption: This part is exempt from RoHS Directive 2011/65/EU under Articles 2(4)(c), (e), (f), and (j) (see ABB Advant Master Process Control System EU Declaration of Conformity 3BSE088609)

Ordering Information

Physical Dimensions

Environmental and Compliance
