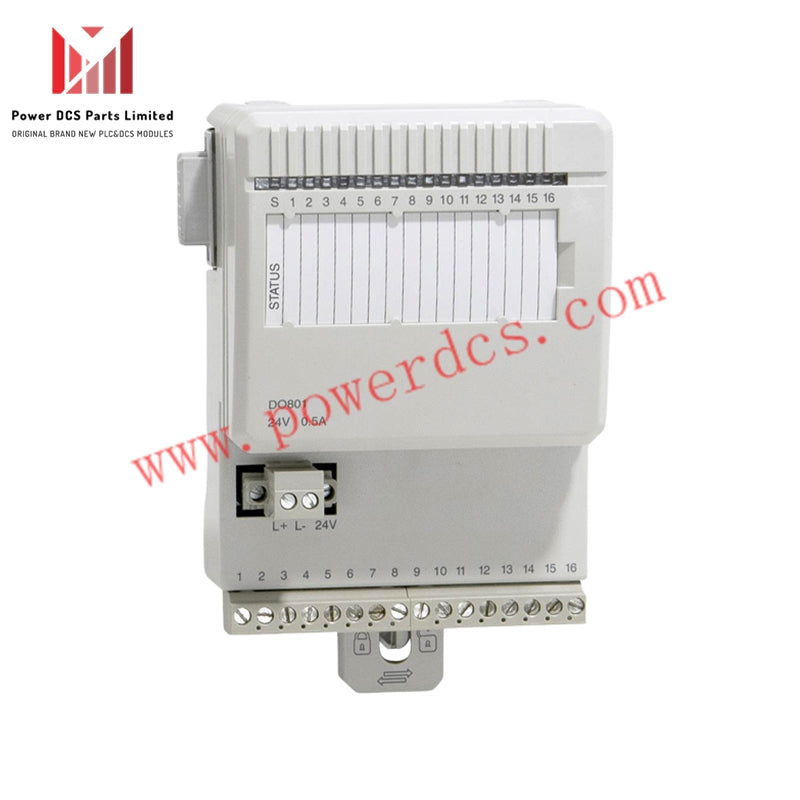

ABB DO801 Digital Output Module 24V 16 Channels

DO801 – 16-Channel 24 V Digital Output Module (S800 I/O)

Article Number: 3BSE020510R1
Type: Digital Output Module
Signal Specification: 24 V DC (12 – 32 V DC), 0.5 A per channel
Number of Channels: 16
Signal Type: Current sourcing, current limiting
Mechanics: S800L

Product Overview

The DO801 is a 16-channel digital output module designed for the S800 I/O system, providing reliable 24 V DC outputs. It supports a wide output voltage range from 10 V to 30 V, with a maximum continuous output current of 0.5 A per channel.

Each output channel is part of one isolated group and includes:

• High-side drivers with short circuit and over-temperature protection

• EMC protection components

• Inductive load suppression

• Output status indication LEDs

• Optical isolation barriers

The outputs are robustly protected against short circuits, over-voltage, and over-temperature conditions to ensure safe and stable operation.

Features and Benefits

• 16 channels for 24 V DC current sourcing outputs

• Single isolated group containing all 16 channels

• Output status indicators for easy monitoring

• Output State Protection (OSP): Sets outputs to a predetermined state in case of communication error

• Short-circuit protection to ground and 30 V

• Over-voltage and over-temperature protection

• Process and power connections via detachable connectors
