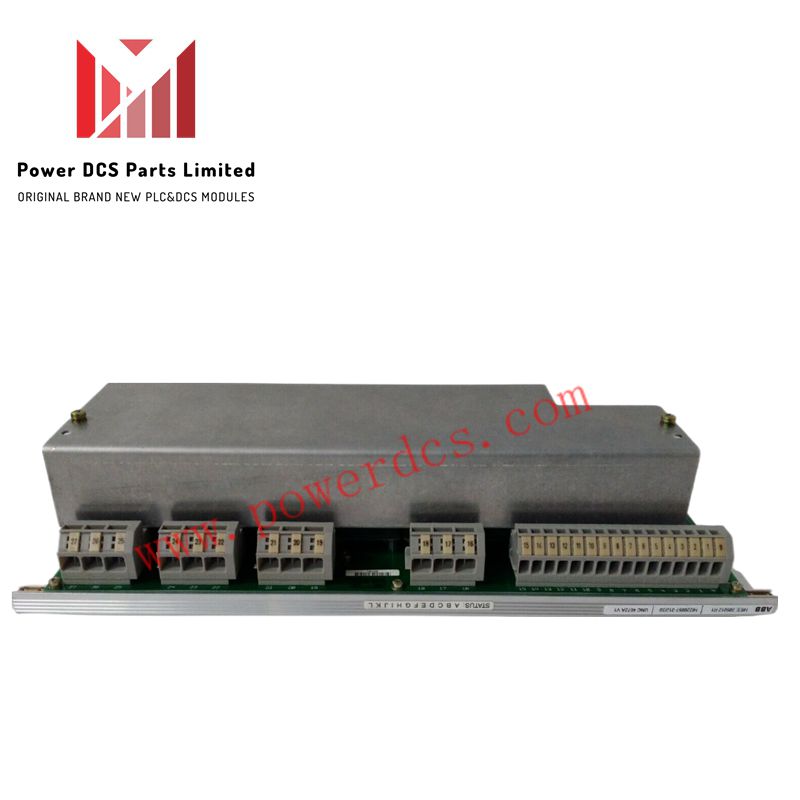

ABB G4AA HENF209644R5 Control Board for ETL600 System

Specifications

  • Manufacturer: ABB

  • Product No.: G4AA HENF209644R5

  • Condition： 10 Items in Stock

  • Product Type: Control Board

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 750g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

ABB G4AA HENF209644R5 – Control Board for ETL600 System

Product Overview

The ABB G4AA HENF209644R5 is a control board developed for the ETL600 Digital Power Line Carrier System (Release 1.0). It integrates a DPLC modem (MOD600), a powerful digital signal processor, and an HMI interface. With this module, operators can configure, monitor, and process PLC communication in real time while maintaining secure and efficient data transmission across high-voltage power lines.

⚙️ Technical Specifications

Category Specification
Model Number G4AA HENF209644R5
Product Type Control Board
System Compatibility ABB ETL600 Digital Power Line Carrier System (Release 1.0)
Function LF to RF signal conversion and digital signal processing
Data Transmission Rate 50 to 9,600 bps (narrowband)
Voltage Inputs 1 × V.11, 2 × V.24
Interfaces 4 × RS-232 (V.24/V), Sub-D 15-pin (V.11), Sub-D 9-pin (HMI), IRIG-B port
LED Indicators RDY (green – system ready), P4LT (red – hardware alarm), SYS (red – system alarm)
Connectors DIN 41612 header, screw terminals, quick-connect plugs
Operating Temperature –20°C to +70°C (–4°F to +158°F)
Humidity Tolerance Up to 95%, non-condensing
Dimensions (L × W × H) 13.2 cm × 5.3 cm × 6.5 cm
Weight  0.75 kg
Country of Origin Switzerland
Warranty 12 months
