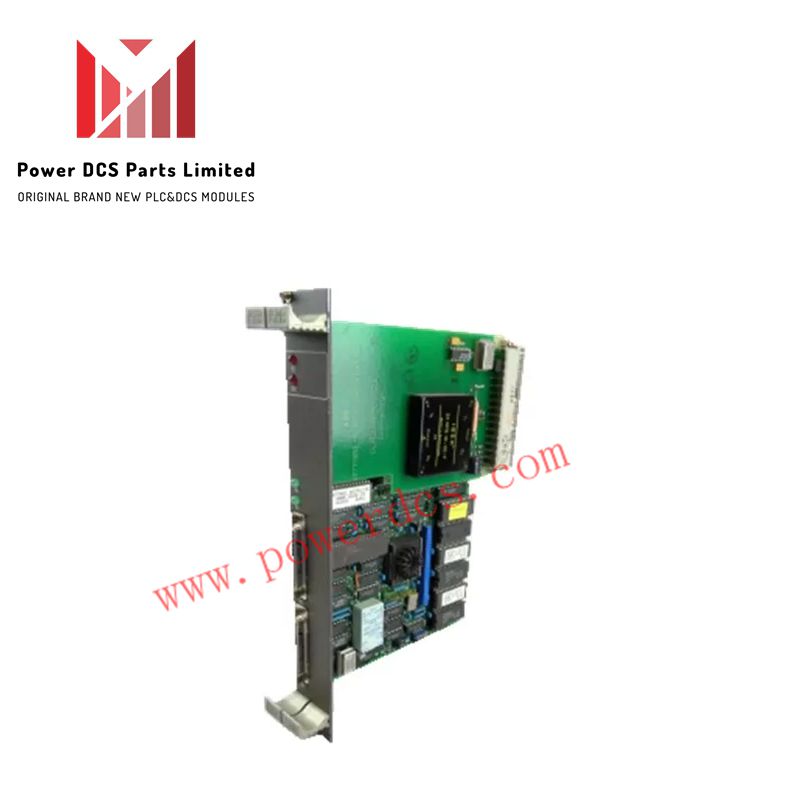

ABB G4AC HENF209544R1 Control Board for ETL600

Specifications

  • Manufacturer: ABB

  • Product No.: G4AC HENF209544R1

  • Condition： 10 Items in Stock

  • Product Type: Control Board for ETL600

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 750g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

ABB G4AC HENF209544R1 – Control Board for ETL600 DPLC System

Product Overview

The ABB G4AC HENF209544R1 is a high-performance control board engineered for the ETL600 Digital Power Line Carrier (DPLC) System, Release 1.0. This module performs LF to RF signal conversion and advanced digital signal processing, ensuring reliable data communication across high-voltage power lines. It integrates a DPLC modem (MOD600), a digital signal processor (DSP), and a human-machine interface (HMI) for configuration, diagnostics, and real-time monitoring.

Designed for substation automation and remote control, the G4AC HENF209544R1 delivers secure and efficient communication with robust environmental tolerance and compact design.

⚙️ Technical Specifications

Feature Specification
Model Number G4AC
Part Number HENF209544R1
Product Type Control Board for ETL600
System Compatibility ETL600 Digital Power Line Carrier System (Release 1.0)
Function LF to RF signal conversion, DSP-based processing, system control
Data Transmission Rate 50 to 9,600 bps (narrowband)
Interfaces 4 × RS-232 (V.24/V), Sub-D 15-pin (V.11), Sub-D 9-pin (HMI), IRIG-B time port
Unsupported Ports G.703 and LAN
LED Indicators RDY (green – ready), P4LT (red – hardware alarm), SYS (red – system alarm)
Power Supply DC-powered
Operating Temperature –20°C to +70°C
Humidity Tolerance Up to 95% RH, non-condensing
Dimensions (L × W × H) 132 mm × 53 mm × 65 mm
Weight  0.75 kg
Country of Origin Sweden
