ABB PFTL101A 3BSE004166R1 Pressductor

Description

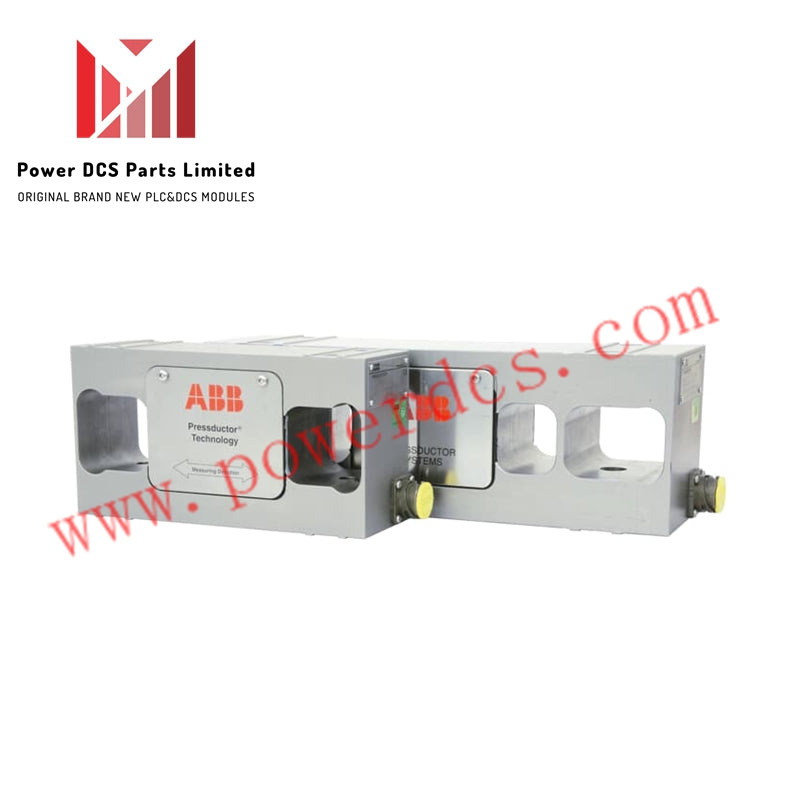

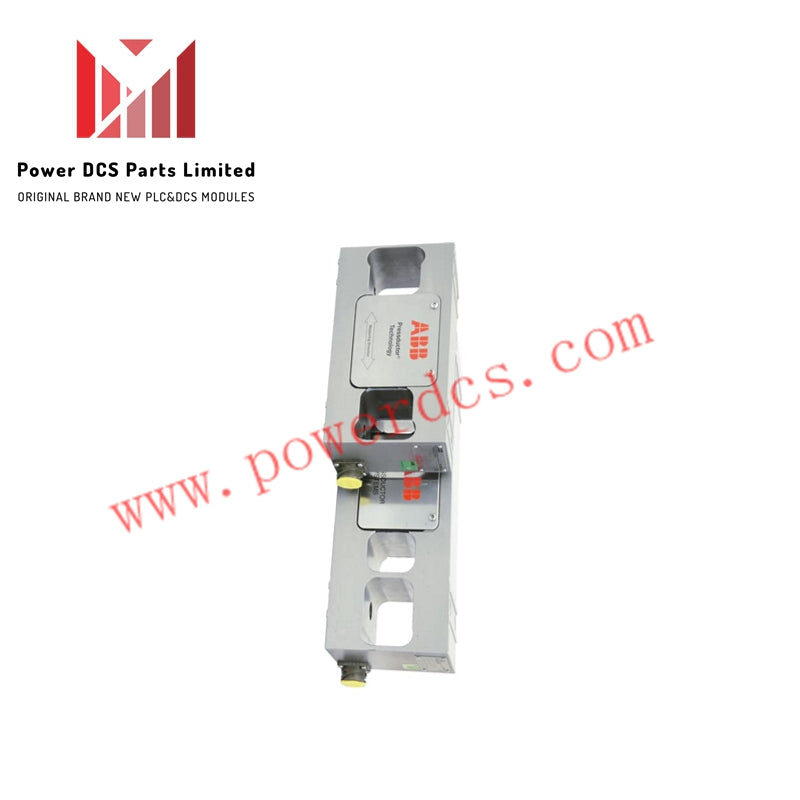

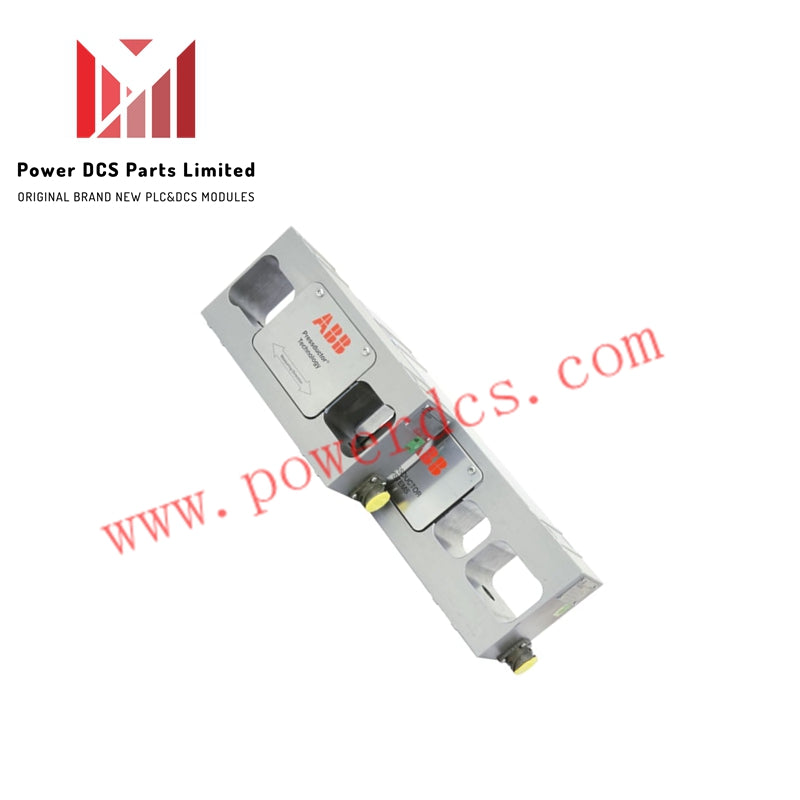

The ABB PFTL101A 3BSE004166R1 is a horizontal load cell based on Pressductor® magnetoelastic technology. It delivers precise force measurement for low-tension industrial applications such as web handling and process control.

Specifications

• Manufacturer: ABB

• Model Number: PFTL101A

• Part Number: 3BSE004166R1

• Product Type: Horizontal Load Cell

• Rated Capacity: 1.0 kN

• Transverse Load Capacity: 10.0 kN

• Overload Capacity: 5.0 kN (measurement direction)

• Accuracy: ±0.25%

• Non-Linearity: ≤0.1%

• Output Signal: 2.0 mV/V

• Technology: Magnetoelastic (Pressductor®)

• Weight: 9 kg

• Country of Origin: United States / Sweden

• Condition: New and in stock

Features

• Magnetoelastic Sensing: Converts mechanical force into electrical signals with high precision

• Low-Tension Measurement: Ideal for applications requiring accurate control of minimal forces

• High Reliability: Stable performance in dynamic and static load conditions

• Wide Industry Use: Suitable for pulp & paper, metal processing, and light industrial sectors

• Robust Construction: Handles transverse and overload forces without compromising accuracy

• Compact Design: Simplifies installation in tight industrial setups

• Stable Output: 2.0 mV/V signal ensures compatibility with standard automation systems

• Environmental Tolerance: Operates reliably in dry and lightly dusty environments
