Allen-Bradley 1606-XL240DR | Redundant Power Supply Module

Product Overview

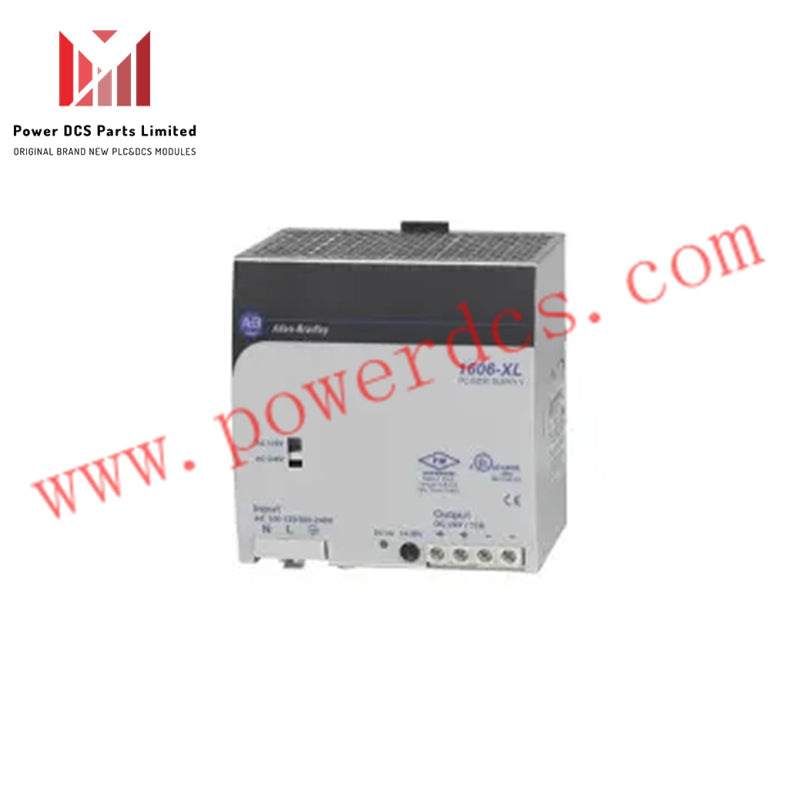

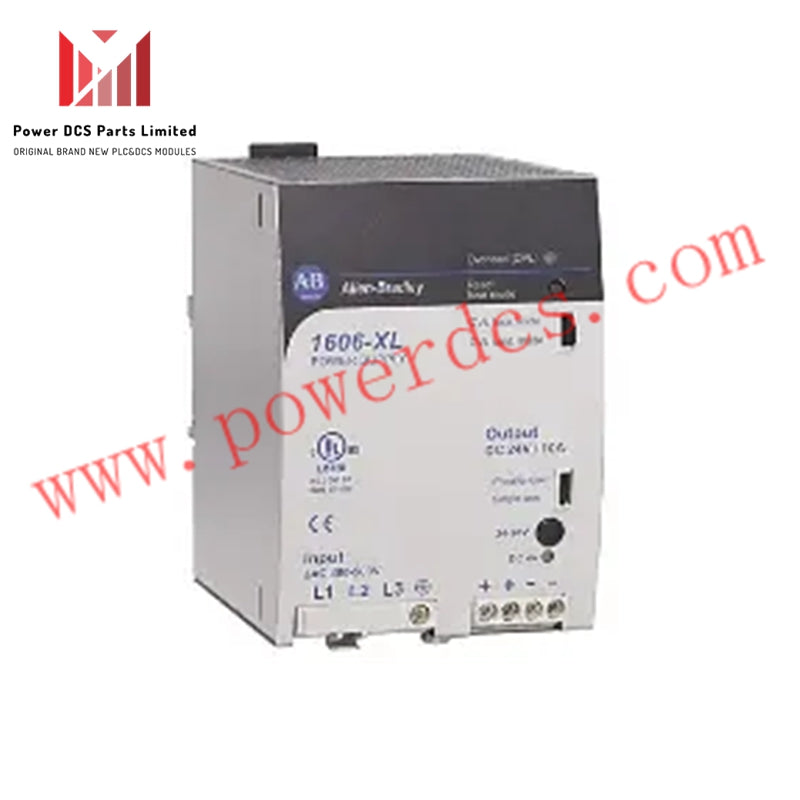

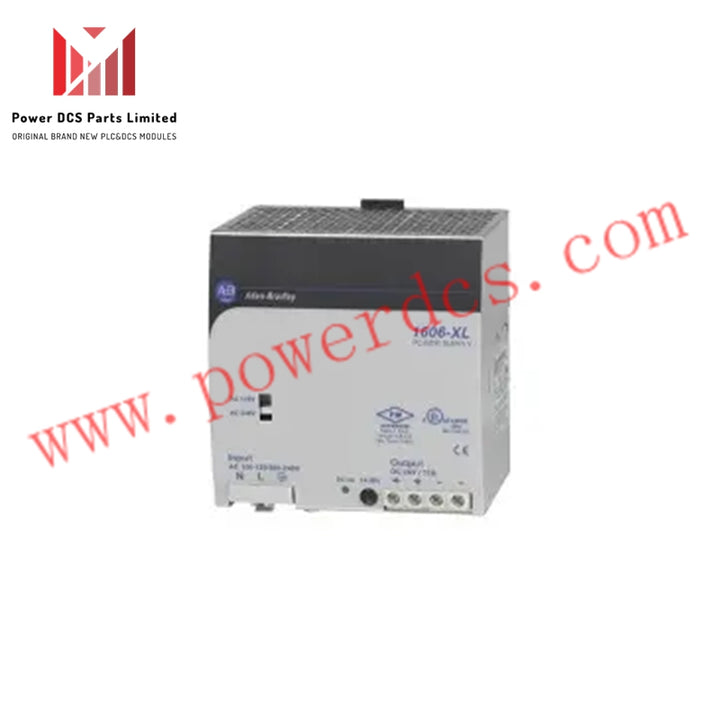

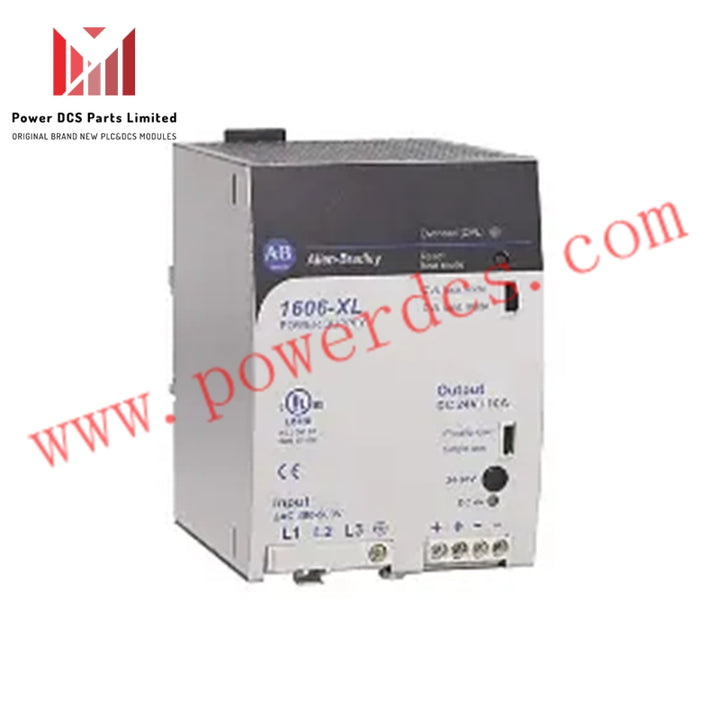

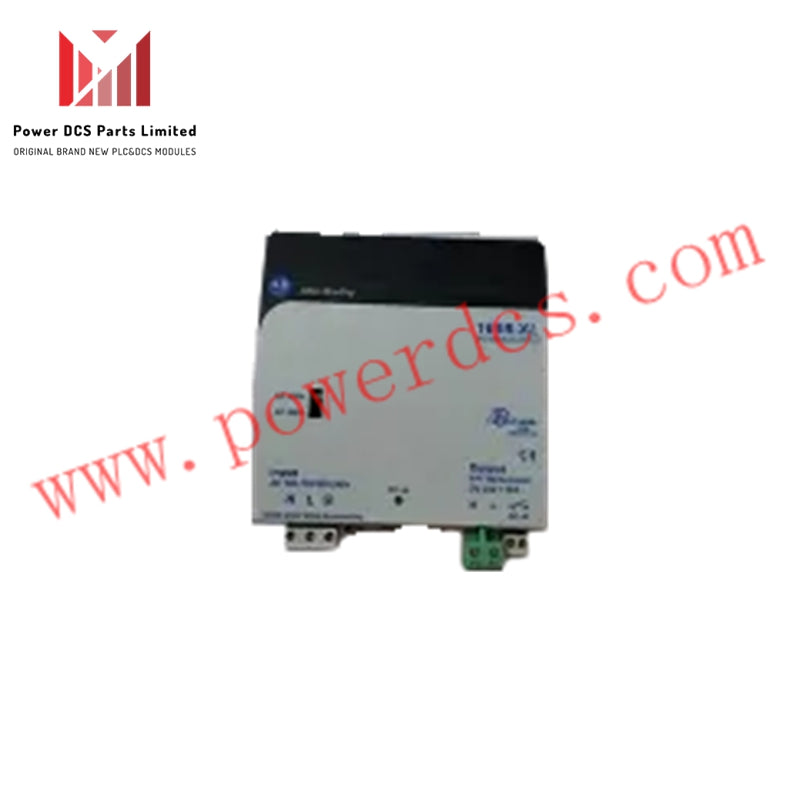

The 1606-XL240DR Redundant Power Supply from Allen-Bradley ensures uninterrupted 24V DC power for industrial automation systems. Designed for demanding environments, it enhances reliability and maximizes uptime.

Equipped with hot standby redundancy, the 1606-XL240DR automatically switches to a backup unit when the primary supply fails, eliminating downtime in critical operations. Its compact design, measuring 172 × 72 × 145 mm, allows integration into control cabinets without occupying excessive space. Weighing only 0.7 kg, installation and maintenance remain convenient.

The module operates within a wide voltage input range of 120/240V AC or 210-375V DC and delivers a stable 24V DC output with a total power capacity of 240W. Its IP20-rated enclosure protects against dust and light splashes, ensuring durability and long-term performance.

With an operating temperature range of -40°C to 70°C and a humidity tolerance of 5% to 95% non-condensing, the 1606-XL240DR withstands extreme industrial conditions. Certified under UL/cUL, CE, and CSA standards, it guarantees safety and reliability in industrial applications.

Key Features

• Redundant power supply with hot standby functionality

• Input voltage: 120/240V AC or 210-375V DC

• Output voltage: 24V DC, power capacity 240W

• Compact dimensions: 172 × 72 × 145 mm; weight: 0.7 kg

• IP20 protection class for dust and light splash resistance

• Operating temperature: -40°C to 70°C; Humidity: 5%–95% non-condensing

• Certifications: UL/cUL, CE, CSA

Technical Specifications

Applications

The 1606-XL240DR is ideal for continuous operation in manufacturing plants, warehouses, process automation, and critical industrial environments where uninterrupted power is essential.

FAQ

Q1: Is the 1606-XL240DR fully original and new?
A: Yes, the 1606-XL240DR is 100% new and original from Allen-Bradley.

Q2: What is the power output and voltage of this module?
A: The module delivers 24V DC with a total power capacity of 240W.

Q3: What redundancy type does it use?
A: It uses hot standby redundancy, automatically switching to backup on failure.

Q4: What are the operating temperature and humidity limits?
A: The 1606-XL240DR operates from -40°C to 70°C and 5%–95% non-condensing humidity.

Q5: How soon can this product ship?
A: We have stock. Orders ship within 3 days to 2 weeks depending on size, via DHL or other carriers.
