Allen-Bradley 1738-OB16EM12 | ArmorPoint Digital Output Module

Specifications

  • Manufacturer: Allen Bradley

  • Product No.: 1738-OB16EM12

  • Condition： 10 Items in Stock

  • Product Type: Digital Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 560g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Product Overview

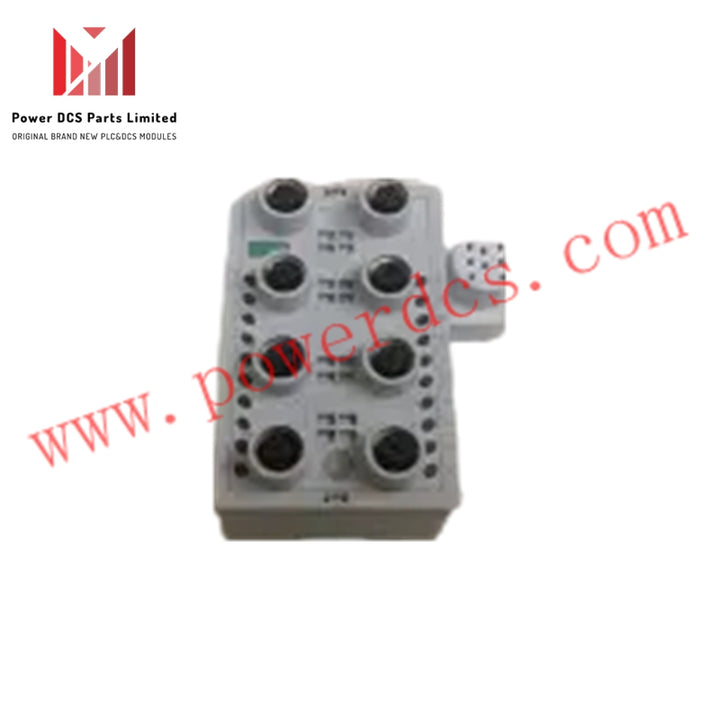

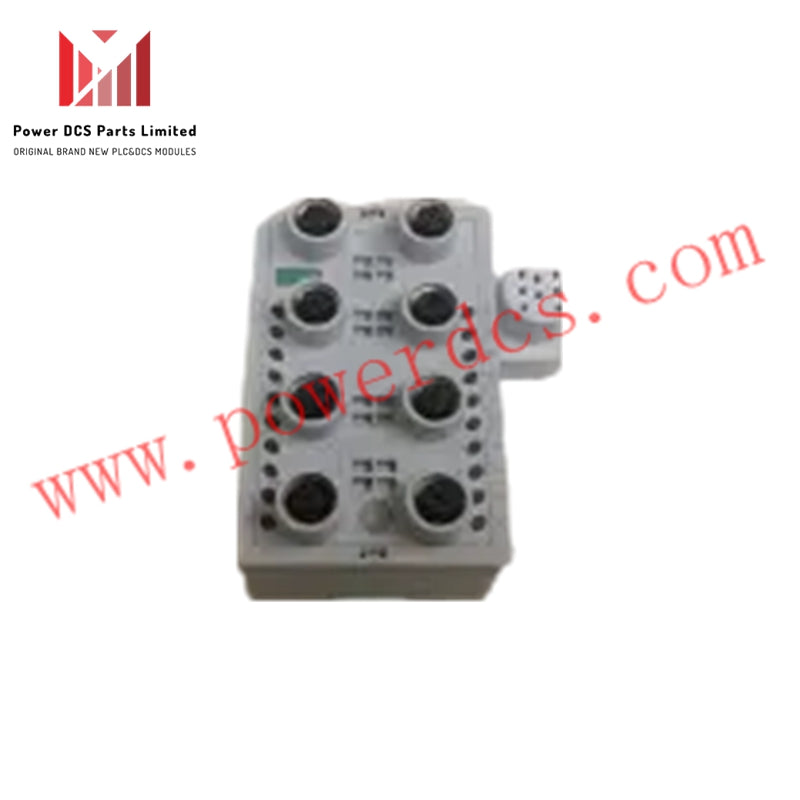

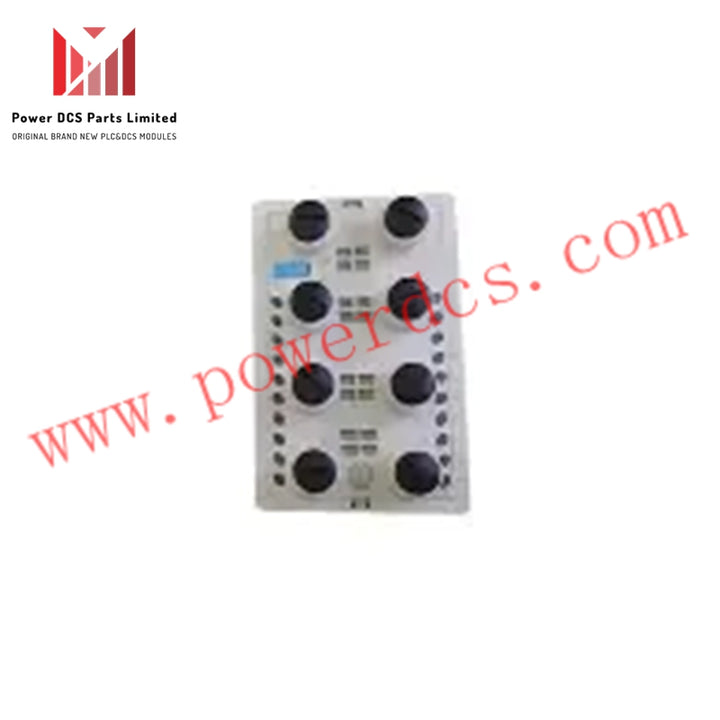

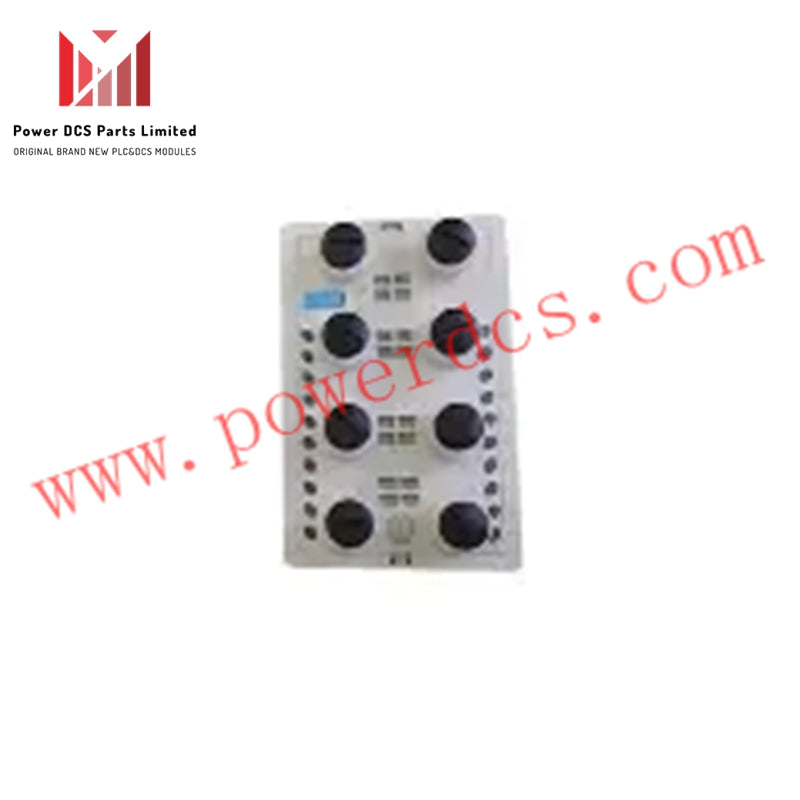

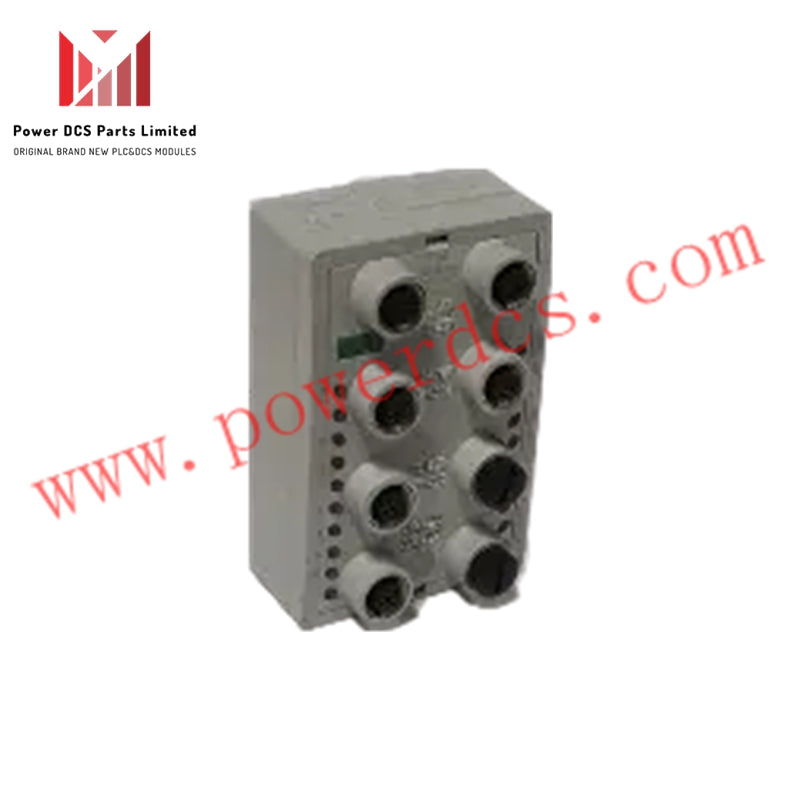

The Allen-Bradley 1738-OB16EM12 is a 16-point sourcing digital output module from the ArmorPoint I/O family. Its rugged IP67-rated enclosure allows direct machine mounting without additional enclosures. The sealed M12 connectors provide reliable connections in harsh industrial environments.

This module features 16 non-isolated digital outputs designed for discrete control. Built-in LED indicators clearly show output status and provide diagnostic information. It communicates with devices via POINTBus, consuming 2 bytes of output data while producing 2 bytes of input status.

Compatible with Studio 5000 Add-On Profiles (AOP), the 1738-OB16EM12 supports autobaud detection and explicit messaging, simplifying integration into advanced automation systems.

Key Technical Specifications

Specification Details
Model 1738-OB16EM12
Manufacturer Allen-Bradley / Rockwell Automation
Category Digital Output Module
Product Line ArmorPoint I/O
Module Type Sourcing Digital Output
Number of Channels 16
Output Voltage Range 10–28.8 V DC
Nominal Output Voltage 24 V DC
Maximum Output Current 1.0 A per channel, 4.0 A total
Output ON Voltage Drop ≤0.2 V DC
Leakage Current (OFF) ≤0.5 mA
Connector Type M12 Micro-style (8 × 5-pin)
Power Supply 24 V DC via POINTBus
POINTBus Current 150 mA @ 5 V DC
Power Dissipation 3.0 W max
Thermal Dissipation 10.3 BTU/hr max
Isolation Voltage 50 V continuous (field to system)
Environmental Rating IP65 / IP66 / IP67 / IP69K
Operating Temperature –20°C to +60°C
Storage Temperature –40°C to +85°C
Dimensions (H × W × D) 120 × 72 × 42 mm
Weight 290 g

Advantages

  • IP67-rated sealed enclosure for direct machine mounting.

  • 16 high-reliability sourcing digital outputs for industrial control.

  • LED indicators provide clear output status and diagnostics.

  • Supports autobaud detection and explicit messaging for simplified integration.

  • Compatible with Studio 5000 Add-On Profiles (AOP).

Applications

  • Direct machine mounting in harsh environments.

  • Industrial automation and control systems requiring discrete outputs.

  • Packaging, material handling, and assembly line equipment.

  • Environments where dust, water, or washdown conditions exist.

FAQ

Q1: Is the Allen-Bradley 1738-OB16EM12 new and factory-sealed?
A1: Yes, the 1738-OB16EM12 is fully original and comes brand new from the factory.

Q2: What is the maximum output current per channel?
A2: The module supports up to 1.0 A per channel and 4.0 A total per module.

Q3: Can it be installed directly on machines?
A3: Yes, the IP67-rated housing allows direct machine mounting without external enclosures.

Q4: Which software is compatible for configuration?
A4: It works with Studio 5000 Add-On Profiles (AOP) for simplified setup.

Q5: How fast can I receive this module?
A5: Orders ship within 3–14 days depending on stock and order size.

Q6: What if the product has a quality issue?
A6: We offer 30-day returns for any manufacturer defects or quality issues.
