Allen-Bradley 1738-OB8EM8 | ArmorPoint DC Output Module

Overview

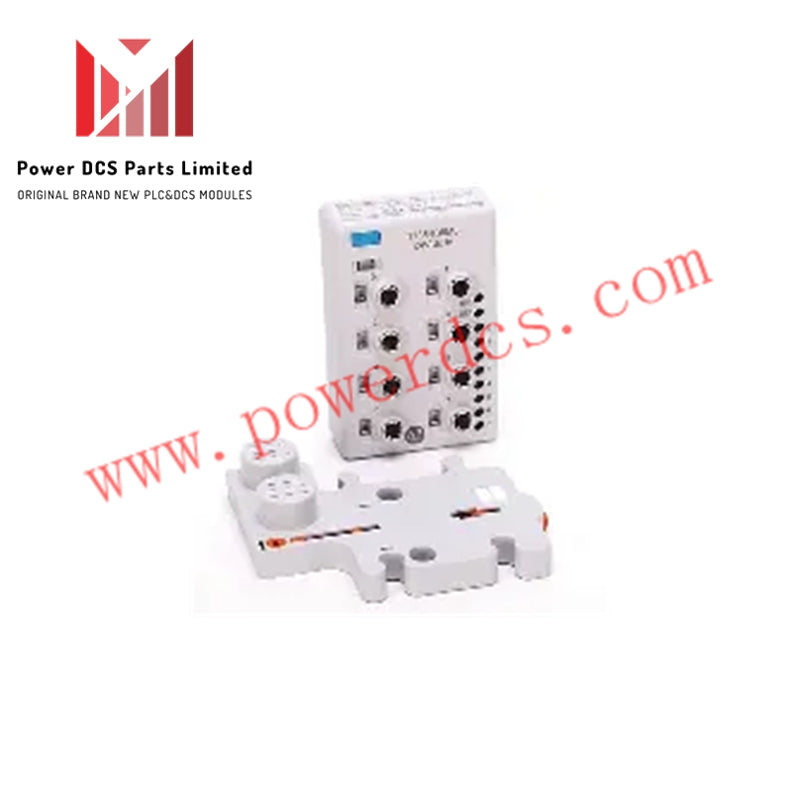

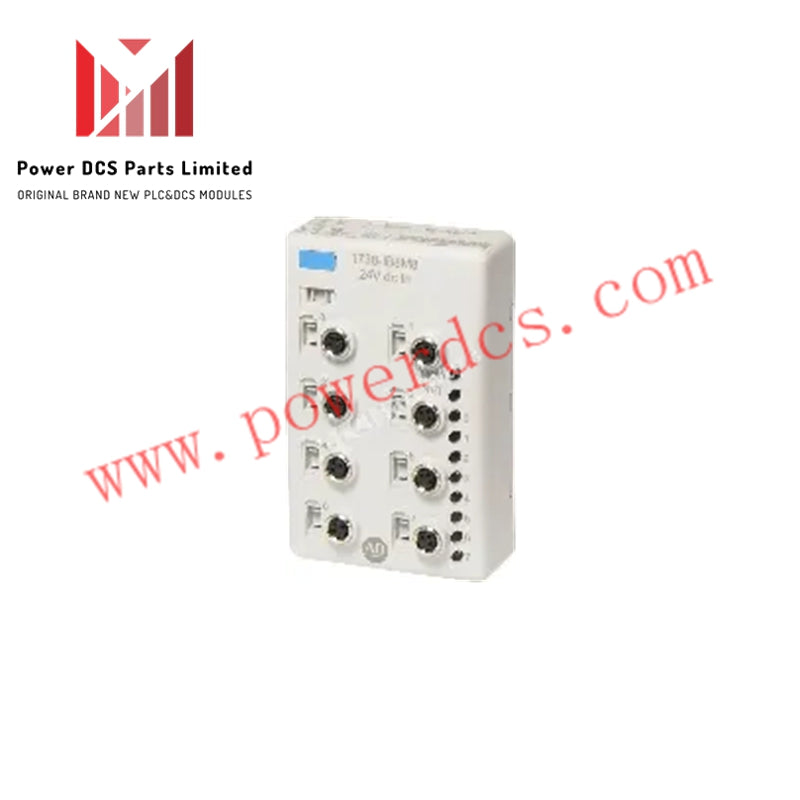

The Allen-Bradley 1738-OB8EM8 is a high-performance DC output module from the ArmorPoint series. It delivers reliable and precise output for industrial automation systems.

This module features eight non-isolated sourcing outputs, each equipped with an M8 connector for secure wiring and easy maintenance. The module operates at a nominal voltage of 24 Volts DC and supports a maximum on-state and off-state voltage of 28.8 Volts DC.

The 1738-OB8EM8 module is designed for harsh environments, with an IP67-sealed housing that ensures protection against dust and water ingress. Its operating temperature ranges from -20°C to 60°C, and it tolerates storage temperatures from -40°C to 85°C.

Certified under c-UL-us, CE, and C-Tick, this output module guarantees compliance with international safety standards. Its compact dimensions of 120 x 72 x 42 mm allow easy installation in space-constrained control panels.

Key Features

• Brand: Allen-Bradley / Rockwell Automation

• Model: 1738-OB8EM8

• Series: ArmorPoint

• Product Type: DC Output Module

• Outputs: 8 Non-Isolated Sourcing Outputs

• Connector Type: M8 (Pico)

• Nominal Voltage: 24 V DC

• Maximum Voltage (On/Off State): 28.8 V DC

• Isolation Voltage: 50 V continuous

• Housing: IP67 Sealed

• Operating Temperature: -20°C to 60°C

• Storage Temperature: -40°C to 85°C

• Certifications: c-UL-us, CE, C-Tick

• Dimensions (HxWxD): 120 x 72 x 42 mm

Technical Specifications

Advantages

• Eight M8 outputs simplify wiring and reduce installation time

• IP67 housing ensures durability in harsh industrial environments

• Compact size enables flexible panel mounting in automation systems

• Non-isolated sourcing outputs provide reliable digital control

• Compliance with international standards guarantees safe operation

FAQ

Q1: Is the Allen-Bradley 1738-OB8EM8 brand new?
A1: Yes, it is 100% original factory equipment and in stock.

Q2: How many outputs does it have?
A2: The 1738-OB8EM8 has 8 non-isolated sourcing outputs with M8 connectors.

Q3: What is the nominal voltage of this module?
A3: It operates at 24 Volts DC nominal with a maximum of 28.8 Volts DC.

Q4: What housing protection does it offer?
A4: The module is IP67 rated, making it dust-tight and waterproof.

Q5: What are the operating temperature limits?
A5: It functions between -20°C and 60°C, suitable for industrial environments.

Q6: Does it comply with safety standards?
A6: Yes, it is certified by c-UL-us, CE, and C-Tick for international compliance.
