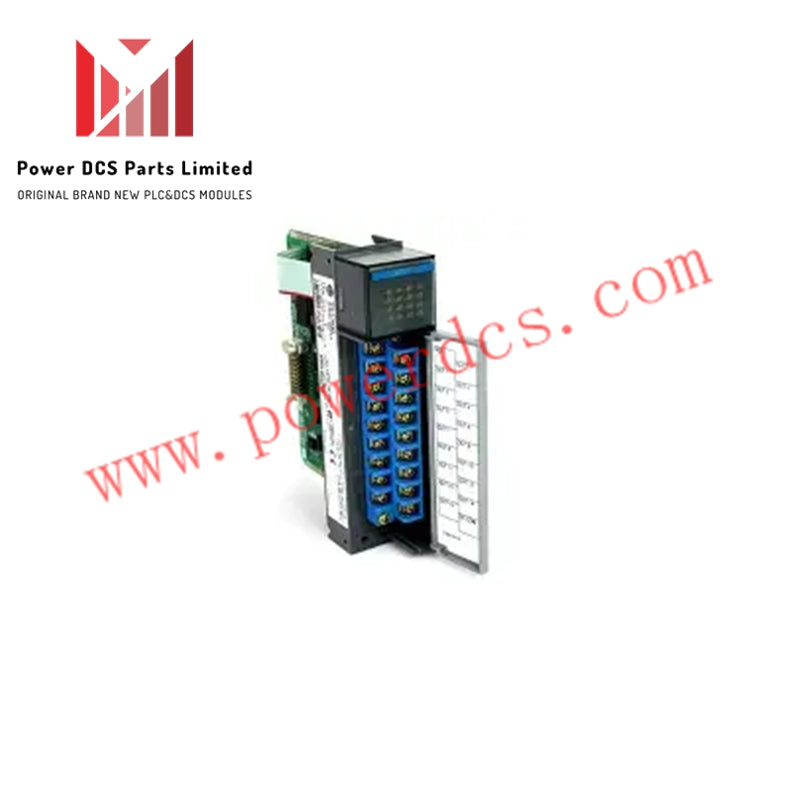

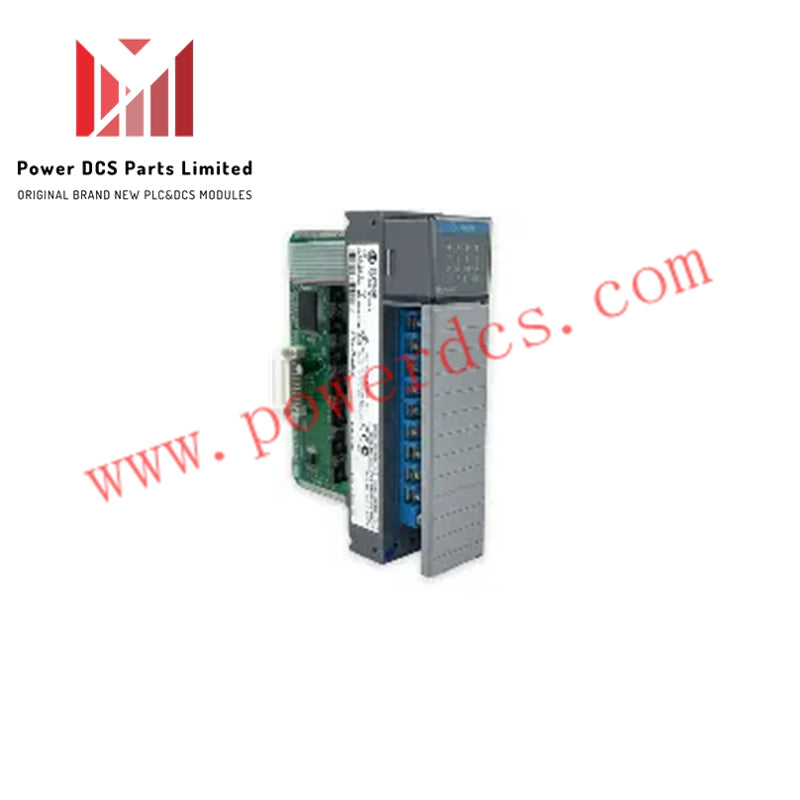

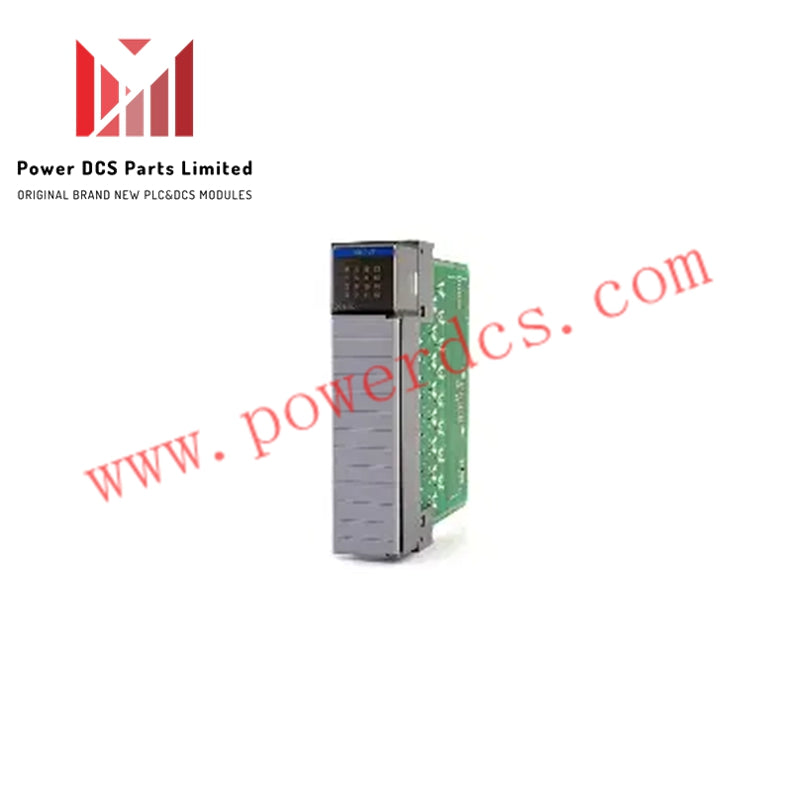

Allen-Bradley 1746-OV16 | SLC 500 Output Module

Overview

The 1746-OV16 is a high-performance discrete output module designed for industrial automation systems. It delivers reliable digital control and integrates seamlessly with Allen-Bradley SLC 500 controllers.

Electrical Specifications

• Input voltage: 24 VDC nominal, 10–50 VDC range

• Backplane current consumption: 0.270 A

• Outputs: 16 discrete sink outputs

• On-state voltage drop: 1.2 V

• Off-state leakage: 1 mA

• Continuous current per output: 0.25 A at 60°C

• Continuous current per module: 4 A at 60°C

Isolation and Safety

• Communication circuit isolation: 500 VDC

• Backplane isolation: 1500 VAC

• Processor compatibility: SLC 500

Environmental and Mechanical

• Operating temperature: 0–60°C

• Humidity range: 5–95% non-condensing

• Enclosure: Open type

• Mounting: Chassis

• Robust construction for harsh industrial environments

Features and Applications

• Provides precise digital control for machinery and processes

• Low backplane current consumption ensures efficient energy use

• Excellent isolation ensures operational safety and reliability

• Suitable for discrete manufacturing, automation lines, and industrial controls

• Integrates effortlessly with Allen-Bradley SLC 500 systems
