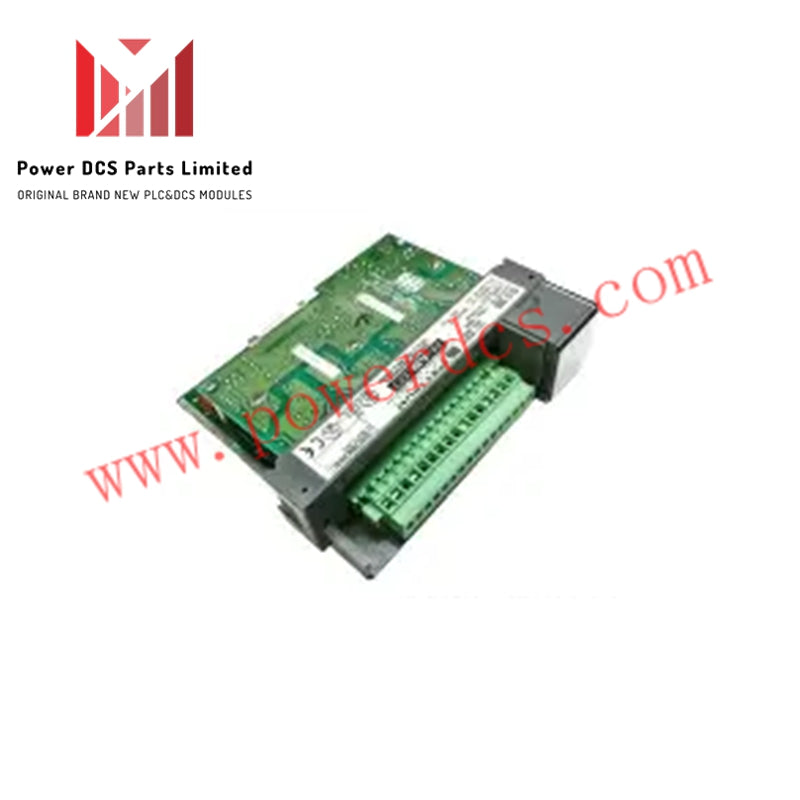

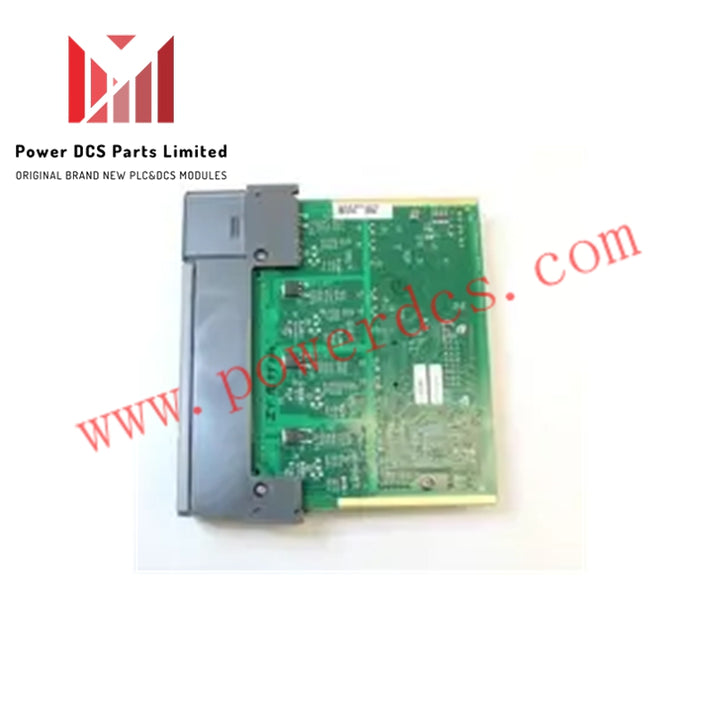

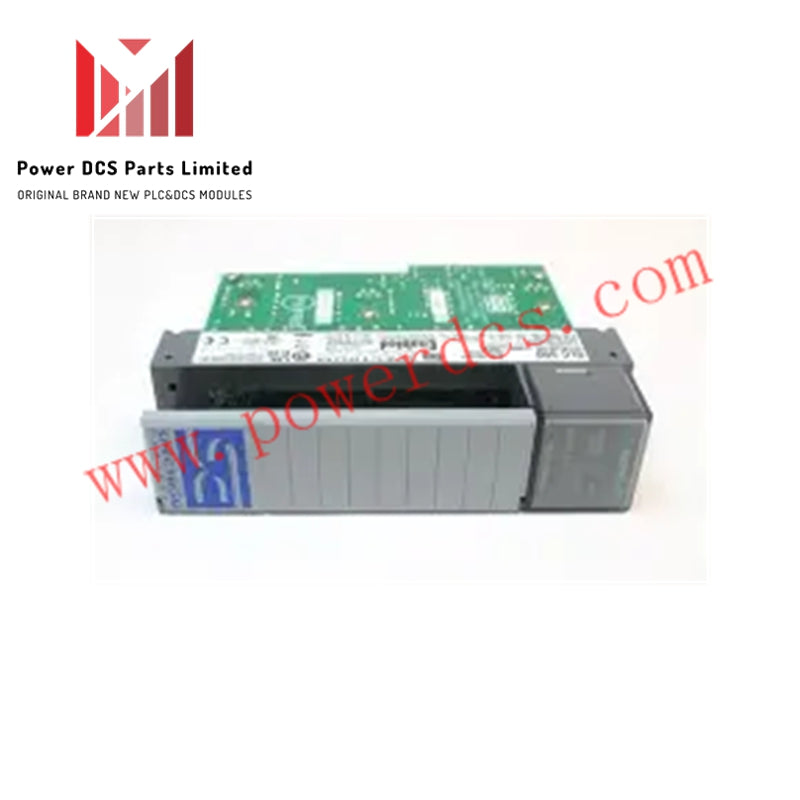

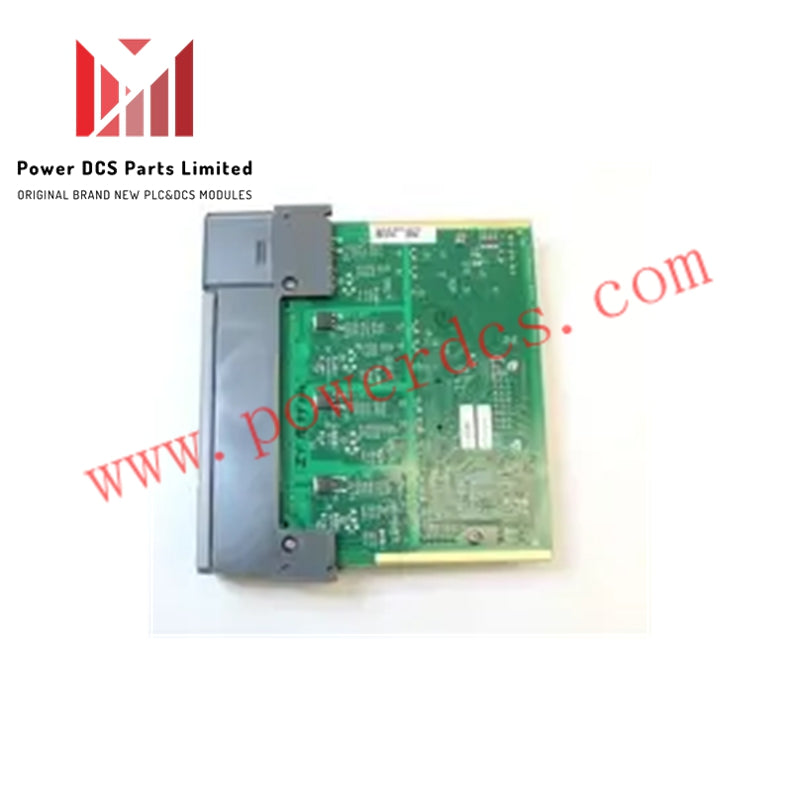

Allen-Bradley 1746SC-INO4I – Analog Output Module

Overview

The 1746SC-INO4I is an analog output module manufactured by Spectrum Controls for the Allen-Bradley SLC 500 series PLCs. This module provides high-precision analog output functionality and is suitable for a wide range of industrial automation applications, including energy, transportation, and construction. Its robust design ensures reliable operation in demanding environments.

Key Features

• Four independent, isolated channels capable of generating current signals.

• Supports multi-channel control applications with fast response and high precision.

• Compatible with Allen-Bradley SLC 500 series expansion modules.

• Suitable for industrial environments requiring durability and reliability.

• Easy to install and maintain, designed for DIN rail mounting.

• Supports multiple communication protocols, including Modbus RTU, PROFIBUS DP, and CANopen.

Technical Specifications

• Product Model: 1746SC-INO4I

• Brand: Allen-Bradley / Spectrum Controls

• Number of Channels: 4

• Output Type: Analog current output

• Output Ranges: 0-20 mA, 0-21 mA, 4-20 mA

• Resolution: 16 bits

• Isolation Voltage: 1500 Vrms

• Operating Temperature: -40°C to +85°C

• Power Supply Voltage: 24V DC

• Installation Method: DIN rail

• Certifications: UL, CE

• Dimensions: 233 mm × 167 mm × 64 mm

• Weight: 0.5 kg

• Warranty: 1 year

The 1746SC-INO4I is a high-performance analog output module that delivers precision, reliability, and compatibility for industrial automation systems, making it an ideal solution for applications requiring accurate analog signal control.
