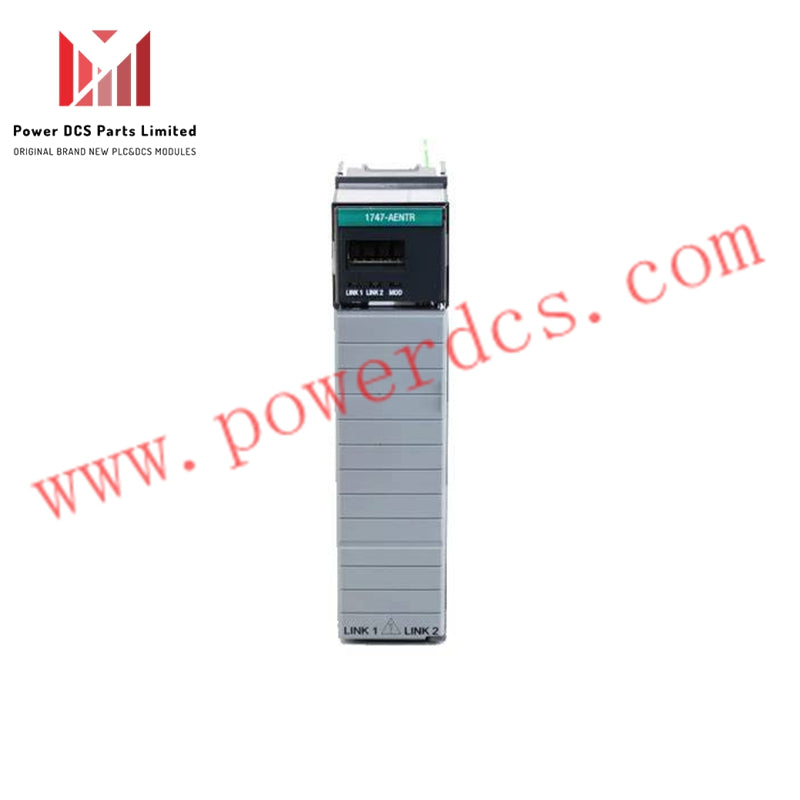

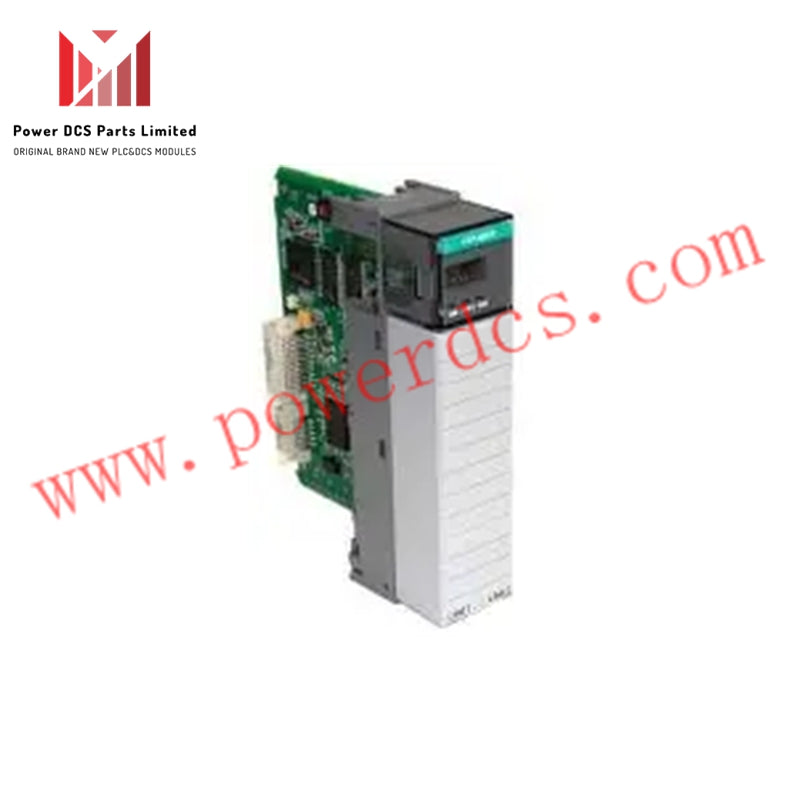

Allen-Bradley 1747-AENTR | SLC 500 Ethernet/IP Adapter Module

Specifications

  • Manufacturer: Allen Bradley

  • Product No.: 1747-AENTR

  • Condition： 10 Items in Stock

  • Product Type: I/O Terminal Base Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 530g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Overview

The Allen-Bradley 1747-AENTR is an Ethernet/IP communication adapter designed for SLC 500 migration projects. It connects SLC I/O modules to CompactLogix or ControlLogix processors, acting as a reliable gateway between the legacy SLC rack and modern Logix controllers. With dual Ethernet ports and multiple topology support, the 1747-AENTR provides flexible integration in demanding automation environments.

Technical Specifications

Specification Details
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number 1747-AENTR
Product Type Ethernet/IP Adapter Module
Series SLC 500
Location Slot 0
Operating Temperature 0 to 60 °C (32 to 140 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Relative Humidity 5–95% non-condensing
Isolation Voltage 50 V continuous
Dimensions (W x H x D) 145.3 x 34.8 x 130.8 mm
Weight 0.37 lbs (168 g)
Current Consumption 470 mA at 5 VDC
Thermal Dissipation 2.49 W
Ethernet Ports Two (2) RJ-45, Category 5
Speed and Duplex 10/100 Mbps; Half or Full Duplex
Supported Topologies Linear, Star, Tree, and Ring
Enclosure Open (IP20)

Key Features

  • The 1747-AENTR enables seamless migration from legacy SLC controllers to modern Logix platforms.

  • Dual RJ-45 ports support flexible Ethernet topologies such as ring, star, and linear networks.

  • With compact dimensions of 5.72 x 1.37 x 5.15 inches, it integrates easily into existing racks.

  • Its 470 mA backplane current draw and 2.49 W thermal dissipation ensure efficient operation.

  • Designed with 50 V isolation voltage, it protects against electrical faults in industrial setups.

  • Operating temperature range from 0 to 60 °C guarantees reliability in factory environments.

Applications

The Allen-Bradley 1747-AENTR adapter module is widely used in system upgrades, where users need to retain existing SLC I/O while migrating to Logix controllers. Its Ethernet/IP capability provides real-time data exchange, reduces wiring complexity, and extends the lifecycle of automation investments.

FAQ

Q1: Is the Allen-Bradley 1747-AENTR new and original?
Yes, all our units are 100% brand new, factory-sealed, and sourced directly from Allen-Bradley.

Q2: Do you have stock available for the 1747-AENTR?
Yes, we keep inventory. Orders typically ship within 3 days to 2 weeks, depending on size.

Q3: How many Ethernet ports does the 1747-AENTR include?
It comes with two RJ-45 ports that support 10/100 Mbps, half or full duplex.

Q4: What topologies are supported by the 1747-AENTR?
The module supports linear, tree, star, and ring Ethernet network configurations.

Q5: What is the current consumption of the 1747-AENTR?
It draws 470 mA at 5 VDC, with a thermal dissipation of 2.49 W.

Q6: Can the 1747-AENTR be used outdoors?
No, it has an open enclosure (IP20 rating) and must be installed in a protected environment.
