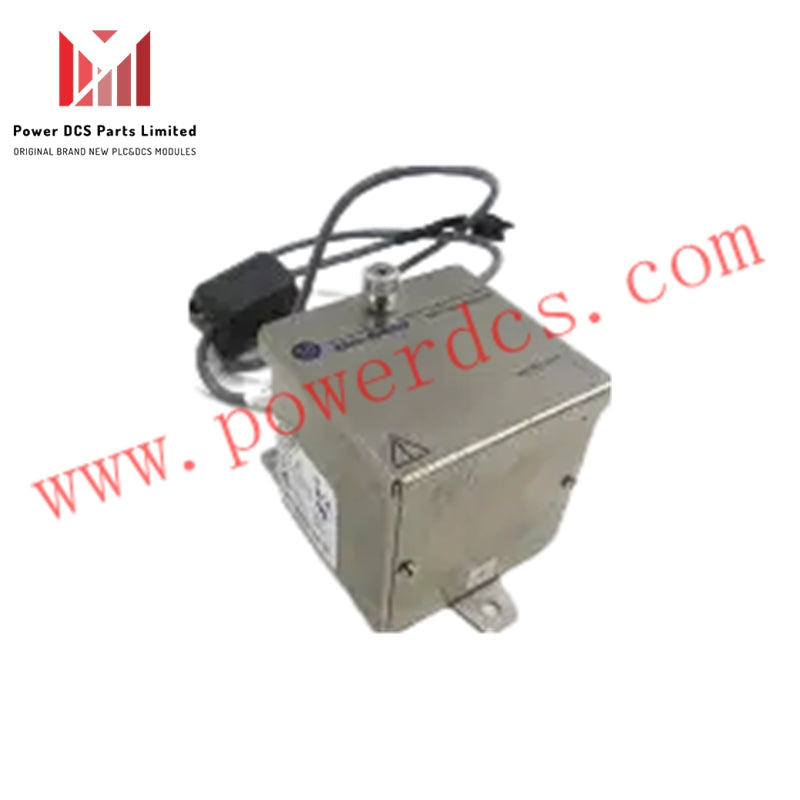

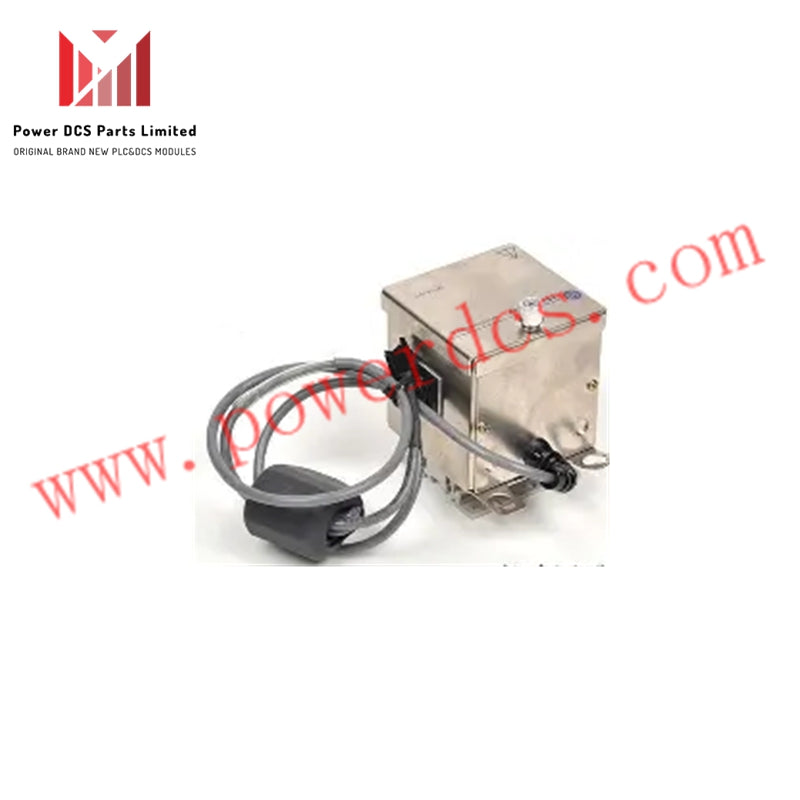

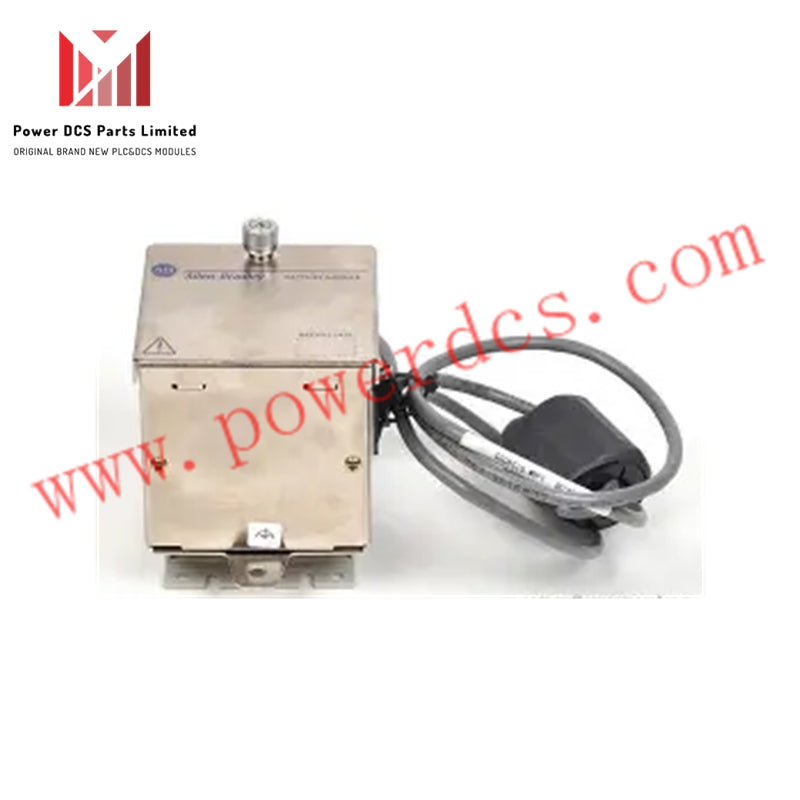

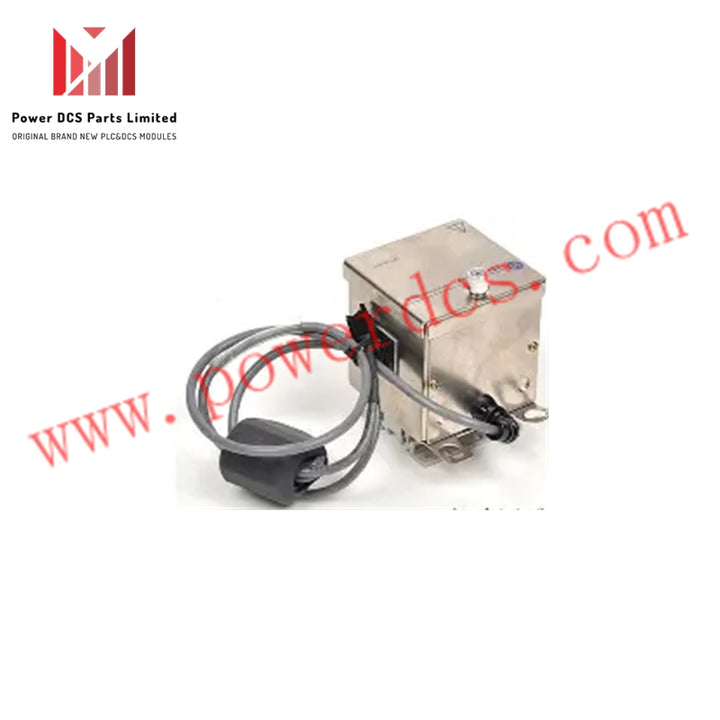

Allen-Bradley 1756-BATM ControlLogix Lithium Battery Assembly

Product Overview

The Allen-Bradley 1756-BATM is a lithium battery assembly designed for ControlLogix systems. It ensures uninterrupted memory backup and reliable controller operation across compatible 1756 series processors, including 1756-L55M14, -L55M16, and -L6x models.

Featuring a compact, lightweight design at 2.38 lbs (1.08 kg), the 1756-BATM supports panel or DIN rail mounting, making installation flexible for various industrial environments. It integrates a single 1756-BATA lithium battery with a 3.28-foot cable for seamless connectivity to the controller.

The module operates efficiently, consuming 15mA at 5.1V DC input and delivering 20mA at 3.6V DC output, with a maximum battery discharge current of 20mA. Its rugged construction withstands industrial conditions, including shock ratings up to 30G panel-mounted and 15G DIN rail-mounted, as well as vibration up to 2.0G at 10–500Hz.

Technical Specifications

Key Features

• Reliable Backup Power: Provides stable 3.6V DC output for memory retention.

• Flexible Mounting Options: Panel-mounted or DIN rail installation for versatile deployment.

• Industrial Durability: Shock and vibration rated for demanding environments.

• Easy Integration: Compatible with multiple ControlLogix processors for seamless operation.

• Lightweight Design: Minimal footprint reduces space requirements in control cabinets.

Applications

The 1756-BATM is commonly used in:

• ControlLogix PLC systems requiring memory backup.

• Industrial automation environments needing uninterrupted processor operation.

• Manufacturing lines where reliable battery power ensures consistent performance.

• Retrofit or replacement projects for existing ControlLogix controllers.

FAQs

Q1: Which ControlLogix processors are compatible with the 1756-BATM?
It supports 1756-L55M14, -L55M16, and -L6x series processors.

Q2: How is the battery module mounted?
The 1756-BATM can be mounted directly on a panel or a DIN rail.

Q3: What is the maximum battery output current?
The maximum discharge current is 20mA at 3.6V DC.

Q4: Are these modules brand new and original?
Yes, all Allen-Bradley 1756-BATM units are 100% new, original, and factory-sealed.

Q5: What is the shipping timeline?
We ship within 3 days to 2 weeks, depending on order size and shipping method (commonly DHL or FedEx).

Q6: Is there a return policy for quality issues?
We offer a 30-day return policy for any quality-related concerns.
