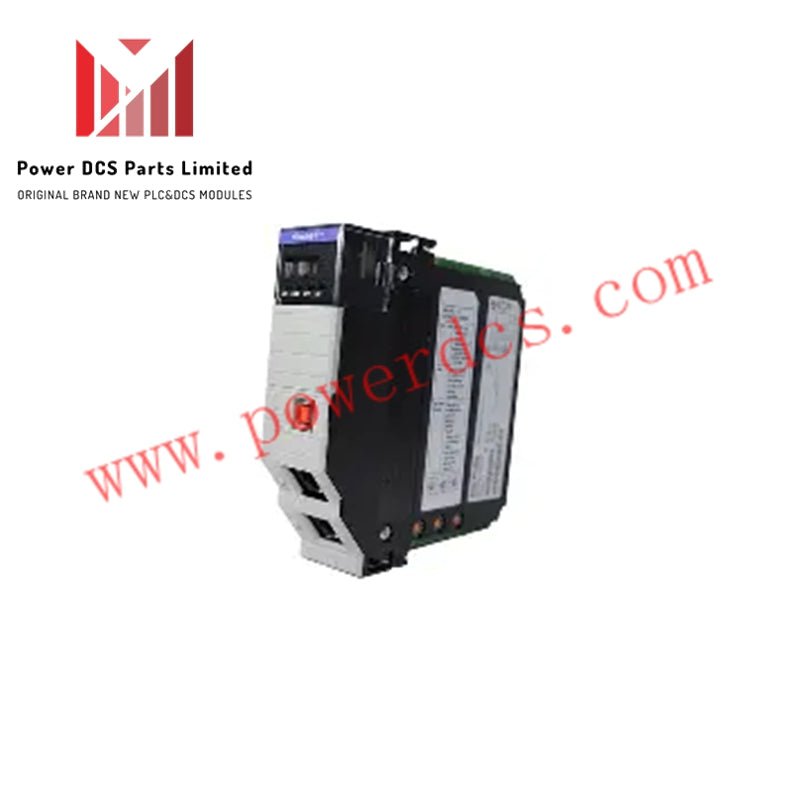

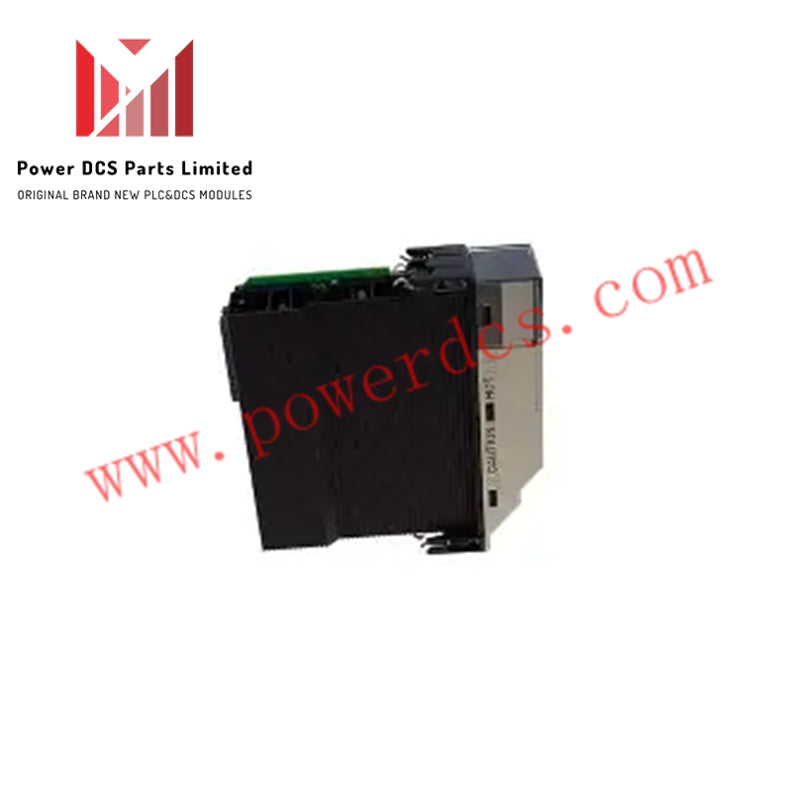

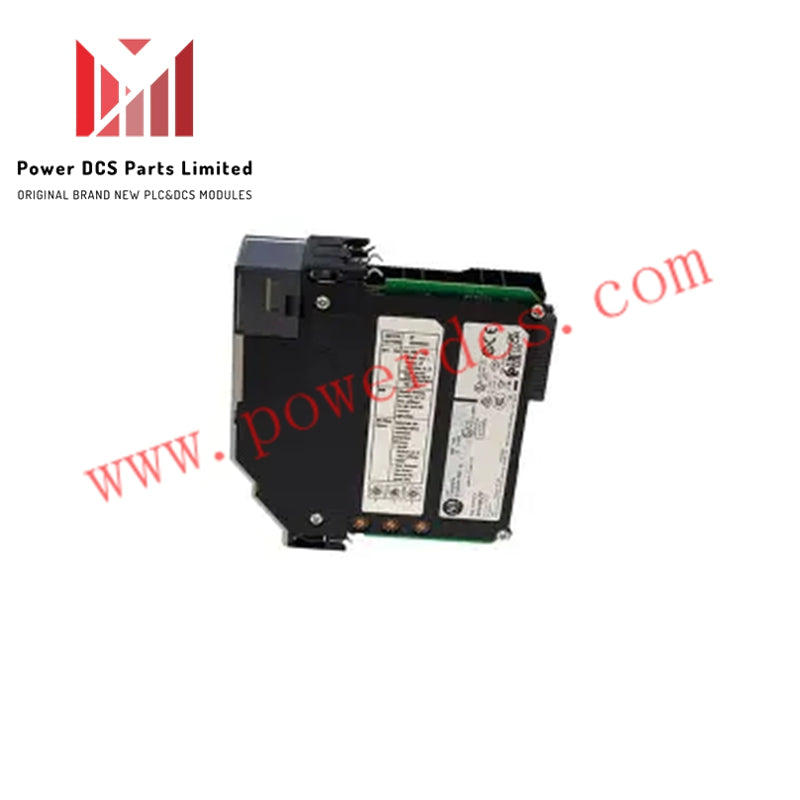

Allen-Bradley 1756-EN2T | ControlLogix Ethernet Communication Module

Overview

The Allen-Bradley 1756-EN2T is an Ethernet communication module designed for ControlLogix systems. It enables high-speed data transfer across Ethernet-IP networks, supporting communication rates from 10 to 100 megabits per second, making it ideal for modern industrial automation.

Technical Specifications

• Catalog Number: 1756-EN2T

• Module Type: Ethernet Communication Module for ControlLogix

• Ethernet-IP Speed: 10–100 Mbps

• Current Draw: 1 A

• Current Rating: 1.2 A

• Insulation Voltage: 30 Volts Continuous

• Thermal Dissipation: 21.28 BTU per hour

• Location: Fits any chassis slot

• Slot Width: 1

Key Features

The 1756-EN2T ensures reliable connectivity within industrial Ethernet networks. It supports flexible chassis installation, occupying only one slot width, while its robust insulation protects against electrical faults.

Efficient thermal management allows the module to dissipate 21.28 BTU per hour, maintaining performance during continuous operation. The module's current draw of 1 A and rating of 1.2 A accommodate the needs of connected devices without overloading the system.

Industrial Applications

The Allen-Bradley 1756-EN2T is widely used in industrial automation, including process control, machine monitoring, and factory network integration. Its high-speed Ethernet capability and ControlLogix compatibility make it critical for real-time data exchange and networked system efficiency.
