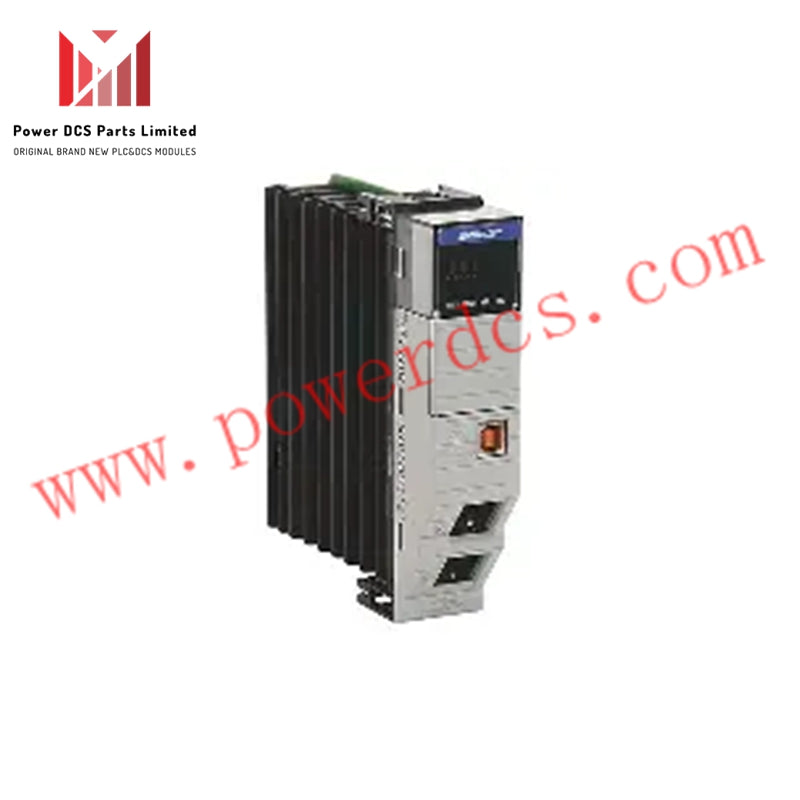

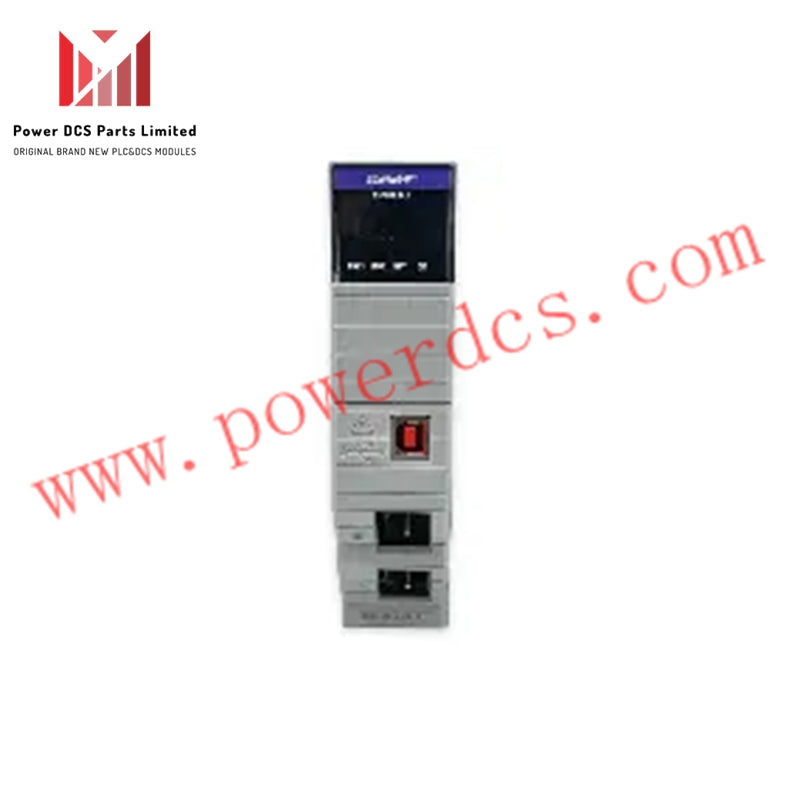

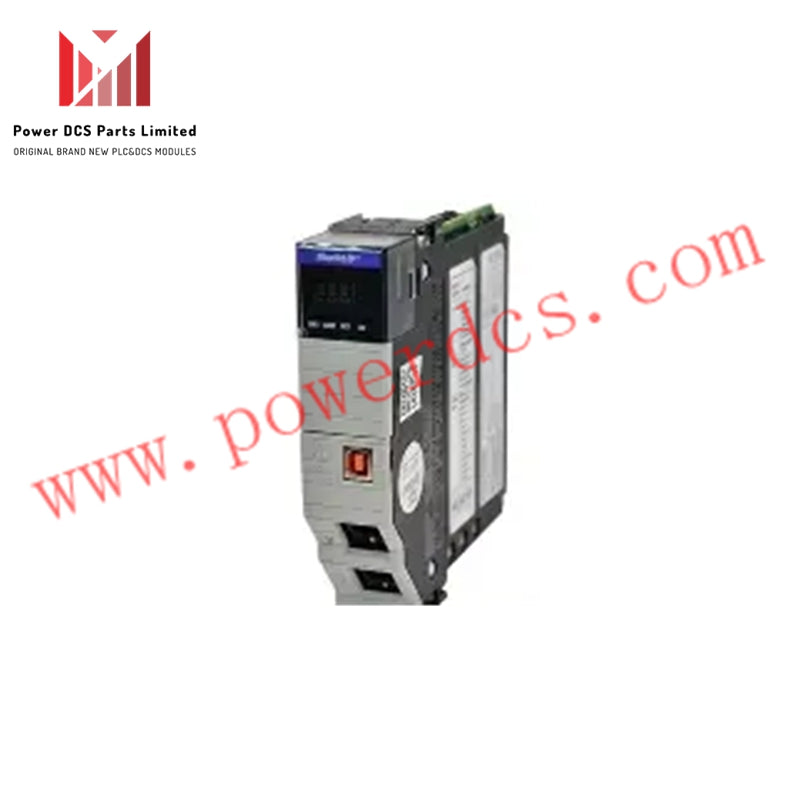

Allen-Bradley 1756-EN2TR | ControlLogix EtherNet/IP Communication Module

Product Overview

The Allen-Bradley 1756-EN2TR is a high-performance EtherNet/IP communication module designed for seamless integration into ControlLogix automation systems. It enables fast, reliable, and flexible communication between devices, supporting real-time data exchange for improved operational efficiency.

This module supports up to eight connected devices simultaneously, accommodating both copper and fiber-optic connections for maximum adaptability. Its high-speed data transfer of up to 1 Gbps ensures accurate information flow, which accelerates decision-making and enhances system responsiveness.

Built-in diagnostic capabilities provide detailed network health information, allowing operators to identify and resolve issues proactively. The 1756-EN2TR is optimized for harsh industrial environments and is suitable for complex systems that demand high data throughput.

Key Specifications

Features and Benefits

• Multi-Device Support: Connect up to eight devices simultaneously for greater system flexibility.

• High-Speed Data Transfer: 1 Gbps bandwidth ensures fast and accurate communication.

• Flexible Connectivity: Supports both copper and fiber-optic cabling.

• Advanced Diagnostics: Monitors network health for rapid troubleshooting.

• Industrial Compatibility: Designed to operate in demanding automation environments.

• Seamless Integration: Compatible with ControlLogix systems for simplified deployment.

Applications

• Industrial automation requiring real-time device communication.

• Large-scale control systems with multiple Ethernet devices.

• High-volume data transfer environments in manufacturing plants.

• Integration with ControlLogix systems for scalable automation.

FAQ

Q1: How many devices can the 1756-EN2TR support?
It supports up to eight devices simultaneously via Ethernet/IP connections.

Q2: What is the data transfer rate?
The module can transmit data at up to 1 Gbps.

Q3: Which ports are available on the module?
It includes 2 Copper RJ45 ports (10/100 Mbps) and 1 USB local programming port.

Q4: What temperature range does it operate in?
It operates from 0 to 60 °C (32–140 °F).

Q5: Is it compatible with fiber-optic networks?
Yes, the module supports both copper and fiber-optic cabling for flexible connectivity
