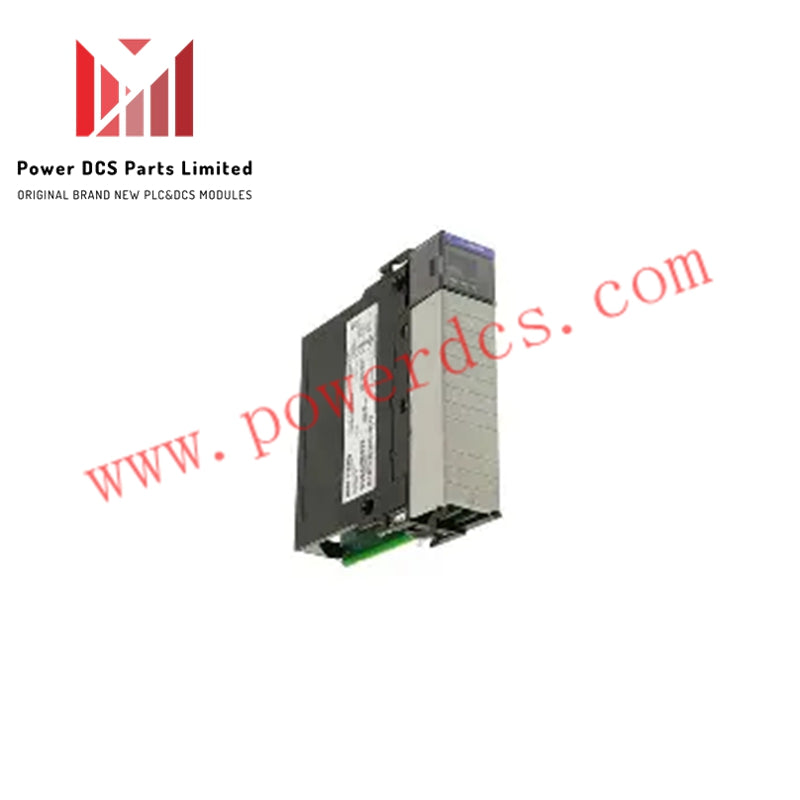

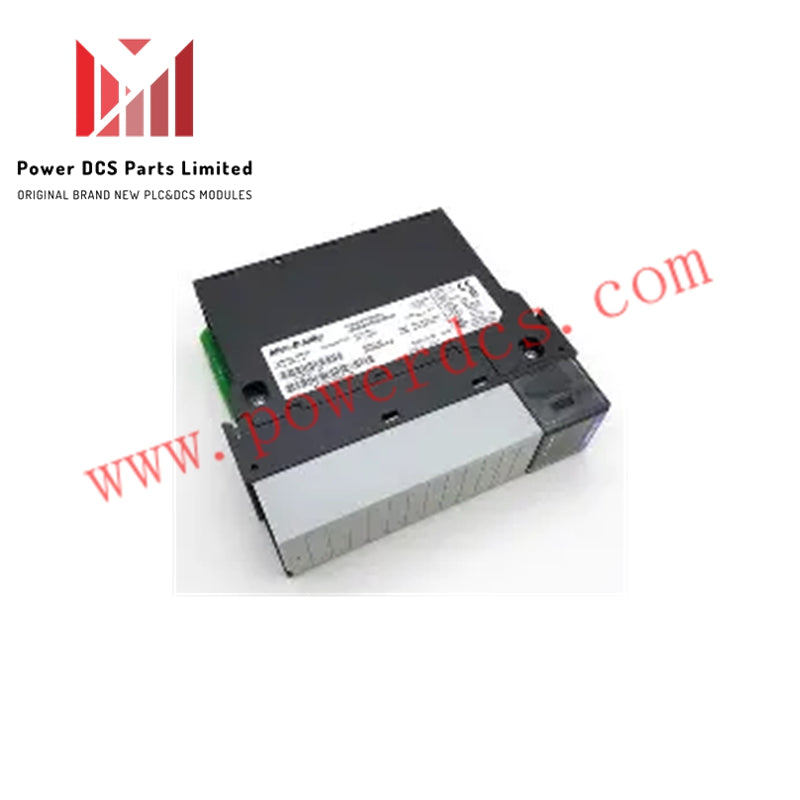

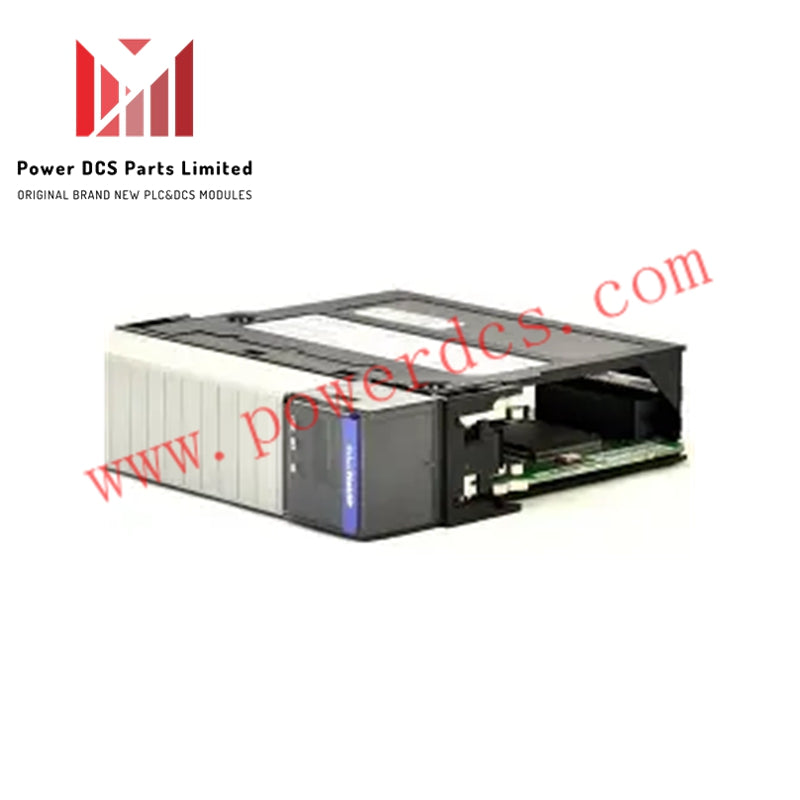

Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP Communication Module

Overview

The Allen-Bradley 1756-ENBT/A is an advanced EtherNet/IP communication module designed for the ControlLogix platform. It provides seamless integration of industrial control systems with Ethernet networks, ensuring reliable and high-speed data transmission.

Technical Specifications

• Model: 1756-ENBT/A

• Brand: Allen-Bradley (A-B)

• Communication Protocol: EtherNet/IP

• Module Type: ControlLogix

• Operating Voltage: 24 VDC

• Power Consumption: 5 W

• Communication Speed: 10/100 Mbps

• Data Transfer Rate: Up to 100 Mbps

• Number of Ports: 1

Key Features and Benefits

• Real-Time Communication: Enables efficient data exchange between devices and control systems over Ethernet networks.

• Advanced Functions: Supports cyclic data transfer and event-driven messaging for optimized performance.

• Reliable Performance: Ensures robust operation in demanding industrial environments.

• Versatile Applications: Suitable for manufacturing, process control, and other automation applications.

• Ease of Use: Simplified installation and maintenance reduce downtime and enhance system reliability.
