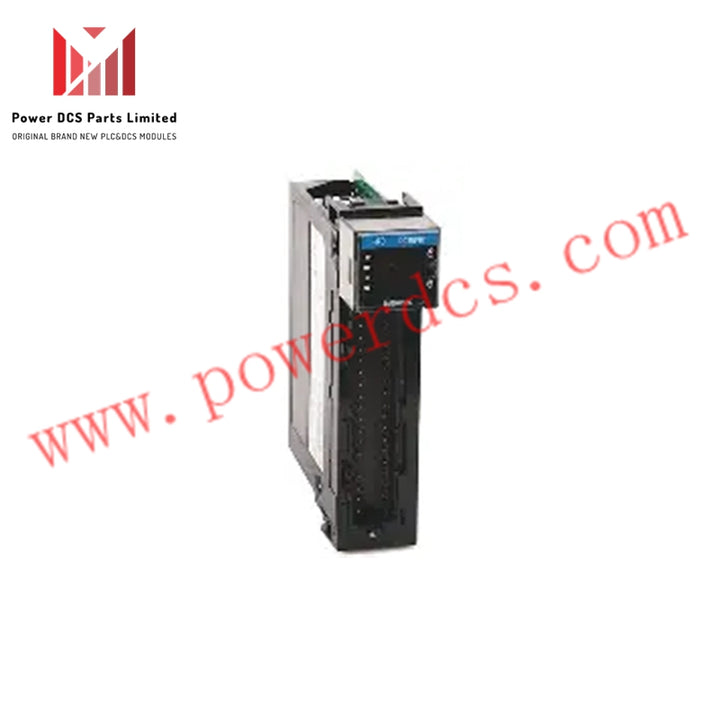

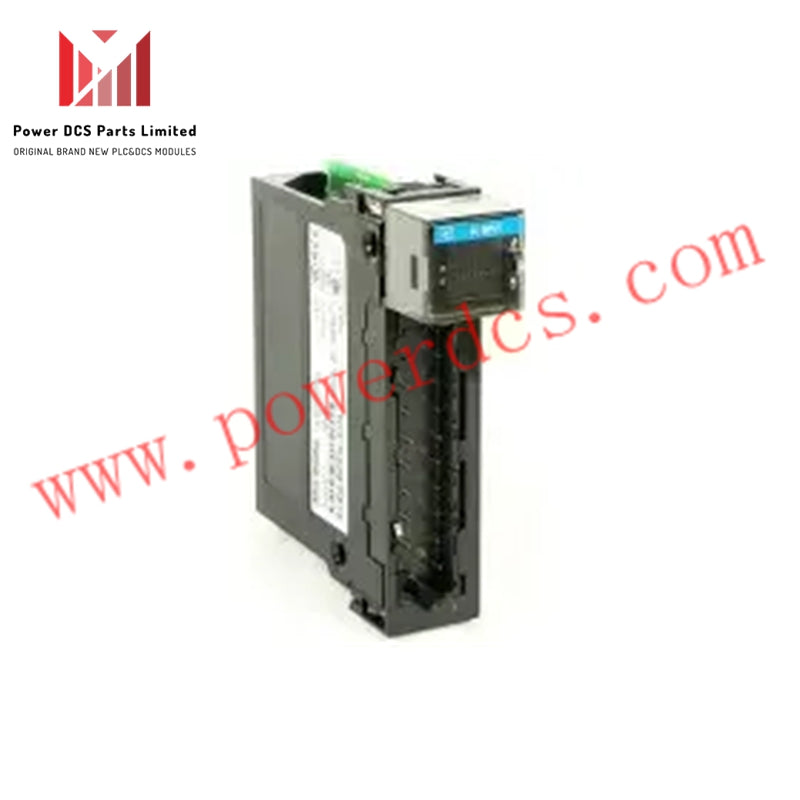

Allen-Bradley 1756-IB16DK ControlLogix Digital DC Input Module

Overview

The Allen-Bradley 1756-IB16DK is a high-performance Digital DC Input Module from the ControlLogix series, designed for precise diagnostic and control functions in industrial automation. This module offers 16 diagnostic inputs, making it ideal for a wide range of applications requiring real-time monitoring and input signal processing.

Operating within a voltage range of 10-30V DC, the 1756-IB16DK ensures reliable and stable operation even in demanding environments. The module supports 12-24 Volts DC Sink input voltage and has an input delay time of just 4 milliseconds, offering fast response times for time-sensitive applications. The design of this module ensures that it is energy-efficient, drawing a minimum current of 2 milliamperes at 10 Volts DC, with a maximum current draw of 13 milliamperes at 30 Volts DC.

Designed with ease of use in mind, the 1756-IB16DK features removable terminal blocks (1756-TBCH, 1756-TBS6H) for hassle-free wiring and maintenance. It provides a power dissipation of 5.8 Watts at 60°C and offers a maximum input current in the off-state of 1.5 milliamperes per point, contributing to low energy consumption.

Technical Specifications

Features

• 16 Diagnostic Inputs: The 1756-IB16DK supports 16 inputs, allowing for precise diagnostics and efficient control operations in industrial settings.

• Fast Response Time: With a delay time of only 4 milliseconds, this module ensures quick and reliable input processing.

• Energy Efficient: The module operates with minimal power dissipation, consuming just 5.8 Watts at 60°C.

• Wide Voltage Range: It works within a 10-30V DC operating voltage range, making it suitable for various industrial control systems.

• Removable Terminal Blocks: The 1756-IB16DK is equipped with removable terminal blocks (1756-TBCH, 1756-TBS6H) for easy installation and maintenance.

FAQ

1. What is the voltage range for the Allen-Bradley 1756-IB16DK?
The 1756-IB16DK operates within a voltage range of 10-30 Volts DC, providing flexibility for different industrial control setups.

2. How many diagnostic inputs does the 1756-IB16DK support?
The module supports 16 diagnostic inputs, offering real-time monitoring and diagnostic capabilities for improved system performance.

3. What is the power dissipation of the 1756-IB16DK?
The 1756-IB16DK has a maximum power dissipation of 5.8 Watts when operating at 60°C.

4. Does the 1756-IB16DK come with removable terminal blocks?
Yes, the 1756-IB16DK comes with removable terminal blocks (1756-TBCH, 1756-TBS6H) for easy installation and maintenance.

5. What is the current draw of the 1756-IB16DK at maximum voltage?
The maximum current draw of the 1756-IB16DK is 13 milliamperes at 30 Volts DC.
