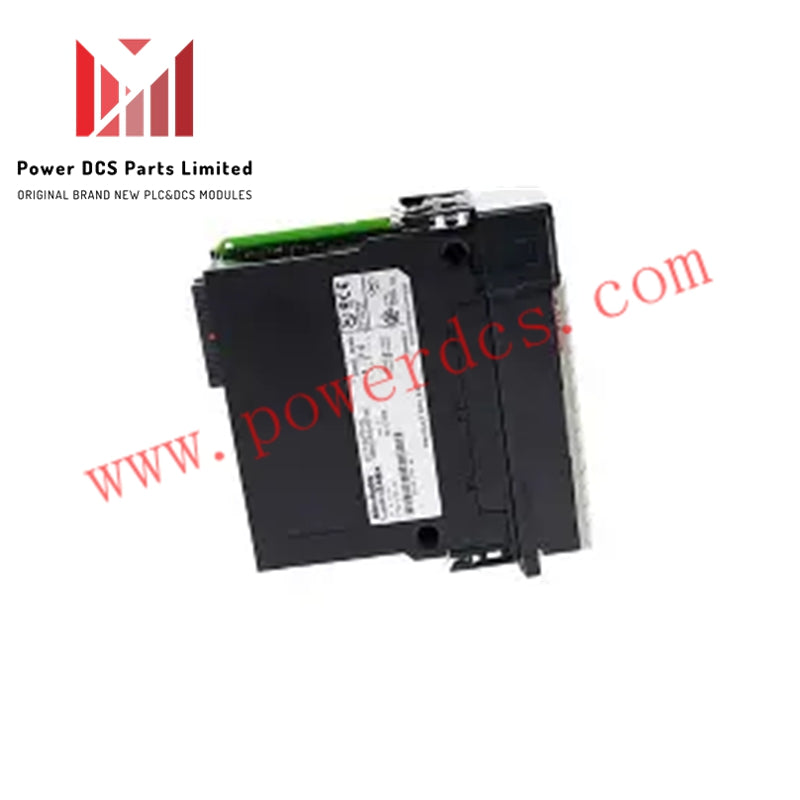

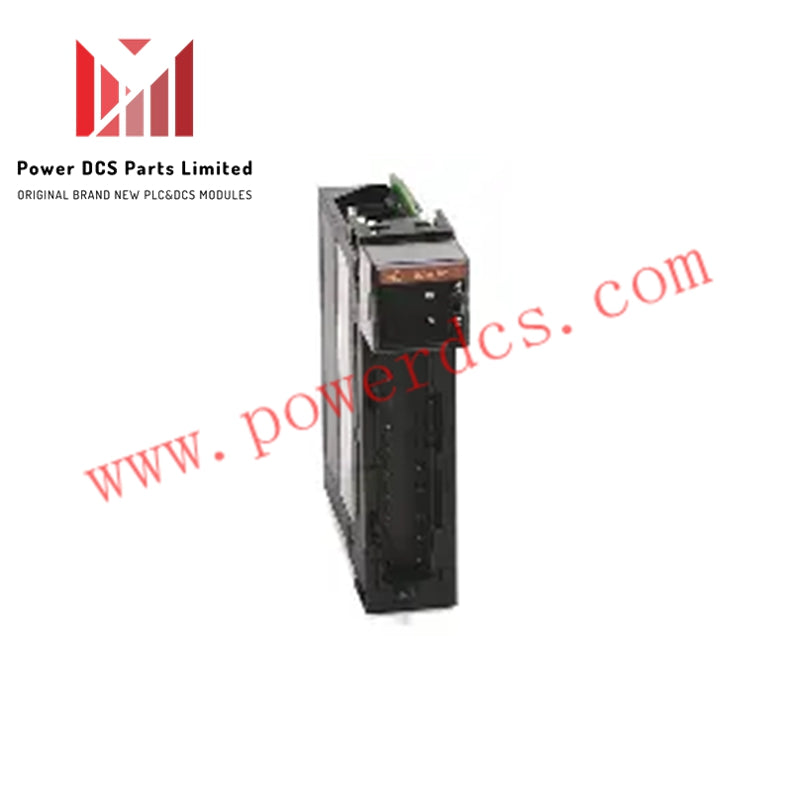

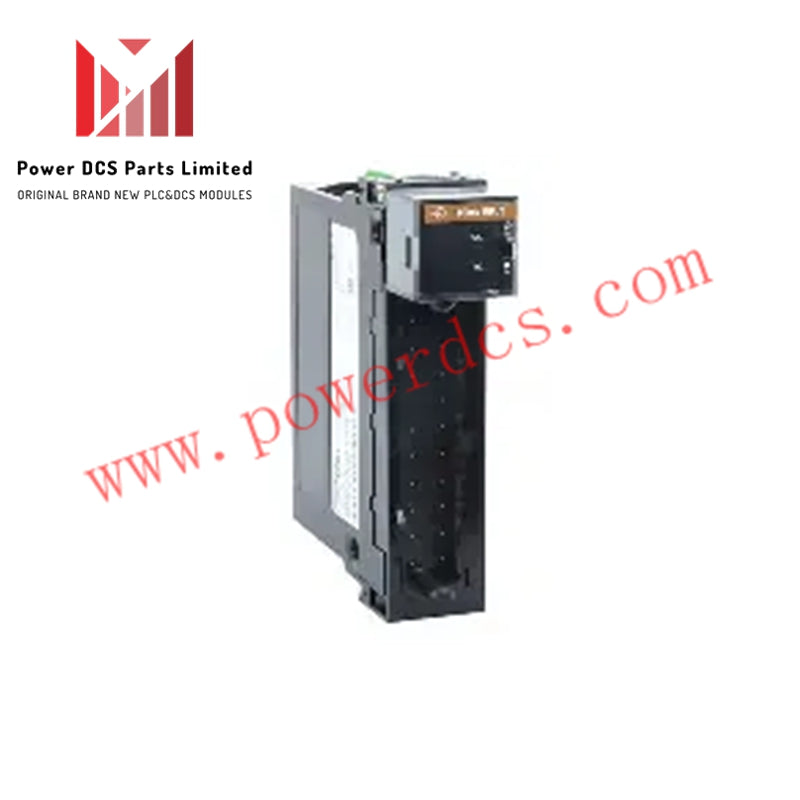

Allen Bradley 1756-IT6I ControlLogix Analog Input Module

Manufacturer: Allen Bradley
Product Number: 1756-IT6I
Condition: Brand NEW & in Stock
Product Type: ControlLogix Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Warranty: 12 months
Dimensions: 421 x 326 x 112 mm
Weight: 0.89 kg

Overview

The Allen Bradley 1756-IT6I is a specialized analog input module designed for ControlLogix systems. It is optimized to acquire signals from various thermocouples and millivolt sources. Featuring six individually isolated channels, this module ensures precise temperature measurement and control for industrial applications.

Key Features and Specifications

Thermocouple Compatibility:

• Supports a wide range of thermocouple types including B, E, J, K, R, S, T, N, C, D, and L (TXK/XK).

• Provides accurate readings across diverse temperature ranges.

Input Channels:

• Six individually isolated channels allow flexible application design.

Resolution:

• 16-bit resolution for high-precision measurements.

• Typical range: 1.4 microvolts per bit for -12 to 78 millivolts.

• High-resolution range: 0.7 microvolts per bit.

Isolation:

• Each channel is isolated to prevent signal interference.

Compatibility:

• Designed for seamless integration with Allen Bradley ControlLogix systems.

Applications

Typical applications for the 1756-IT6I include:

• Process Control: Monitoring and controlling temperature in manufacturing processes.

• Temperature Monitoring: Tracking temperature in ovens, furnaces, and other equipment.

• Industrial Automation: Integrating temperature measurements into automated systems.

Benefits

Versatility:

• Handles a wide range of thermocouple types.

Accuracy:

• Provides precise measurements with high resolution.

Reliability:

• Rugged industrial design ensures dependable performance.

Flexibility:

• Individual channel isolation supports customized applications.

Compatibility:

• Integrates seamlessly with ControlLogix systems.
