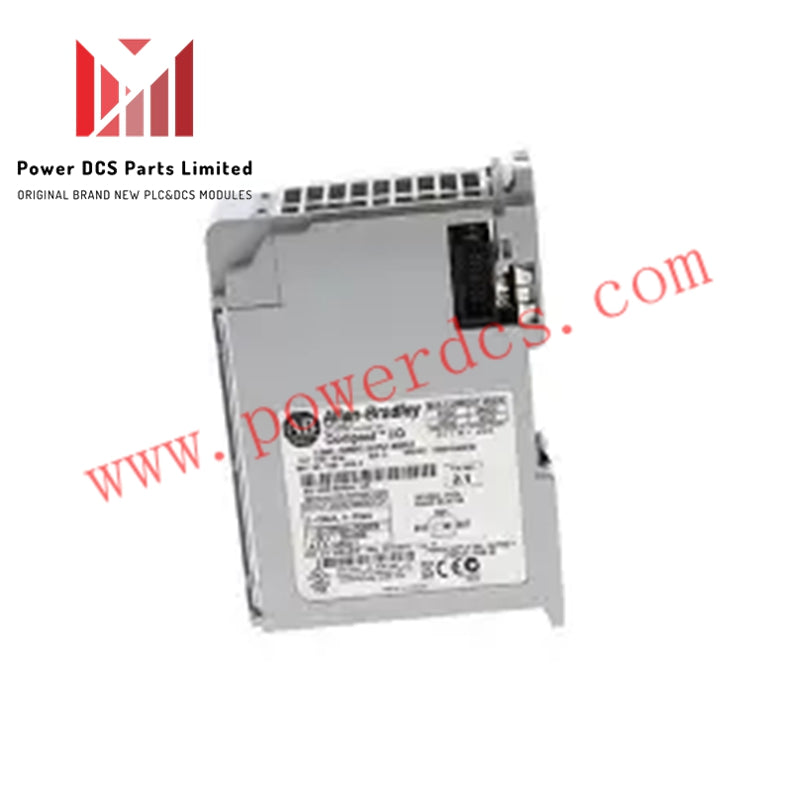

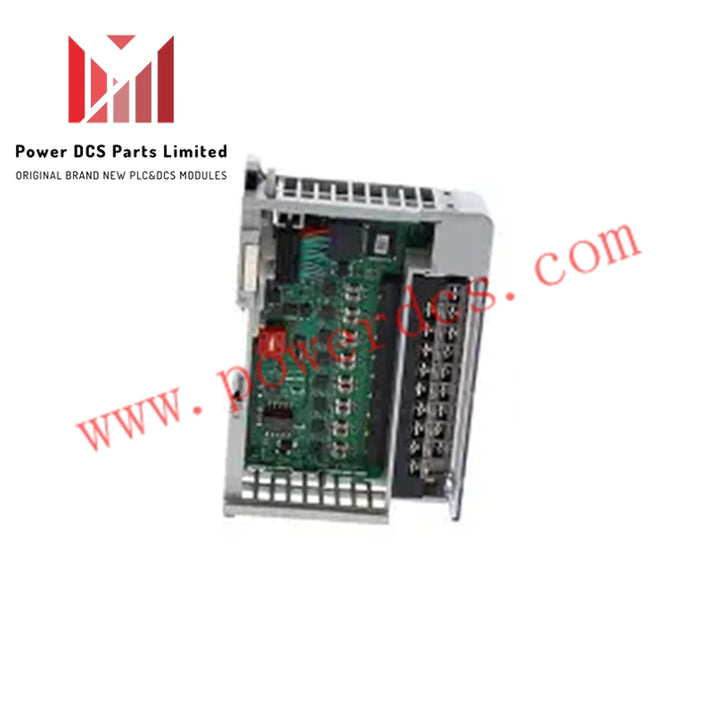

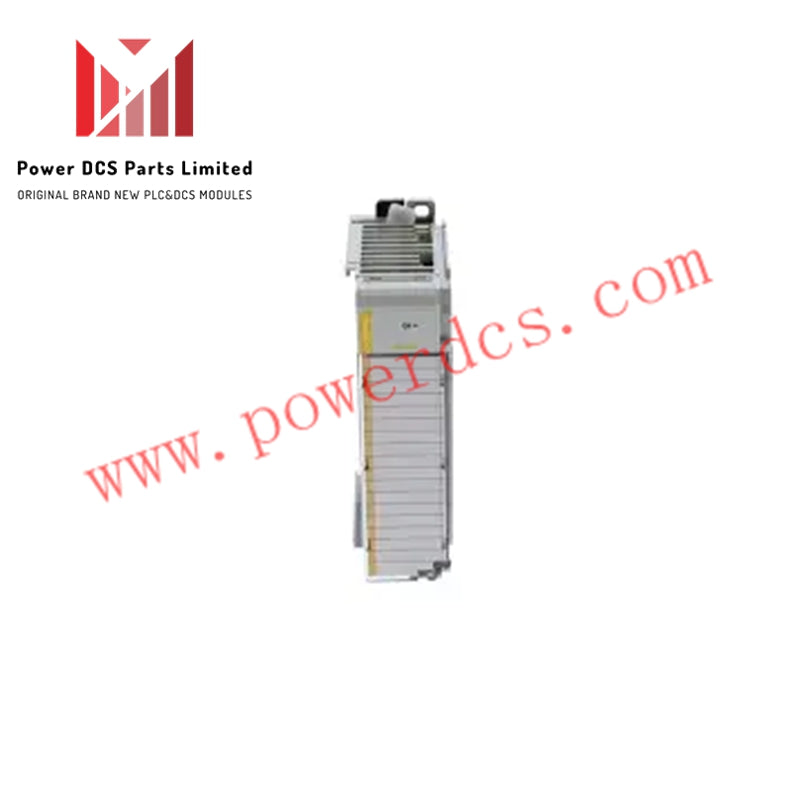

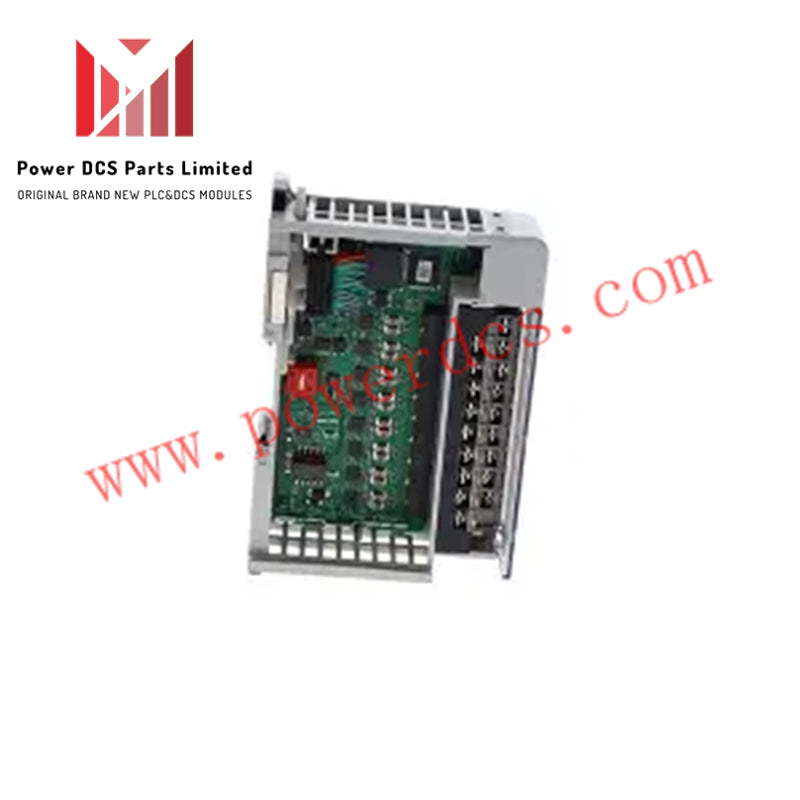

Allen-Bradley 1769-OF8C Compact I/O Analog Output Module

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Series: 1769 Compact I/O
Part Number/Catalog No.: 1769-OF8C
Module Type: Analog Output Module
Condition: Brand NEW & In Stock

Technical Specifications

• No. of Outputs: Eight (8) single-ended current outputs

• Output Current Ranges: 0–20 mA / 4–20 mA

• Full Output Current Range: 0–21 mA; 3.2–21 mA

• Resolution: 16-bit (15.59–15.91 bits effective)

• Conversion Rate (all channels): Maximum 5 ms

• Step Response: < 2.9 ms to 63% of output

• Overall Accuracy: ±0.35% full scale at 25 °C

• Output Protection: Open- and short-circuit detection

• Maximum Short-Circuit Current: 21 mA

• Channel Diagnostics: Over-/under-range reporting, output wire break, high load resistance detection

• Converter Type: Delta Sigma

• Current Draw: 145 mA at 5VDC; 185 mA at 24VDC

• Heat Dissipation: 2.69 W

• Enclosure: None (open type)

• Replacement Door Part Number: 1769-RD

• Wiring Type: Copper, 90 °C rated

• Solid Wire Size: 22–14 AWG

• Stranded Wire Size: 22–16 AWG

Dimensions & Shipping

• Shipping Weight: 2 lbs

• Shipping Dimensions: 8 × 8 × 5 in

Overview

The Allen-Bradley 1769-OF8C is a Compact I/O analog output module designed for use with 1769 CompactLogix, 1768 CompactLogix, and MicroLogix 1500 controllers. It is typically used for driving final control elements (FCEs) in closed-loop control systems, as well as for sending analog signals to measurement or receiving devices.

This module features eight (8) single-ended current output channels, configurable for 0–20 mA or 4–20 mA ranges. It incorporates a 16-bit Digital-to-Analog Converter (DAC) with effective resolutions of 0.323 µA/bit for both ranges. The 1769-OF8C ensures fast and reliable signal response with a maximum conversion rate of 5 ms and a step response time of under 2.9 ms to 63% of the final value.

Designed for industrial automation, the 1769-OF8C provides robust diagnostics including over-/under-range detection, broken wire indication, and load resistance monitoring, ensuring accuracy and reliability in critical applications.
