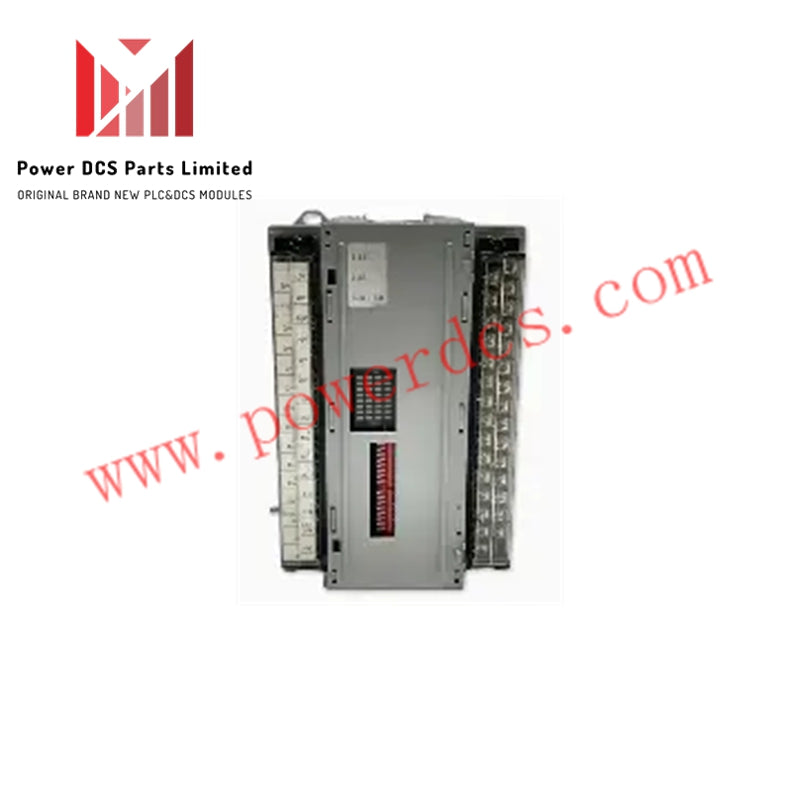

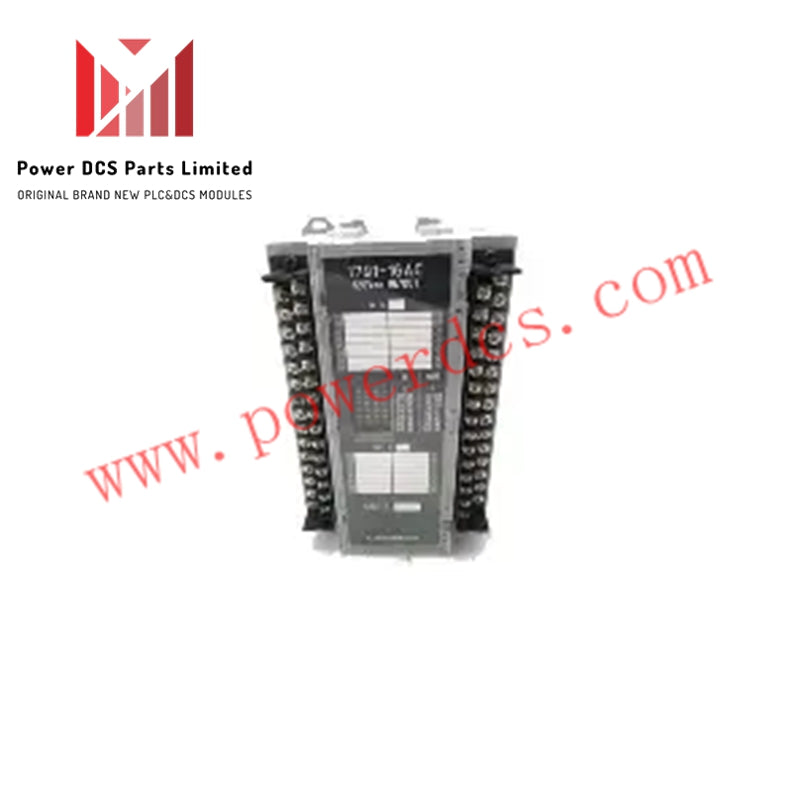

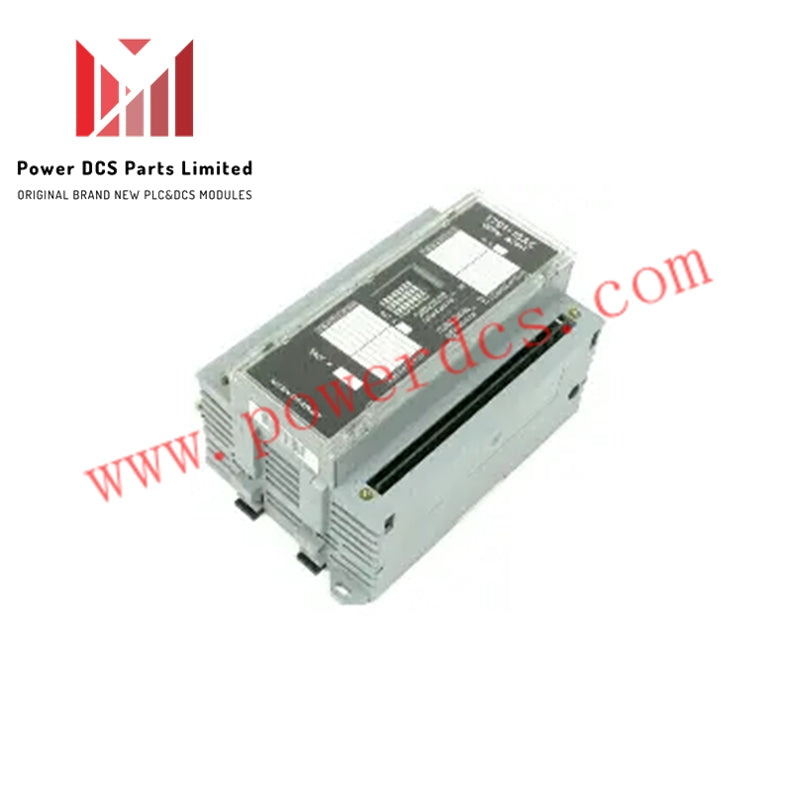

Allen-Bradley 1791-16AC | 16-Channel AC I/O Module

Overview

The Allen-Bradley 1791-16AC is a 16-channel AC block input/output module built for industrial automation. It ensures precise monitoring and control across diverse applications.

Channels and Electrical Specifications

This module offers 16 channels capable of AC block inputs and outputs. It supports an operating voltage range of 12–24 V DC with each channel consuming ≤10 mA. The rated current per channel reaches 1 A, allowing diverse load compatibility.

Communication and Integration

The 1791-16AC supports DeviceNet, CANopen, and EtherCAT protocols. These communication interfaces enable seamless integration with existing industrial control networks and enhance system interoperability.

Environmental and Protection Features

Designed for industrial conditions, the module operates from -20°C to +60°C and withstands 5% to 95% relative humidity. Its IP20 enclosure offers basic protection against dust and splashes, suitable for factory environments.

Dimensions and Installation

The compact module measures 102 x 35 x 98 mm and weighs 0.2 kg. It includes all necessary mounting hardware, allowing straightforward installation into existing control panels.

Durability and Applications

Engineered with high-quality materials, the 1791-16AC ensures long-term reliability and consistent performance. It is ideal for industrial automation projects in manufacturing, material handling, process control, and robotics.
