Allen-Bradley 1794-AENTR 1769 CompactLogix Controller

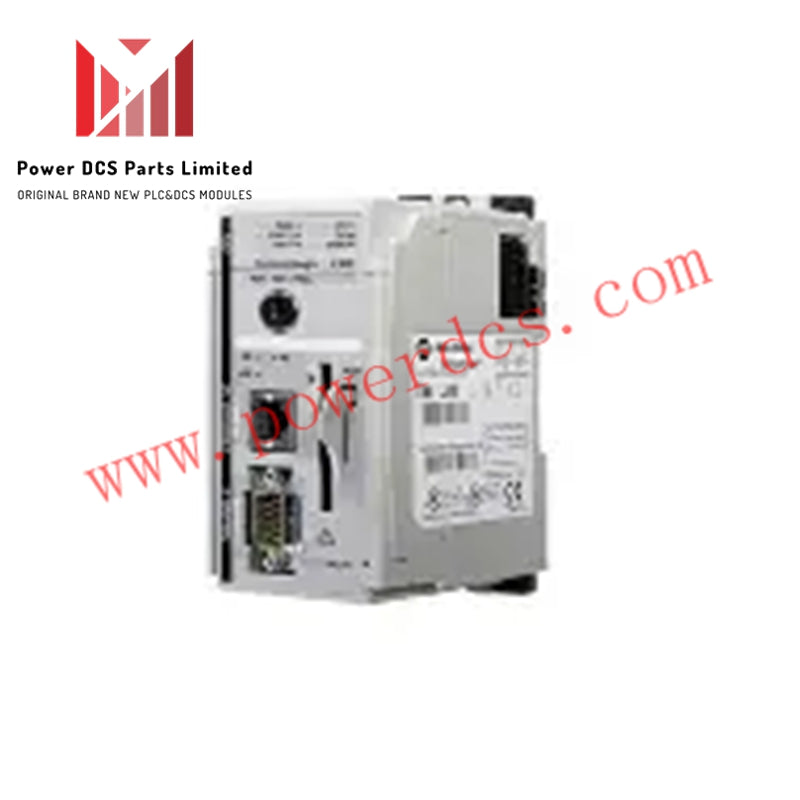

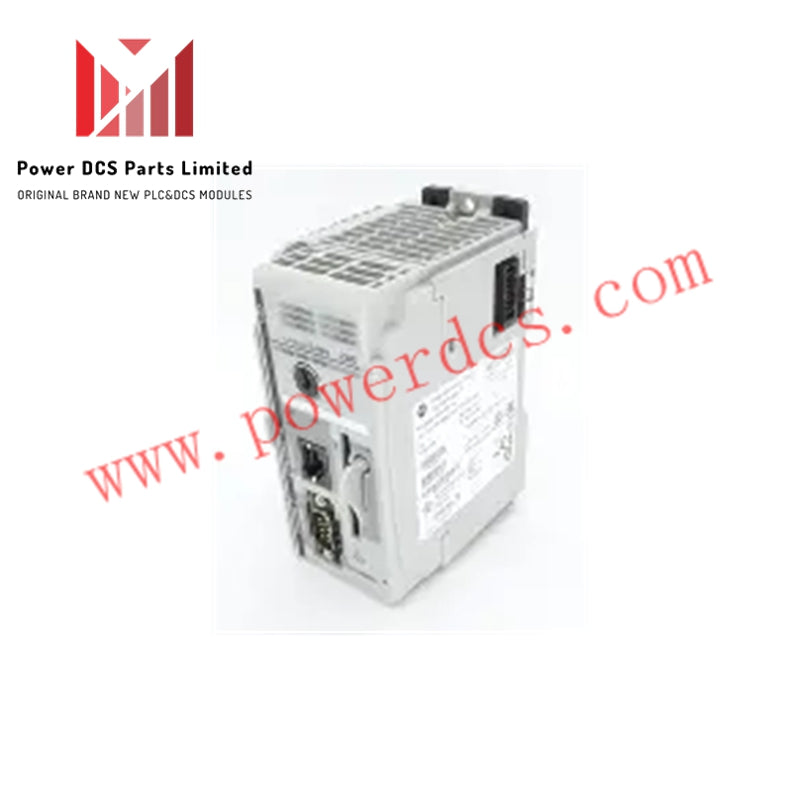

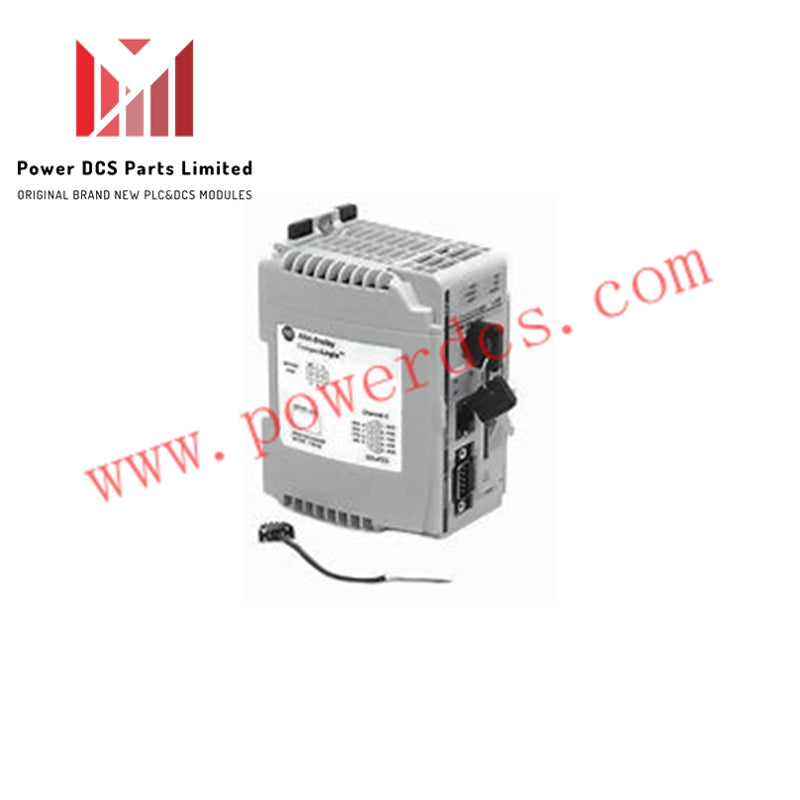

The 1769-L32E/B is a 1769 CompactLogix controller from the 5370 CompactLogix family. It is a Programmable Automation Controller (PAC) designed for machine control and medium-sized process applications. The controller features integrated communication ports for versatile connectivity and supports a range of I/O modules to meet complex automation needs.

Manufacturer: Rockwell Automation / Allen-Bradley
Brand: Allen-Bradley
Part Number/Catalog No.: 1769-L32E/B
Product Line: CompactLogix
Product Type: Programmable Automation Controller
Module Type: Processor Module
Series: A and B
Battery: 1747-BA
Programming Cable: 1747-CP3 / 1756-CP3
UNSPSC: 32151705
UPC: 10612598313935

Technical Specifications:

• Communication: Ethernet/IP

• Communication Ports: 1 RS232; 1 Ethernet

• Supported Protocols: DH485; DF1; ASCII; EtherNet

• Memory: 750 KB

• Maximum Number of I/O Modules Supported: 16 Modules

• Maximum Number of I/O Banks Supported: 3 banks

• Modules Supported: 16 I/O Modules

• Power Supply Distance Rating: 4

• Wire Type: Copper, 90 °C

• Wire Size (Solid): 22 to 14 AWG

• Wire Size (Stranded): 22 to 16 AWG

• Vibration (Operating): 10 to 500 Hz, 5G, 0.030 in. peak-to-peak

• Operating Temperature: 0° to +60 °C (+32° to +140 °F)

• Mounting: DIN Rail; Panel Mounting

• Shipping Weight: 2 pounds

• Shipping Dimensions: 8 x 8 x 5 inches

• Programming Language: Relay Ladder, Structured Text, Function Block, SFC

Description:
The 1769-L32E/B is designed for modular configuration, allowing connection to up to 16 I/O modules across 3 I/O banks. The controller includes one RS232 and one Ethernet communication port.

The RS232 port default configuration is DF1 full-duplex, 19.2 Kbps, no parity, Station Address 0, No Handshaking, BCC error detection, Auto Detect embedded responses, 8 Data bits, and 1 Stop bit. This port can be manually configured or automatically detected using RSLinx for initial communication. The RS232 port may also be configured as an ASCII interface for connecting barcode instruments and other devices commonly used in manufacturing processes.
