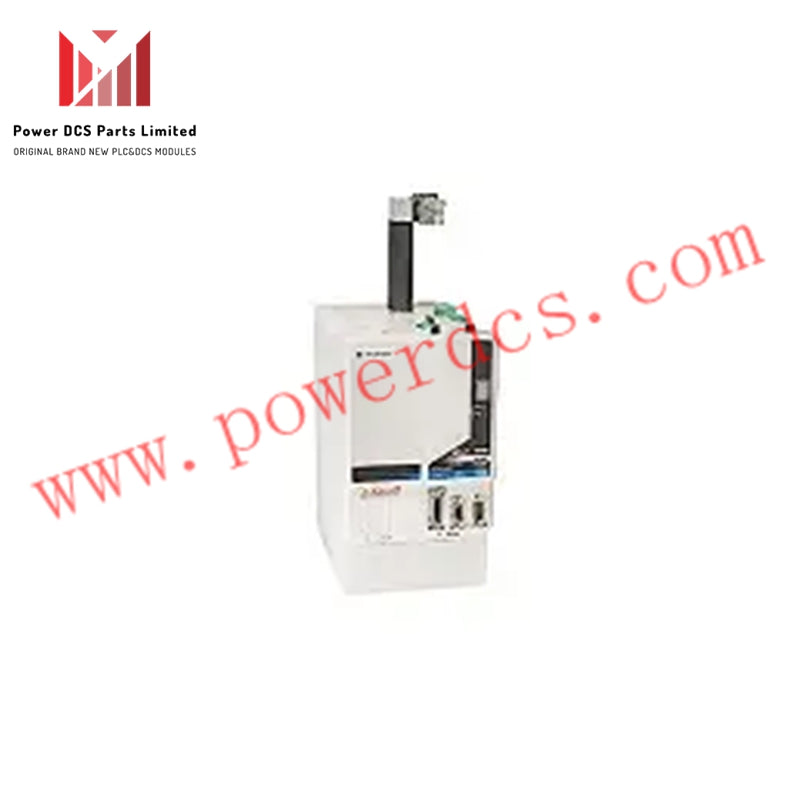

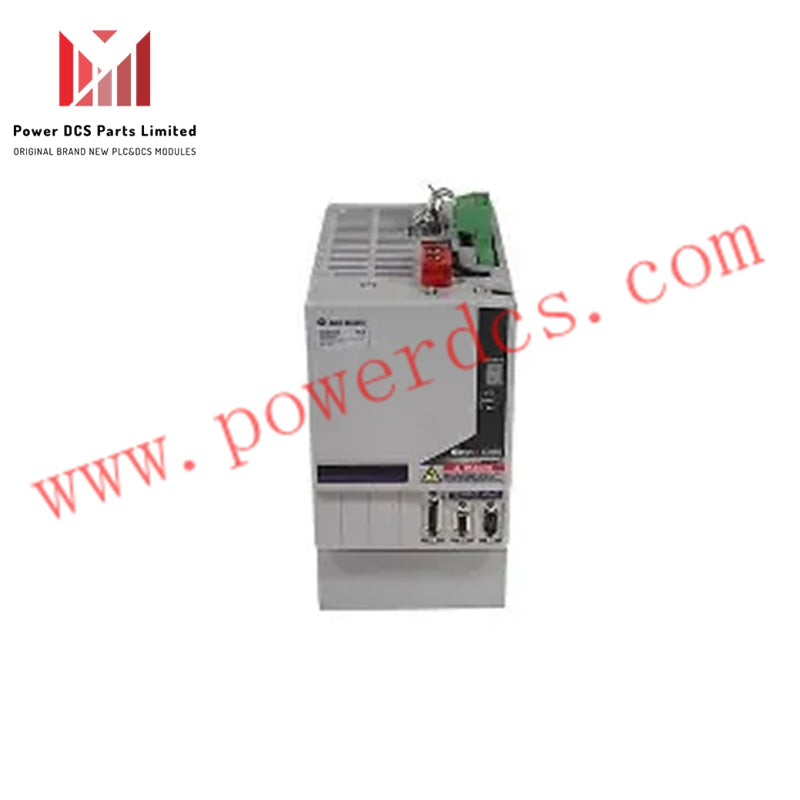

Allen-Bradley 2094-BM03-S | Kinetix 6000 Drive Axis Module

Product Overview

The 2094-BM03-S from Allen-Bradley is a high-performance Kinetix 6000 Drive Axis Module, designed for demanding industrial motion control applications. It operates within the 400VAC class, providing a continuous output current of 21.2 A and a peak current of 53.0 A. The module achieves 98% efficiency, ensuring minimal energy loss during operation.

This axis module integrates Safe Torque-Off functionality, enhancing system safety and compliance with industrial safety standards. The 2094-BM03-S interfaces with both rotary and linear motors using feedback cables, while input/output devices and auxiliary feedback devices communicate directly with the control module.

Mounting directly to the power rail, this module requires integration with a shunt module and slot fillers, allowing for modular scalability in multi-axis drive configurations. Its robust design supports precise control and high-speed performance, with a velocity loop bandwidth of 500 Hz and current loop bandwidth of 1300 Hz.

Technical Specifications

Key Features

• Integrated Safe Torque-Off: Ensures maximum safety in industrial applications.

• High Efficiency: 98% efficient design reduces energy consumption.

• Robust Output: Continuous current of 21.2 A with peak up to 53.0 A.

• Modular Mounting: Direct power rail integration with shunt module and slot fillers.

• High-Speed Control: Velocity loop at 500 Hz and current loop at 1300 Hz.

Applications

• Multi-axis industrial drives

• Servo-controlled machinery

• Automation systems requiring precise torque and speed

• Integration with Kinetix 6000 multi-axis drive networks

FAQ

Q1: Is the 2094-BM03-S new and original?
Yes, it is fully original from Allen-Bradley and comes brand new.

Q2: What is the continuous and peak current rating?
Continuous current is 21.2 A, and peak current reaches 53.0 A.

Q3: Does this module have safety features?
Yes, it includes integrated Safe Torque-Off functionality.

Q4: What is the operating voltage class?
The module operates in the 400VAC voltage class.

Q5: How does this module mount in a system?
It mounts directly on the power rail and requires a shunt module and slot fillers.
