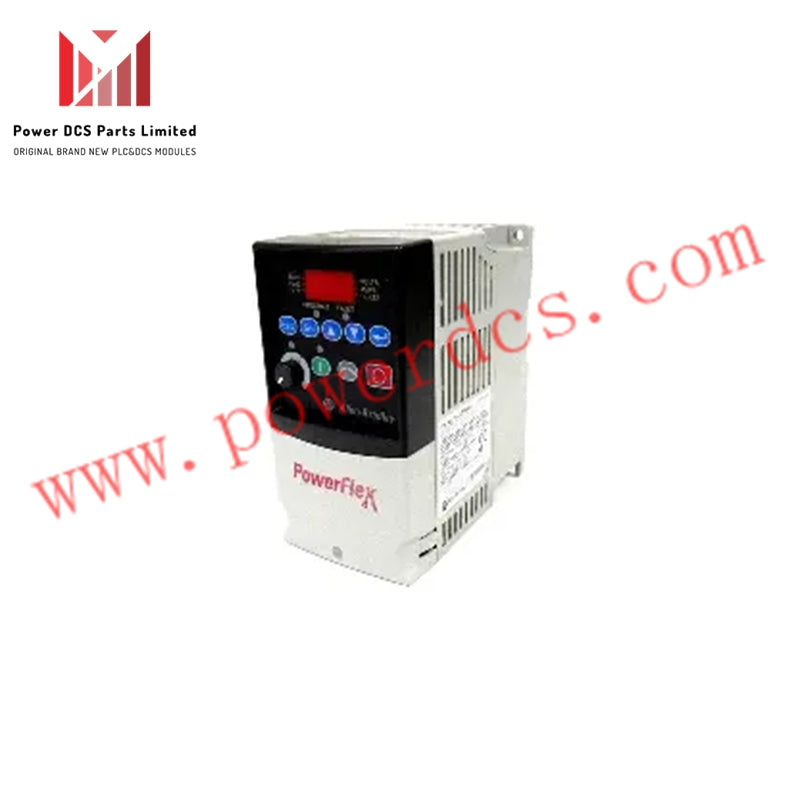

Allen-Bradley 22A-D2P3N104 PowerFlex 4 Variable Frequency Drive

Specifications

  • Manufacturer: Allen Bradley

  • Product No.: 22A-D2P3N104

  • Condition： 10 Items in Stock

  • Product Type: Variable Frequency Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1350g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Allen-Bradley 22A-D2P3N104 PowerFlex 4 VFD: 0.75kW, 230VAC, 4.1A, RS485, 2.7kg. Ideal for precise motor speed regulation.

As a versatile model of the Allen-Bradley PowerFlex 4 series, the 22A-D2P3N104 serves as a compact variable frequency drive. It delivers accurate speed control for small to medium industrial motors effectively.

Core Technical Specifications of 22A-D2P3N104

The table below provides detailed and accurate parameters of the Allen-Bradley 22A-D2P3N104 drive:

Parameter Category Specific Details
Power Rating 0.75kW (1HP) at 230VAC, suitable for light to moderate motor loads
Input Voltage Single-phase 200–240VAC, 50/60Hz, with wide voltage tolerance for stability
Output Current 4.1A continuous, 8.2A peak (1 minute), supporting short-term overloads
Speed Control Range 0.1–600Hz, enabling precise adjustment of motor rotational speed
Physical Dimensions 140mm (H) × 75mm (W) × 150mm (D), compact for tight control cabinet spaces
Weight Approximately 2.7kg, lightweight for easy wall or DIN rail mounting
Communication Interface RS485 (Modbus RTU), facilitating integration with PLCs and HMI systems
Control Modes V/Hz, sensorless vector, meeting different application accuracy requirements
Operating Temperature 0°C to 50°C (derate above 40°C), adapting to factory floor environments
Protection Features Overload, overvoltage, undervoltage, short circuit, ensuring drive and motor safety
