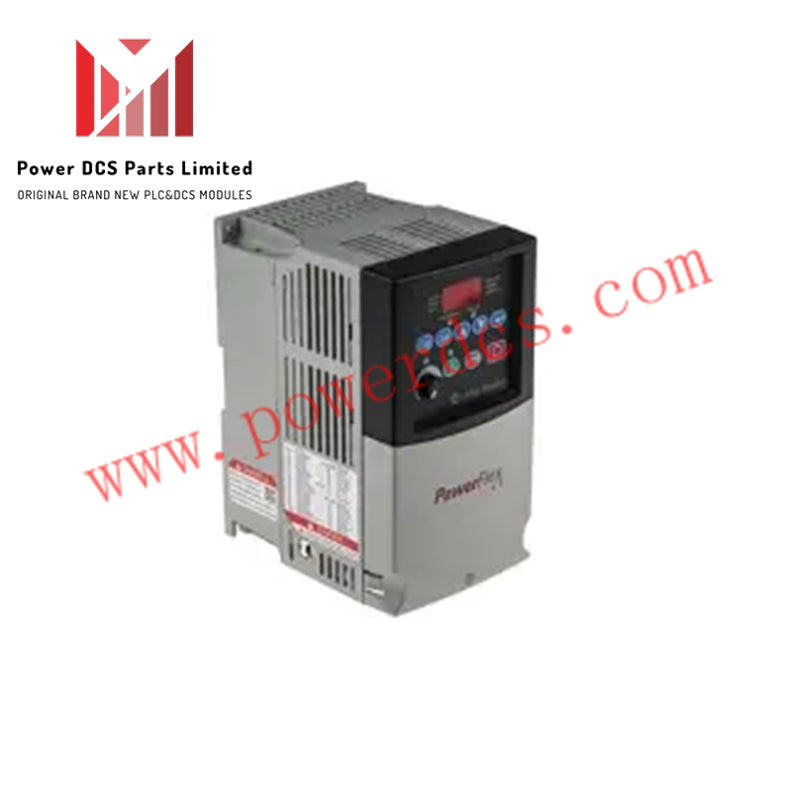

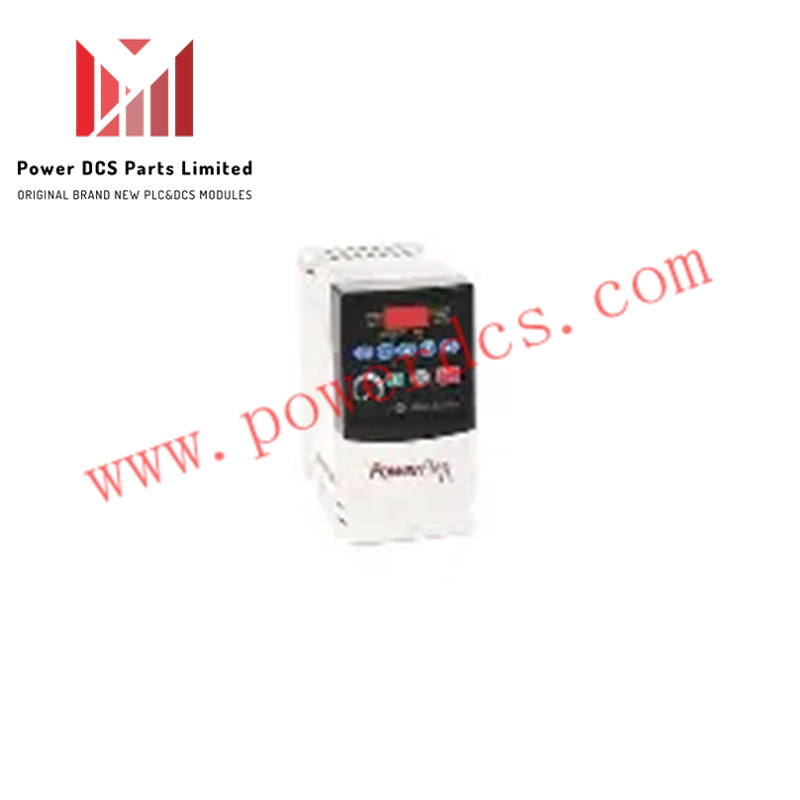

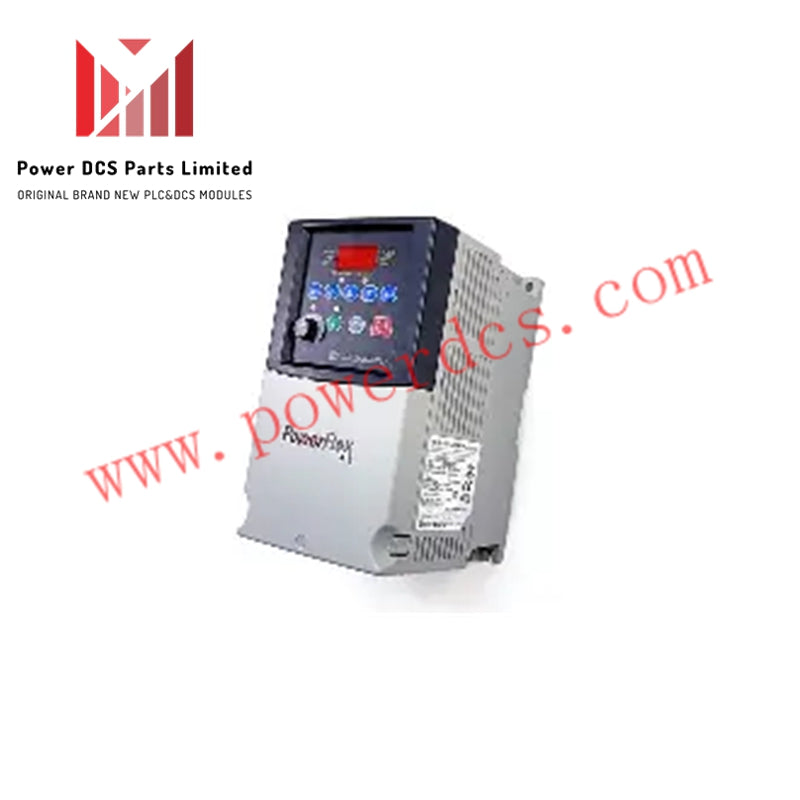

Allen-Bradley 22A-D8P7N104 PowerFlex 4 Variable Frequency Drive (VFD)

Overview
The 22A-D8P7N104 is a PowerFlex 4 Variable Frequency Drive from Allen-Bradley, designed to provide precise speed control for industrial AC motors. It supports three-phase input and delivers reliable motor performance with flexible control options.

Technical Specifications

• Brand: Allen-Bradley

• Manufacturer: Rockwell Automation / Allen-Bradley

• Part Number/Catalog No.: 22A-D8P7N104

• Product Line: PowerFlex 4

• Product Type: AC Drive

• Input Voltage: 380–480 VAC

• Input Phase: 3-Phase

• Rated Output Current: 8.7 A

• Rated Power: 3.7 kW (5 HP)

• Installation: Panel Mount

• Enclosure Rating: IP20 / NEMA UL Type Open

• Input Type: Keypad

• Display: LED Keypad

• Built-in Communication Port: RS485

• I/O Terminals:

• Discrete Inputs: 3 fixed for START/STOP/REV, 2 fully programmable

• Discrete Outputs: 4 fully programmable

• Analog Inputs: 2 (0–10 V or 4–20 mA)

• Discrete Output: 1 N.O./N.C. dry contact

• Amperage: 8.7 A

• Horsepower: 5 HP

• Brake Drive: Yes

• Frame Size: B

• UPC: 662453979663

Description
The 22A-D8P7N104 is a scalar control VFD designed for industrial motor speed regulation. It incorporates an integrated Insulated Gate Bipolar Transistor (IGBT) brake and a fixed LED keypad for local configuration and operation.

Operating with an input supply range of 342–528 VAC, 3-phase, and an input current of 9 A at 48–63 Hz, the 22A-D8P7N104 delivers a continuous output current of 8.7 A, output voltage of 0–460 VAC, and output frequency of 0–240 Hz. The drive is suitable for motors rated at 3.75 kW (5 HP), providing reliable and efficient motor control in industrial applications.
