Allen Bradley 22B-D2P3N104 | PowerFlex 40 Variable Frequency Drive

Product Overview

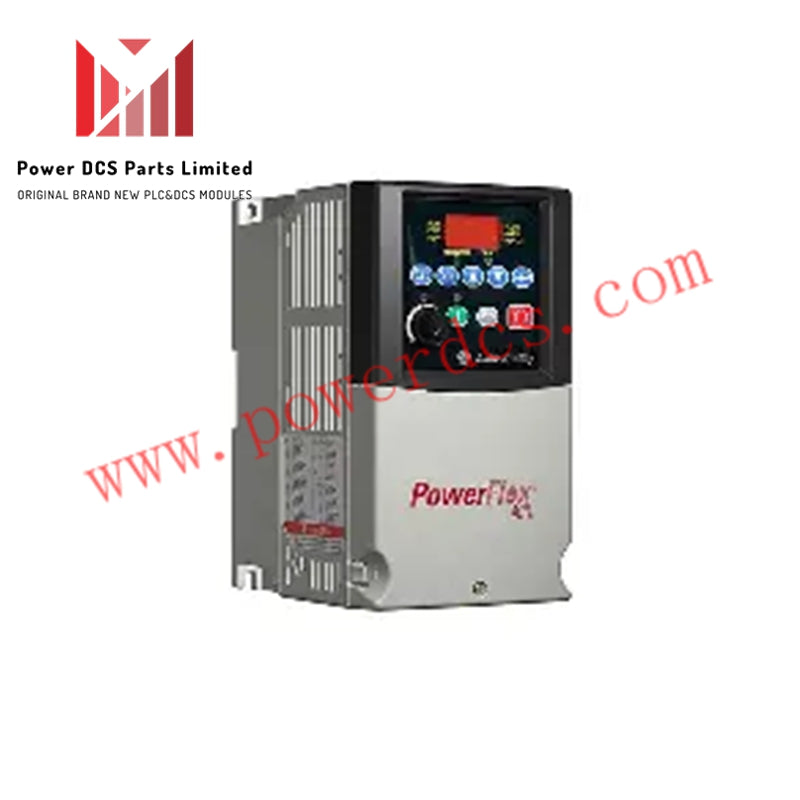

The Allen Bradley 22B-D2P3N104 is a PowerFlex 40 Variable Frequency Drive designed for precise motor speed control and energy-efficient operation. It provides 0.75 kW (1 HP) output at 2.3 A and supports 3-phase input voltages from 380–480 VAC.

Its compact panel-mount design with IP20 / NEMA UL type open enclosure allows easy installation on a DIN rail. The integrated LED keypad simplifies local control, while the RS485 communication port ensures seamless network integration. This drive supports advanced features like sensorless vector control, adjustable PWM frequency, and robust overload protection.

Key Features

• Provides 0.75 kW (1 HP) output with 2.3 A rated motor current.

• Operates with 3-phase input voltage from 380–480 VAC.

• Panel-mount IP20 / NEMA UL open enclosure with DIN rail installation.

• LED keypad for local control and programming.

• Built-in RS485 communication port for network connectivity.

• Discrete I/O: 3 fixed inputs, 4 programmable outputs, 2 analog inputs.

• Optimized performance: sensorless vector control, adjustable PWM, relay pre-charge.

• Removable MOV for enhanced protection and easy maintenance.

Technical Specifications

Industrial Applications

The Allen Bradley 22B-D2P3N104 is ideal for controlling pumps, conveyors, and small motors in manufacturing and automation systems. Its sensorless vector control provides precise torque and speed, while robust I/O options allow integration with safety devices and automated processes.

FAQ

Q1: Is the Allen Bradley 22B-D2P3N104 original and brand new?
Yes, we provide brand new original Allen Bradley PowerFlex 40 VFDs.

Q2: Do you have stock available for quick shipment?
Yes, inventory is available, and we typically ship within 3 days to 2 weeks depending on order size.

Q3: Which shipping options are supported?
We ship via DHL, FedEx, UPS, or customer-specified carriers.

Q4: What if there is a quality issue with the VFD?
We support returns within 30 days for any quality-related issues.

Q5: Can the 22B-D2P3N104 operate with different motor types?
Yes, it supports standard 3-phase AC motors with 0.75 kW rating.

Q6: What protection features are included?
It includes overload protection, relay pre-charge, and removable MOV for safe operation.
