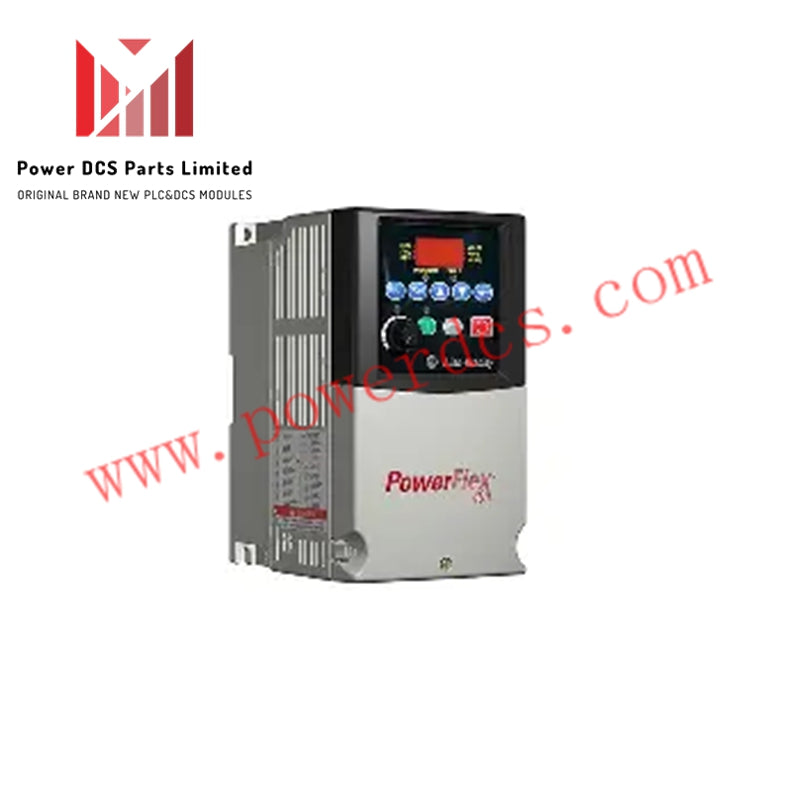

Allen-Bradley 22B-D6P0N104 – AC Drive for Industrial Control

Overview

The Allen-Bradley 22B-D6P0N104 is a high-performance AC drive designed for precise speed and torque control in industrial applications. It enhances operational efficiency, reduces energy consumption, and provides reliable performance in demanding environments.

Key Features

• Advanced variable frequency drive (VFD) for smooth motor control.

• Precise speed and torque management for industrial machinery.

• Robust construction with IP20 protection rating for harsh environments.

• Supports programmable and fixed discrete I/O for flexible control.

• CE certified for international safety and compliance.

• Panel mount enclosure for convenient installation.

Technical Specifications

• Manufacturer: Allen-Bradley

• Brand: Allen-Bradley

• Model: 22B-D6P0N104

• Input Voltage Range: 342–528 V AC, 3-phase

• Motor Output: 6.0 A

• Power Output: 2.2 kW (3.0 HP)

• Control Type: Variable Frequency Drive

• Protection Rating: IP20

• Compliance: CE Certified

• Communication Interface: RS-485

• Enclosure Type: Panel Mount

• Phase: 3-phase

• Operating Temperature: -20°C to +60°C

• Load Capacity: Up to 3 HP

Description

The 22B-D6P0N104 AC Drive is engineered for seamless integration with a wide range of industrial machinery. Its variable frequency control ensures smooth operation, reduces mechanical stress, and extends the lifespan of connected equipment.

With a sturdy IP20-rated enclosure, the 22B-D6P0N104 maintains reliable operation even in challenging industrial environments. Its comprehensive I/O configuration allows flexible connectivity and precise control tailored to specific application needs. Certified to CE standards, this drive ensures safety and global compatibility, making it an ideal solution for industrial automation projects worldwide.
