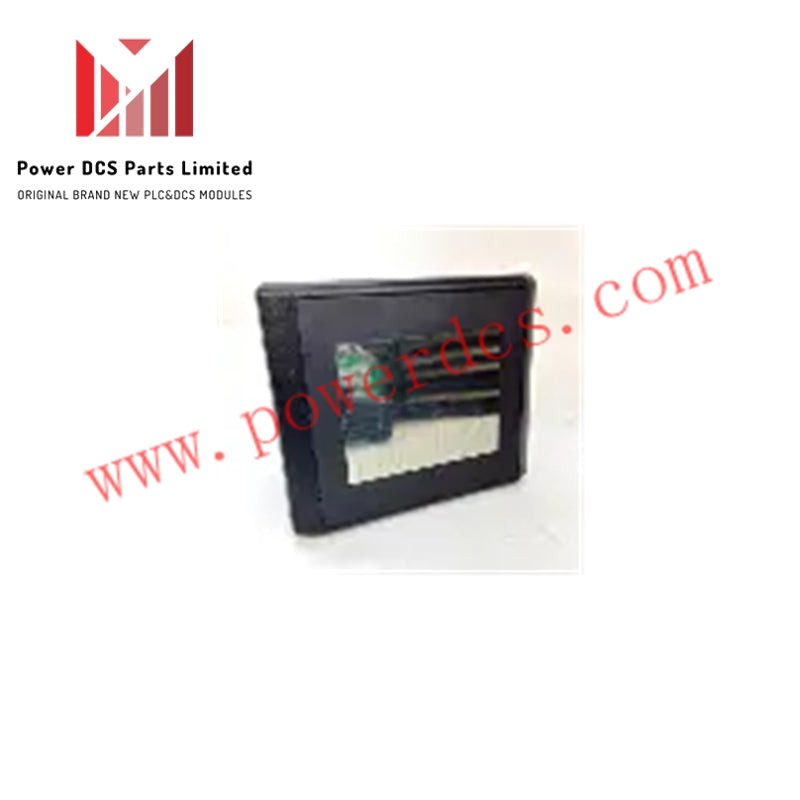

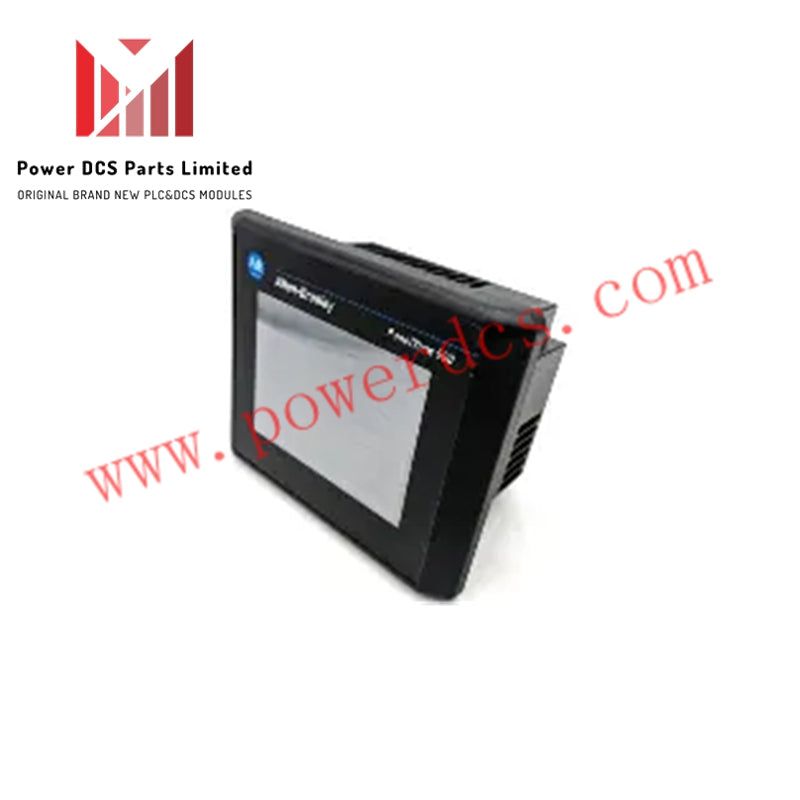

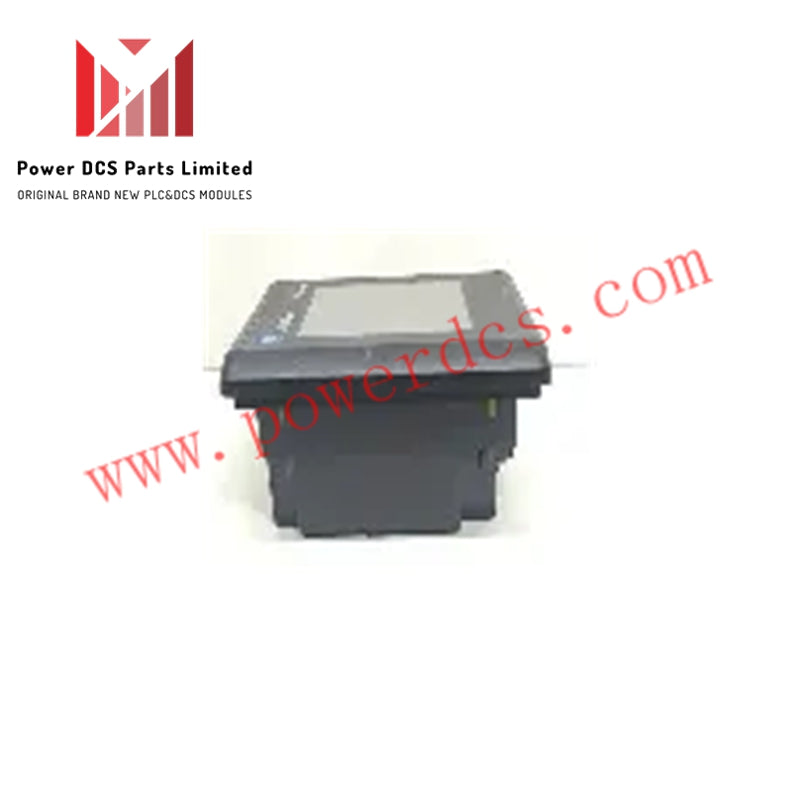

Allen-Bradley 2711-T6C16L1 PanelView 600 | Industrial Touch Terminal

Product Overview

The 2711-T6C16L1 is an Allen-Bradley PanelView 600 Standard Operator Terminal designed for real-time interaction between operators and industrial processes. It features a 6-inch color TFT display with 128 touch cells, enabling precise touch input using a gloved finger or stylus.

Powered by an 18–32V DC supply, this terminal integrates dual RS-232 ports for DF1 communication and printer connections. The terminal supports standard or custom color codes for depicting operational status, instruments, and device states.

Technical Specifications

• Display Type: Active Matrix TFT with CCFL backlight

• Display Size: 6 inches

• Display Resolution: 320 × 240 pixels

• Display Area: 115 × 87 mm (4.54 × 3.43 in.)

• Touchscreen: Analog resistive, 128 touch cells

• Backlight Life: 50,000 hours (field replaceable, ½ life at 25°C)

• Application Memory: 190 KB runtime, 240 KB nonvolatile memory

• Communication Ports: RS-232 (DF1) and RS-232 printer

• Input Voltage Range: 18–32V DC (nominal 24V DC)

• Operating Temperature: 0–55°C

• Heat Dissipation: Maximum 24 W (1.0 A at 24V DC)

• Shipping Weight: 4 lbs

• Shipping Dimensions: 14 × 11 × 8 inches

• Panel Cutout: 25 mm (H) × 165 mm (W)

• Installation Depth: 99 mm (3.89 in.) or 131 mm with memory card retainer

• Enclosure & Series: PanelView 600, Series A–L

• Lifecycle Status: Discontinued/Obsolete

Key Features

• Compact Design: Flush-mount terminal with minimal space requirements

• Precise Touch Input: Supports gloved finger or stylus operation

• Dual RS-232 Ports: Enables DF1 communication and printer interface

• Durable Backlight: CCFL technology ensures long-lasting display performance

• Customizable Color Codes: Supports standard and plant-specific visualizations

• Flexible Installation: Compatible with memory card retainers for expansion

Applications

The 2711-T6C16L1 terminal is suitable for:

• Industrial operator control and monitoring

• Small to medium-scale automation systems

• Real-time display of machine or process status

• Applications requiring DF1 communication or printer outputs

• Environments demanding durable and reliable operator terminals
