Allen-Bradley 2711E-T14C15 PanelView 2711E Touchscreen Terminal

Product Overview

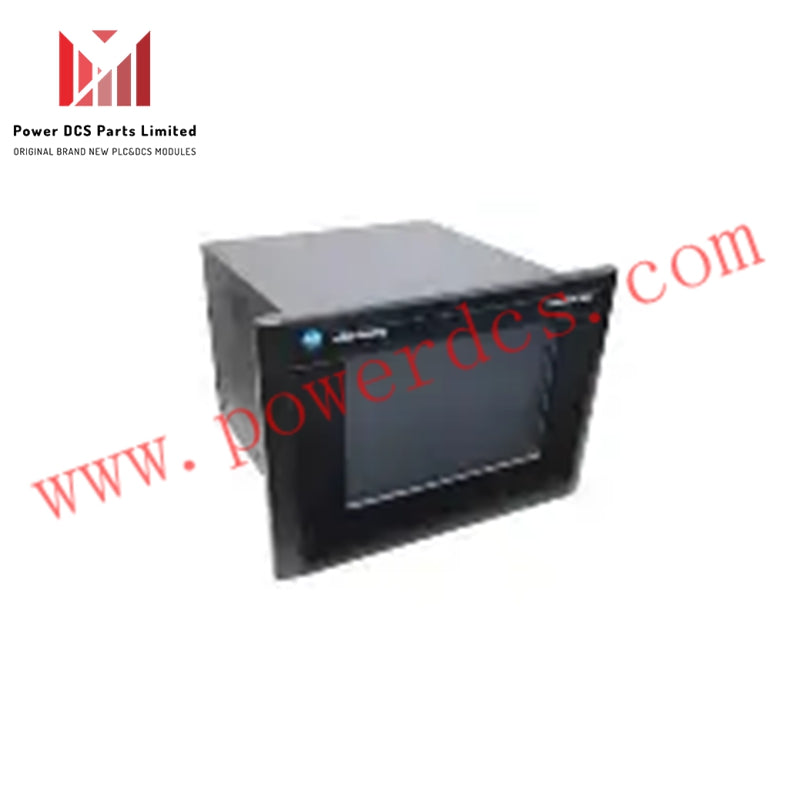

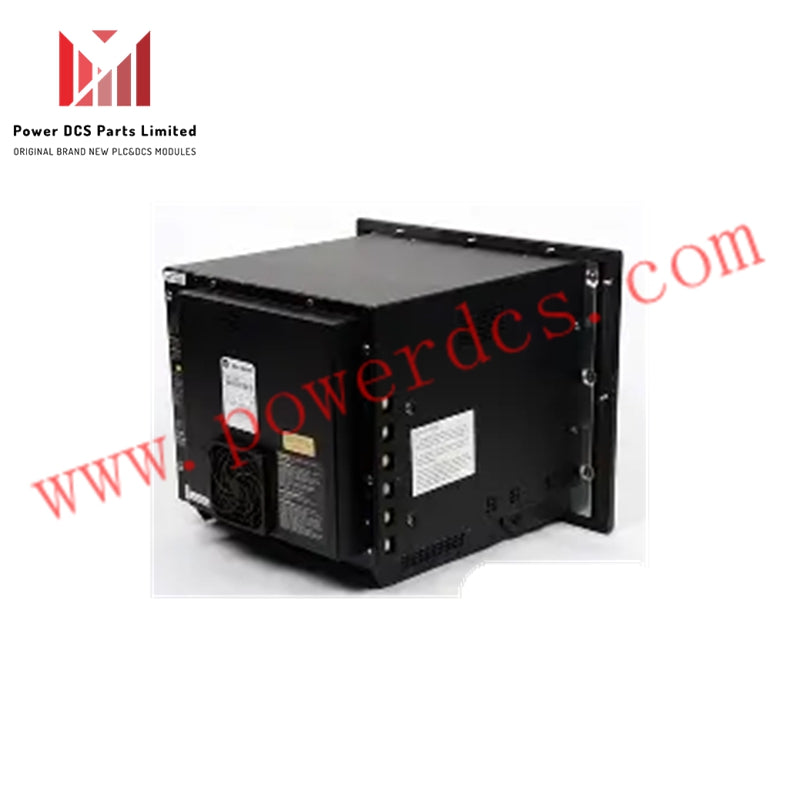

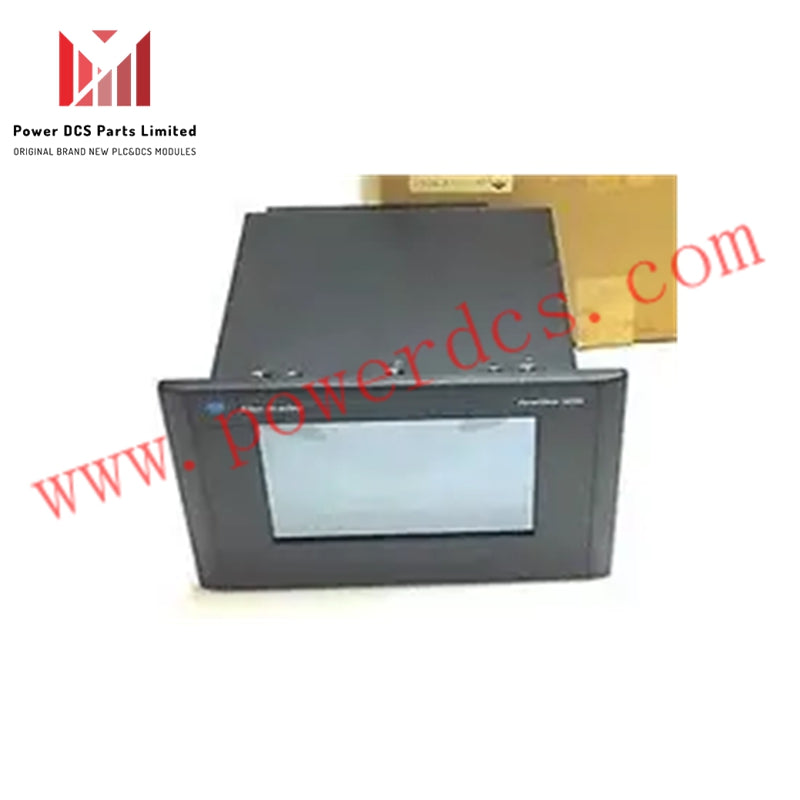

The Allen-Bradley 2711E-T14C15 is a robust PanelView 2711E operator terminal designed for industrial automation applications. It features a 14-inch color CRT display with a 640 × 480 pixel resolution. The terminal’s analog-resistive touchscreen offers high durability with a scratch-resistant, anti-glare surface, supporting up to 1,000,000 actuations.

Equipped with ControlNet communications, the 2711E-T14C15 allows seamless real-time data transfer within industrial networks. Its 256 KB onboard flash memory can be expanded with an optional PC memory card up to 16 MB. A permanent lithium battery provides over 10 years of life at 30°C, maintaining clock functions and data retention.

The terminal’s cast aluminum bezel with black powder coating ensures mechanical protection, while its auto-select switching power supply accommodates 90–132V AC and 180–264V AC with 47–63 Hz frequency. This unit is engineered to operate under harsh conditions, including extreme temperatures, vibrations, and altitudes.

Technical Specifications

Key Features

• 14-inch CRT Color Display: Provides clear visualization for operator interaction.

• Analog-Resistive Touchscreen: Durable, anti-glare surface supports up to 1 million presses.

• ControlNet Communication: Enables real-time industrial network integration.

• Expandable Memory: 256 KB onboard flash plus optional 16 MB PC card for data storage.

• Robust Design: Cast aluminum bezel and black powder coating ensure mechanical protection.

• Long-Life Battery: Lithium battery maintains clock and memory functions for over 10 years.

• Flexible Power Supply: Auto-selects between 90–132V AC and 180–264V AC.

Applications

• Industrial Automation: Interface with controllers for process control.

• Data Acquisition: Capture and monitor operational parameters with precision.

• Real-Time Monitoring: Control and visualize industrial processes efficiently.

• Harsh Environments: Operates reliably under high vibration, shock, and temperature conditions.

FAQs

Q1: What is the screen size and resolution of the 2711E-T14C15?
It has a 14-inch CRT color display with 640 × 480 pixels resolution.

Q2: How many touches can the terminal support?
The touchscreen supports up to 1,000,000 actuations.

Q3: Can memory be expanded?
Yes, it has 256 KB onboard flash and supports optional 16 MB PC memory card.

Q4: What power supply does it use?
It uses an auto-select 90–132V AC or 180–264V AC, 47–63 Hz power supply.

Q5: What communication protocol does it support?
The 2711E-T14C15 supports ControlNet for high-speed industrial networking.

Q6: Are these terminals original and new?
Yes, all units are full original Allen-Bradley products, brand new.

Q7: What is the typical shipping timeframe?
We ship within 3 days to 2 weeks, depending on order size, via DHL, FedEx, or UPS.

Q8: Can defective units be returned?
Yes, we provide 30-day return support for any quality issues.
