Allen-Bradley 2711P-T6M20D | PanelView Plus 600 Graphic Operator Terminal

Overview

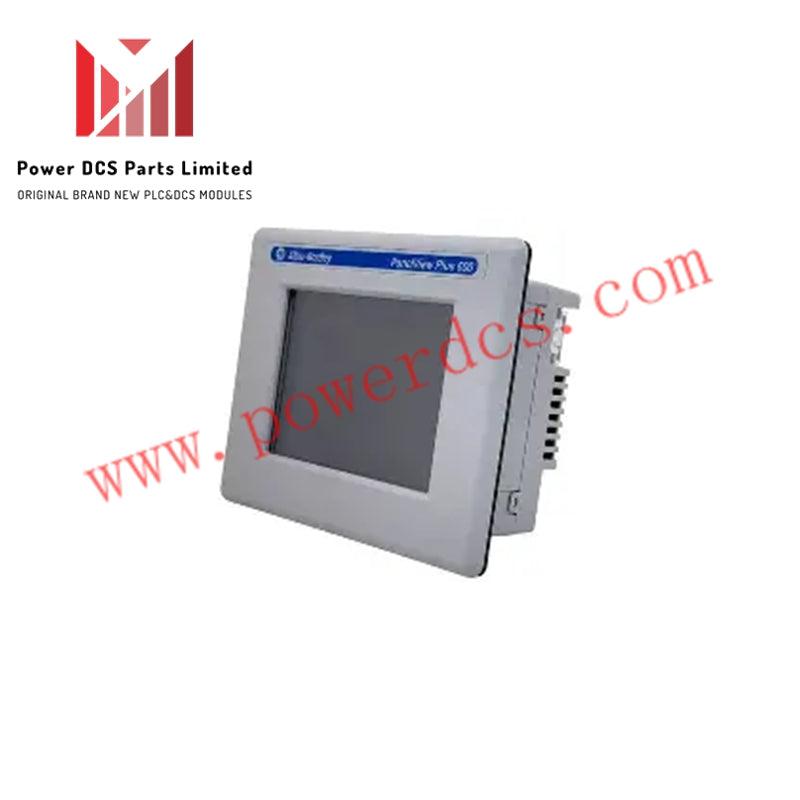

The Allen-Bradley 2711P-T6M20D is a PanelView Plus 600 graphic operator terminal designed for real-time industrial monitoring and control.

It functions as a Human Machine Interface (HMI), enabling operators to interact efficiently with PLCs and other automation devices.

Equipped with a 5.5-inch grayscale passive matrix FSTN display, the terminal delivers sharp visuals and supports touch-based input.

The analog resistive touchscreen allows precise control with an operating force of 10–110 g and an actuating lifespan of up to one million presses.

Memory capacity varies by series: Series A has 5 MB, while Series B provides 10 MB for storing applications, graphics, and process data.

Communication is supported via Ethernet, RS-232, and two USB host ports, providing versatile integration with industrial networks.

The terminal operates on a 24V DC supply with a voltage range of 18–30VDC and consumes a maximum of 25 W (1.0 A at 24V DC).

Key Features

• Brand: Allen-Bradley

• Model: 2711P-T6M20D

• Series: PanelView Plus 600

• Module Type: Graphic Operator Terminal

• Display Type: Grayscale FSTN (film compensated super-twist nematic)

• Display Size: 5.5 inches (112 x 84 mm)

• Resolution: 320 x 240 pixels

• Input Type: Analog resistive touchscreen

• Touch Operating Force: 10–110 g

• Touch Actuating Lifespan: 1 million presses

• Memory: Series A 5 MB, Series B 10 MB

• Communication Ports: Ethernet, RS-232, 2 USB host

• Power Supply Voltage: 18–30V DC

• Max Power Consumption: 25 W (1.0 A at 24V DC)

• Open Architecture: Yes

Technical Specifications

Advantages

• Provides real-time monitoring and control via touchscreen HMI interface.

• Compatible with PLCs, PACs, third-party HMIs, and gateways for flexible integration.

• Grayscale FSTN display ensures high visibility in industrial environments.

• Touchscreen input supports precise operator commands with long operational lifespan.

• Multiple communication ports allow seamless network connectivity.

• Compact, durable design supports continuous operation in manufacturing applications.

FAQ

Q1: Is the Allen-Bradley 2711P-T6M20D brand new?
A1: Yes, it is fully original and brand new from Allen-Bradley.

Q2: What type of display does this terminal have?
A2: It features a 5.5-inch grayscale passive matrix FSTN touchscreen.

Q3: Which communication interfaces are available?
A3: Ethernet, RS-232, and 2 USB host ports are supported.

Q4: What is the operating voltage range?
A4: The terminal operates at 18–30V DC and consumes a maximum of 25 W.

Q5: What is the touchscreen lifespan?
A5: The analog resistive touchscreen is rated for up to 1 million presses.

Q6: Can it integrate with other automation devices?
A6: Yes, it communicates with PLCs, PACs, gateways, and third-party HMIs.

Q7: Is this terminal open architecture?
A7: Yes, it supports open architecture for flexible programming and integration.
