Allen-Bradley 2711P-T7C15D1 | PanelView Plus 700 Touchscreen Terminal

Overview

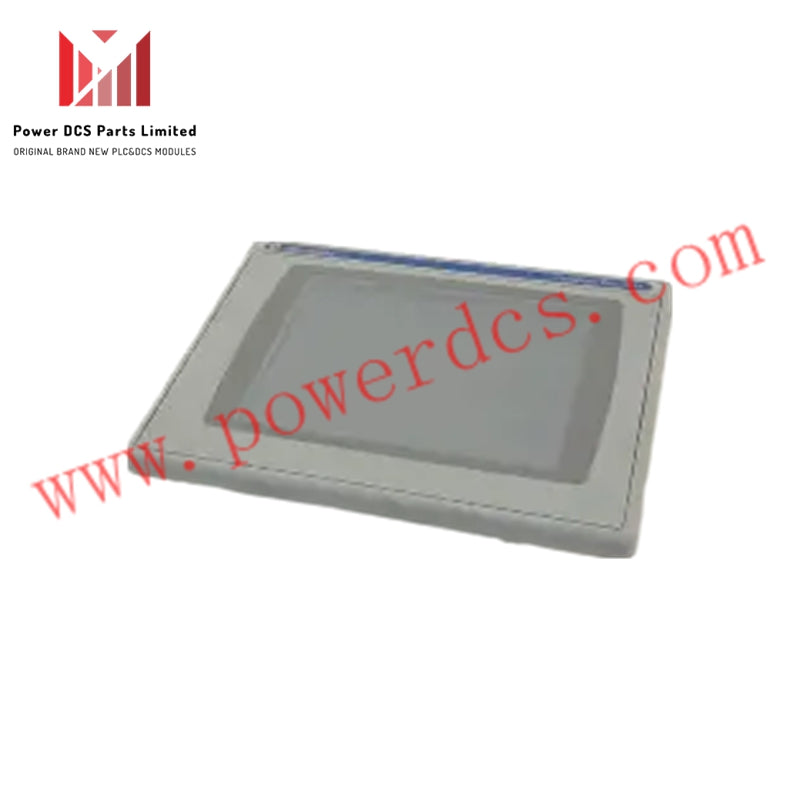

The Allen-Bradley 2711P-T7C15D1 is a touchscreen-only interface terminal from the PanelView Plus 700 series. It delivers a 6.5-inch color TFT LCD with 640 × 480 resolution and 18-bit color graphics. Its compact design and DC-powered operation make it ideal for integration in modern industrial automation systems.

Equipped with a CCFL backlight, the 2711P-T7C15D1 provides 300 cd/m² luminance, ensuring clear visibility even in bright industrial environments. Its flash memory of 64 MB, along with 512 MB RAM, supports fast and reliable operation, while 79 MB of free user memory enables application storage.

Key Technical Specifications

Design and Connectivity

The 2711P-T7C15D1 integrates easily into industrial networks via ControlNet. Its Ethernet port allows connection to additional devices, supporting seamless data exchange. The terminal is designed for DC operation with an input range of 18–32 VDC, ensuring compatibility with a wide variety of control panels.

Its SD card slot allows external storage for application backups, and the replaceable CCFL backlight ensures prolonged visibility. The removable battery provides a reliable internal clock, but must be installed and removed with the power off to prevent damage.

Benefits

• Compact 6.5-inch color touchscreen with high-resolution graphics.

• Supports ControlNet and Ethernet connectivity for industrial networks.

• Built-in 64 MB flash and 512 MB RAM for fast performance.

• CCFL backlight ensures clear visibility in bright environments.

• SD card slot enables convenient external storage.

• Operates safely with 18–32 VDC input power.

FAQ

Q1: Is the Allen-Bradley 2711P-T7C15D1 brand new and original?
Yes, we supply only brand-new, original Allen-Bradley PanelView Plus terminals.

Q2: Do you have the 2711P-T7C15D1 in stock?
Yes, inventory is available, and shipping typically occurs within 3 days to 2 weeks.

Q3: Which shipping carriers do you use?
We commonly use DHL, FedEx, and other reliable international carriers.

Q4: Can the SD card be used for application backups?
Yes, the SD card slot supports external storage for applications and configuration data.

Q5: What is the recommended battery storage temperature?
Store the battery at 25 °C with 40–60% relative humidity. Avoid temperatures above 60 °C.

Q6: What is the backlight type and lifespan?
The 2711P-T7C15D1 uses a CCFL backlight, which is replaceable and provides consistent luminance.
