Allen-Bradley 2711P-T7C21D8 | PanelView Plus 7 Standard HMI Terminal

Overview

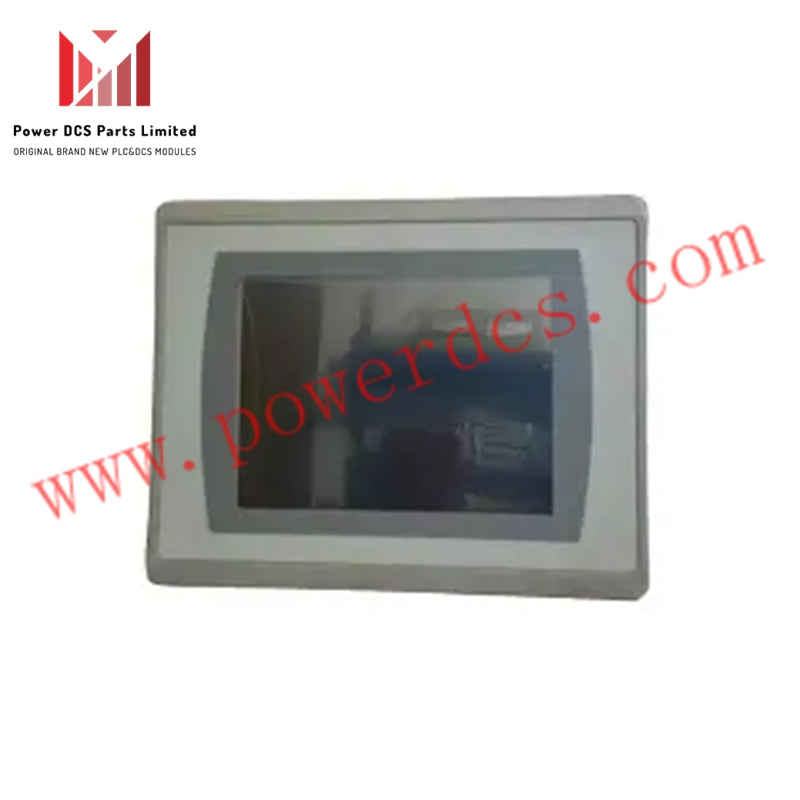

The 2711P-T7C21D8 is a 7-inch operator interface terminal from Allen-Bradley’s PanelView Plus 7 Standard series. It offers a cost-effective HMI solution for monitoring and controlling industrial automation processes.

This terminal features a compact design that supports installation in tight spaces while maintaining full functionality. Its touchscreen interface allows intuitive interaction with machines and processes.

Equipped with a single Ethernet port, the 2711P-T7C21D8 communicates seamlessly with PLCs and other automation devices. It is powered by 24V DC and provides reliable operation under industrial conditions.

With 512 MB of RAM and 512 MB of internal storage, this HMI terminal supports robust application programs and user data storage. The enclosure is rated NEMA 4X, 12, and 13, protecting against dust, water, and corrosive environments.

Technical Specifications

Features

• 7-inch widescreen color touchscreen with intuitive operation.

• Supports compact installation for space-constrained control panels.

• Ethernet connectivity allows seamless integration with PLC systems.

• High-performance memory ensures smooth execution of HMI applications.

• NEMA 4X, 12, and 13 rated enclosure for dust, water, and corrosion protection.

• Designed for industrial environments with temperatures from 0–55 °C.

Installation Notes

• Ensure panel cutout dimensions match the terminal for secure mounting.

• Verify 24V DC power supply before operation to avoid damage.

• Configure Ethernet according to system requirements.

• Install in environments within specified temperature and humidity ranges.

FAQ

Q1: Is the 2711P-T7C21D8 factory new?
A1: Yes, it is fully original, new, and in stock ready for shipment.

Q2: What communication options does this terminal support?
A2: Supports a single Ethernet port for connectivity with PLCs and networks.

Q3: What is the display size and type?
A3: Features a 6.5-inch TFT color display with touchscreen input.

Q4: Can this terminal operate in harsh industrial environments?
A4: Yes, the NEMA 4X, 12, and 13 rated enclosure protects against dust, water, and corrosion.

Q5: How much memory does the terminal have?
A5: Provides 512 MB RAM and 512 MB internal storage for programs and user data.

Q6: What voltage is required for operation?
A6: Requires a stable 24V DC power supply.
