Allen-Bradley 2711PC-T10C4D1 | PanelView Plus 1000 Compact Terminal

Product Overview

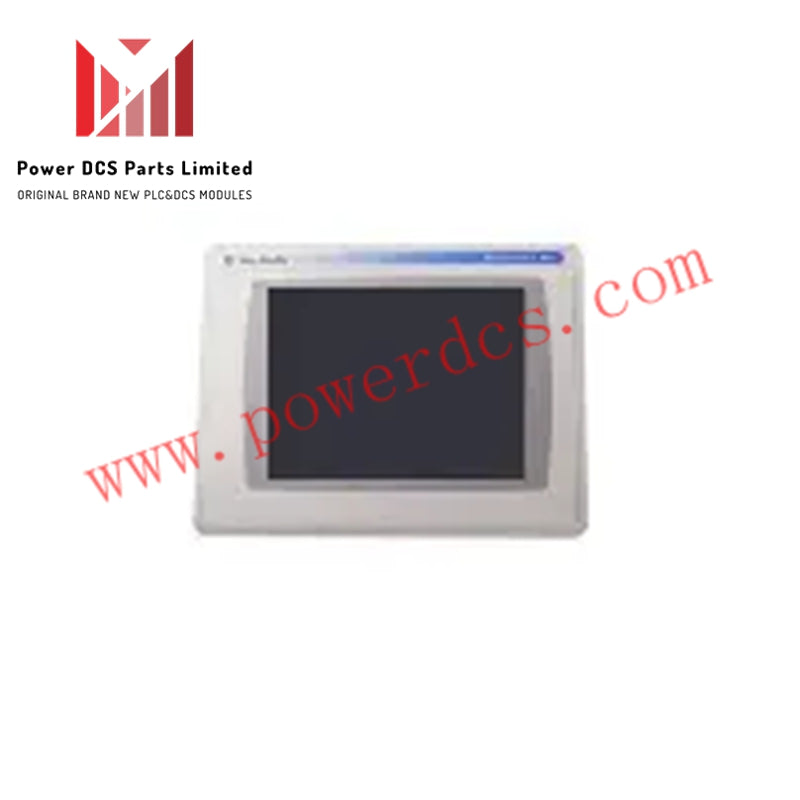

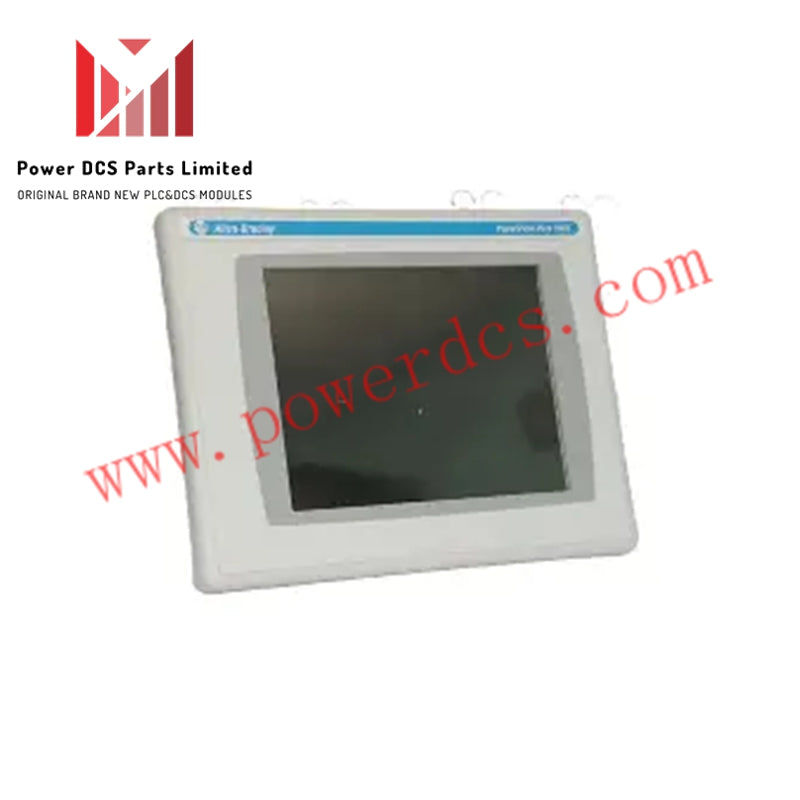

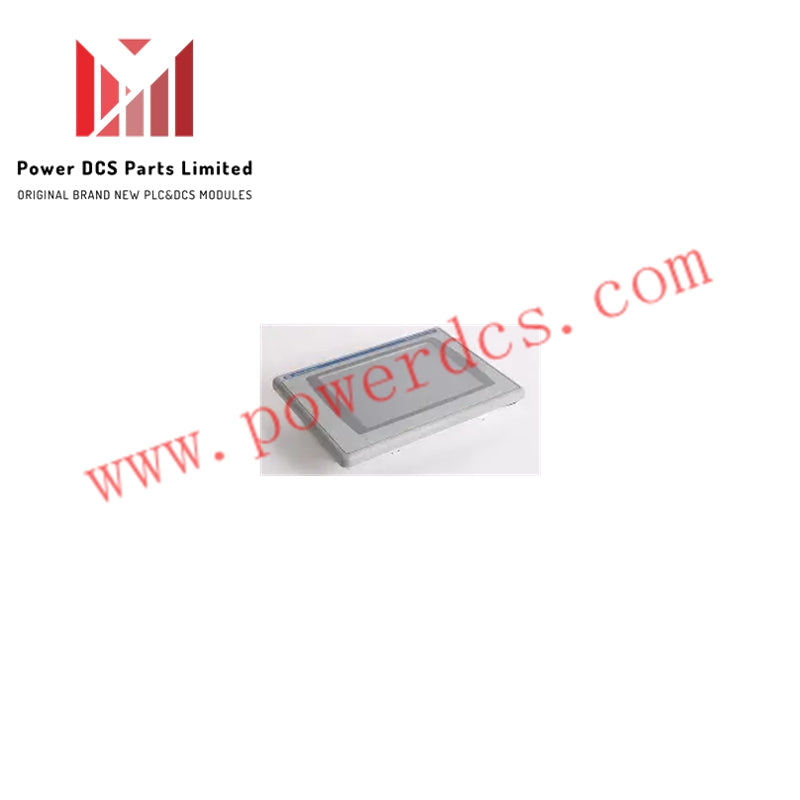

The 2711PC-T10C4D1 is an Allen-Bradley PanelView Plus 1000 Compact Operator Terminal. It provides a 10.4-inch color TFT display with touch input for intuitive system control. The terminal supports Ethernet, RS-232, and two USB host ports for versatile connectivity.

Designed for compact applications, this operator terminal operates on an 18–32VDC power supply. Its dimensions are 9.77 × 12.97 × 2.18 inches, and it features a NEMA/UL Type 12, 13, 4X, and IEC IP54/IP65 enclosure for indoor industrial environments.

Technical Specifications

• Display Size: 10.4 inches, color active-matrix TFT

• Display Resolution: 640 × 480, 18-bit color graphics

• Touch Interface: Analog resistive touchscreen

• Backlight: CCFL, 50,000 hours minimum at 25°C, field replaceable

• Display Area: 211 × 158 mm (8.3 × 6.2 in.)

• Internal Memory: 25 MB Flash, 512 MB nonvolatile memory, 512 MB RAM

• Communication Ports: Ethernet, RS-232, 2 USB host

• Input Voltage: 18–32VDC, nominal 24VDC

• Enclosure Type: NEMA/UL Type 12, 13, 4X; IEC IP54, IP65

• Dimensions: 9.77 × 12.97 × 2.18 inches

• Lifecycle Status: End of Life

Key Features

• Compact Design: Ideal for cost-effective and space-constrained applications

• Graphical Display: Supports color-coded animations and status visualization

• Flexible Connectivity: Enables Ethernet, RS-232, and USB communications

• Customizable Interface: Allows user-defined color codes and screen layouts

• Durable Construction: Enclosure and backlight ensure long-term reliability

• Simple Integration: Easily integrates into existing PanelView Plus systems

Applications

The 2711PC-T10C4D1 is suited for:

• Simple to medium industrial automation applications

• Systems with relatively fixed designs or minor revision requirements

• Process monitoring and operator control in manufacturing environments

• Integration with existing PanelView Plus 6 Compact systems

• Applications requiring cost-effective operator terminal solutions
