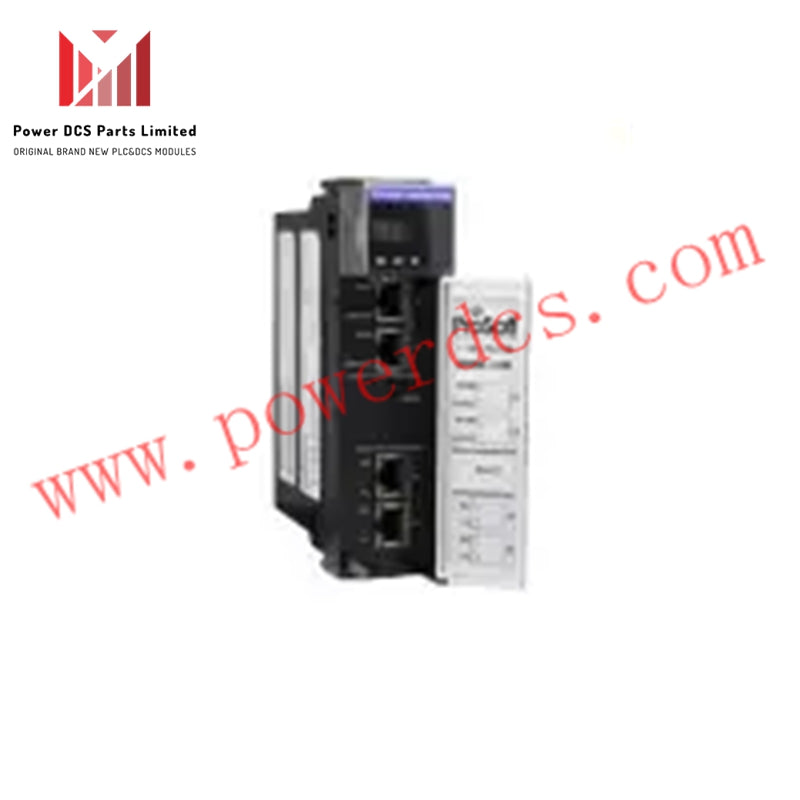

Allen-Bradley MVI56-101M ControlLogix Master Network Interface Module

Overview

The Allen-Bradley MVI56-101M is a high-performance Master Network Interface Module built for advanced communication within ControlLogix architectures. It efficiently manages complex network operations through two independent master ports and supports concurrent sessions for seamless data exchange. Designed for both local and remote racks, this module ensures robust communication and reliable data flow in demanding automation environments.

Key Features

The MVI56-101M integrates easily with ControlLogix systems, using ladder logic for data transfers to optimize control and monitoring processes. Its compact design fits into a single slot, making it ideal for installations with limited rack space. The dual master ports enable communication with multiple control stations, supporting up to 32 sessions simultaneously for scalable network configurations.

Technical Specifications

Performance and Reliability

The MVI56-101M ensures fast and accurate data exchange between control stations through its ladder logic-based communication. It efficiently manages high volumes of commands, allowing up to 1000 control operations while maintaining low backplane current consumption. The sturdy 3.00 lbs module structure supports long-term reliability, making it ideal for continuous industrial operation.

Integration and Application

This module provides flexible deployment across various automation networks, integrating seamlessly with ControlLogix systems. Its two master ports support independent communication channels, improving throughput and reducing data bottlenecks. Whether used in process control, manufacturing, or energy management, the MVI56-101M delivers consistent and efficient data performance.

FAQs

Q1: Is the Allen-Bradley MVI56-101M brand new and original?
Yes, all our MVI56-101M modules are 100% brand new, original, and factory-sealed.

Q2: How fast can you deliver the MVI56-101M?
We ship within 3 days to 2 weeks, depending on order size and logistics availability via DHL, FedEx, or UPS.

Q3: What is the power consumption of the MVI56-101M?
The module consumes 800 mA @ 5V DC through the ControlLogix backplane.

Q4: Can the MVI56-101M operate with remote racks?
Yes, it supports both local and remote rack configurations, ensuring flexible system integration.

Q5: What if the product has a quality issue?
We offer a 30-day return policy for any verified quality issues.
