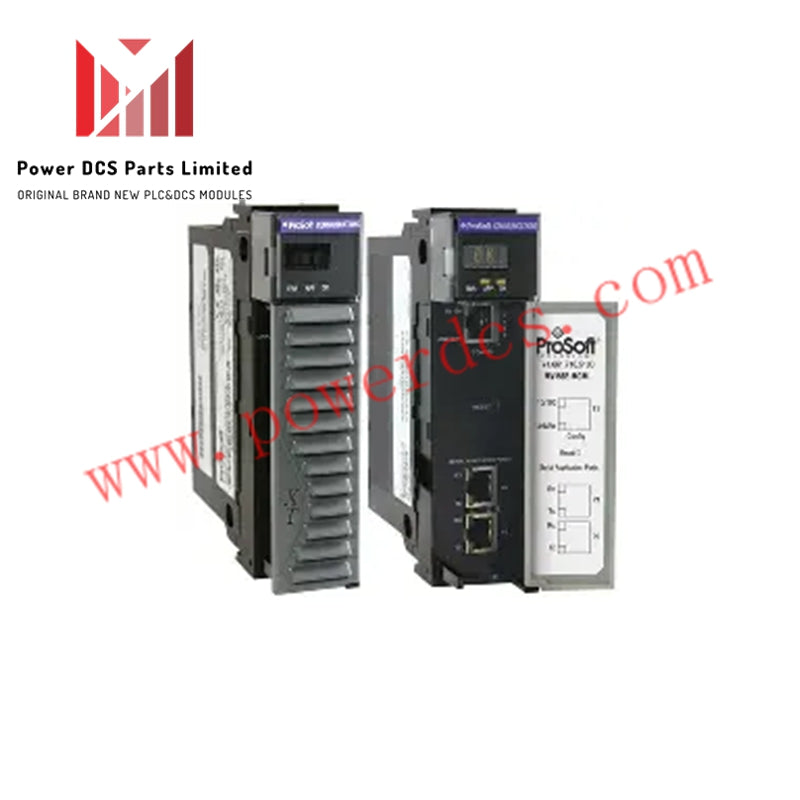

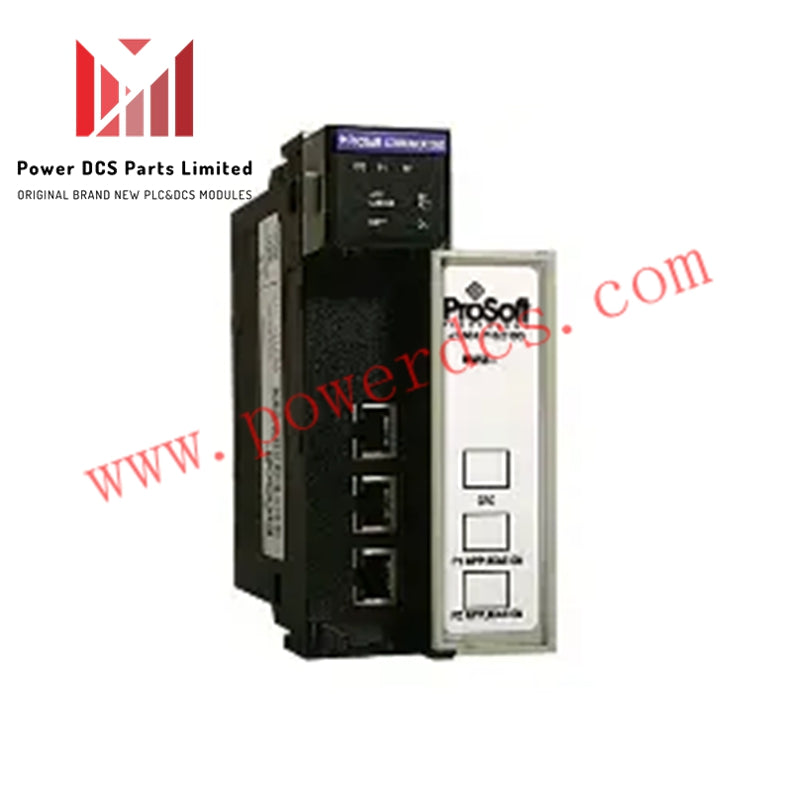

Allen-Bradley MVI56-MCM Industrial Communication Module

The AB MVI56-MCM is a high-performance industrial communication module designed for seamless integration with ControlLogix systems. It provides reliable data transmission and configuration capabilities, enabling efficient monitoring and diagnostics.

Key Specifications:

• Brand: AB

• Model: MVI56-MCM

• Operating Voltage: 220 V

• Output Frequency: 50 kHz

• Certification: Certified Product

• Series: MVI56 Series

• Item Number: D061-9320

• Minimum Order Quantity: 1

Overview:
The AB MVI56-MCM Module is a vital component in industrial automation systems, offering robust communication capabilities. It supports multiple ENBT/CNBT links to connect with MVI56E-MCMR modules installed in remote chassis, enabling easy configuration and diagnostics. This allows for efficient system monitoring and management from a distance.

Designed with backward compatibility in mind, the MVI56-MCM is fully compatible with previous versions of MVI56-MCM modules, making it ideal for upgrading existing systems. Its single-slot design allows for easy integration into 1756 ControlLogix® backplanes, ensuring seamless operation with existing infrastructure.

The module features a 10/100 MB Ethernet port for network configuration and diagnostics, with automatic cable crossover detection to simplify setup. It also supports user-defined module data memory mapping of up to 5000 16-bit registers, providing flexibility to customize system performance.

Equipped with a 4-character scrolling alphanumeric LED display, the AB MVI56-MCM delivers clear status and diagnostic information in plain English, enabling quick identification and resolution of issues.

Furthermore, the module supports CIPconnect®-enabled network configuration and diagnostic monitoring using ControlLogix, enhancing the overall efficiency, reliability, and responsiveness of industrial automation systems.
