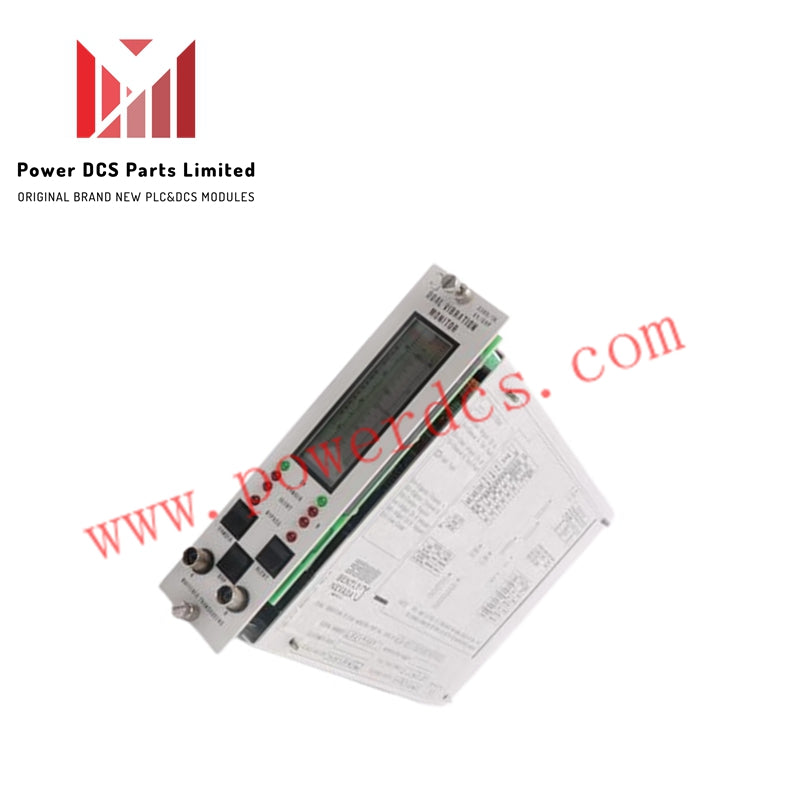

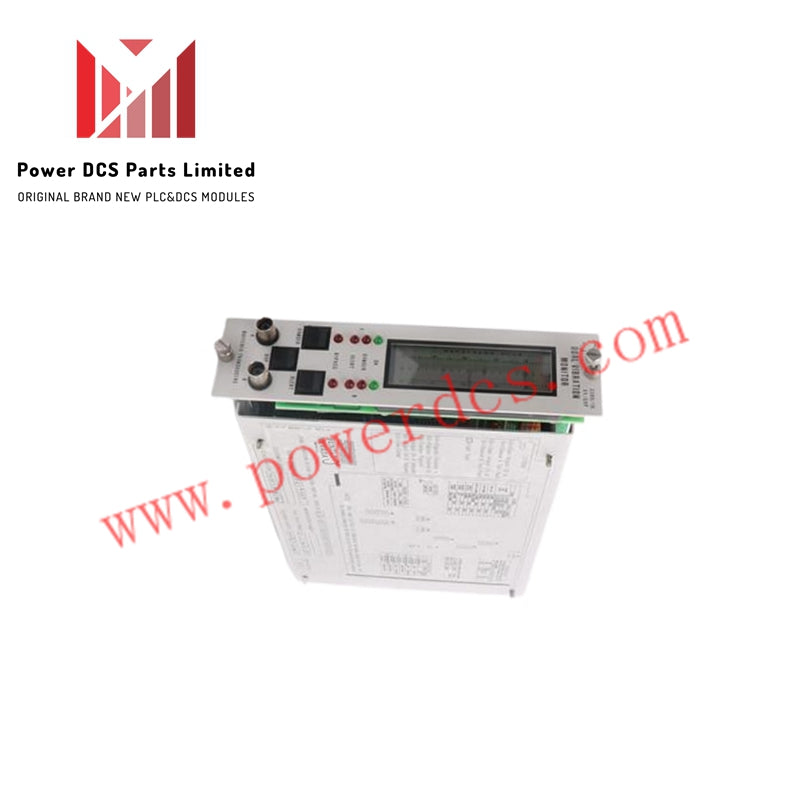

Bently Nevada 3300/16-02-01-01-00-00-02 Dual Vibration XY/GAP Monitor

Description

The Bently Nevada 3300/16-02-01-01-00-00-02 is a dual-channel vibration monitor designed to measure radial vibration and average shaft position. It provides continuous diagnostics for rotating machinery in industrial environments.

Specifications

• Model Number: 3300/16-02-01-01-00-00-02

• Type: Dual Vibration XY/Gap Monitor

• Input Channels: Two independent channels for X and Y-axis vibration

• Gap Monitoring: Average shaft position detection

• Frequency Range: 0.1 Hz to 100 kHz

• Power Supply: 24 VDC nominal

• Power Consumption: Approximately 2W

• Analog Outputs: 4–20 mA or 0–10 V for vibration and gap readings

• Relay Outputs: Configurable alarm relays

• Display: 4-character alphanumeric

• Operating Temperature: –40°C to +85°C

• Dimensions: Approx. 4.2 × 5.0 × 2.0 inches

• Weight: ~0.5 kg

• Country of Origin: USA

Features

• Dual-Channel Monitoring: Simultaneous measurement of radial vibration and shaft position

• Flexible Output Options: Supports both current and voltage analog signals

• Alarm Integration: Relay outputs for vibration and gap threshold alerts

• Wide Frequency Range: Captures low to high-frequency vibration signals

• Compact Display: Alphanumeric interface for quick status checks

• Industrial Durability: Operates reliably across extreme temperature conditions

• System Compatibility: Integrates with Bently Nevada protection and monitoring systems
